Project configuration
Operating Manual PSEN sc M 3.0/5.5 08-17
1005387-EN-05
| 37
} When the safety laser scanner is to be placed at a height of H>300mm, there is a risk of
creeping underneath the safety zone. This is to be taken into account in the risk assess-
ment, and if required additional protective measures must be taken.
[1]
[2]
[3]

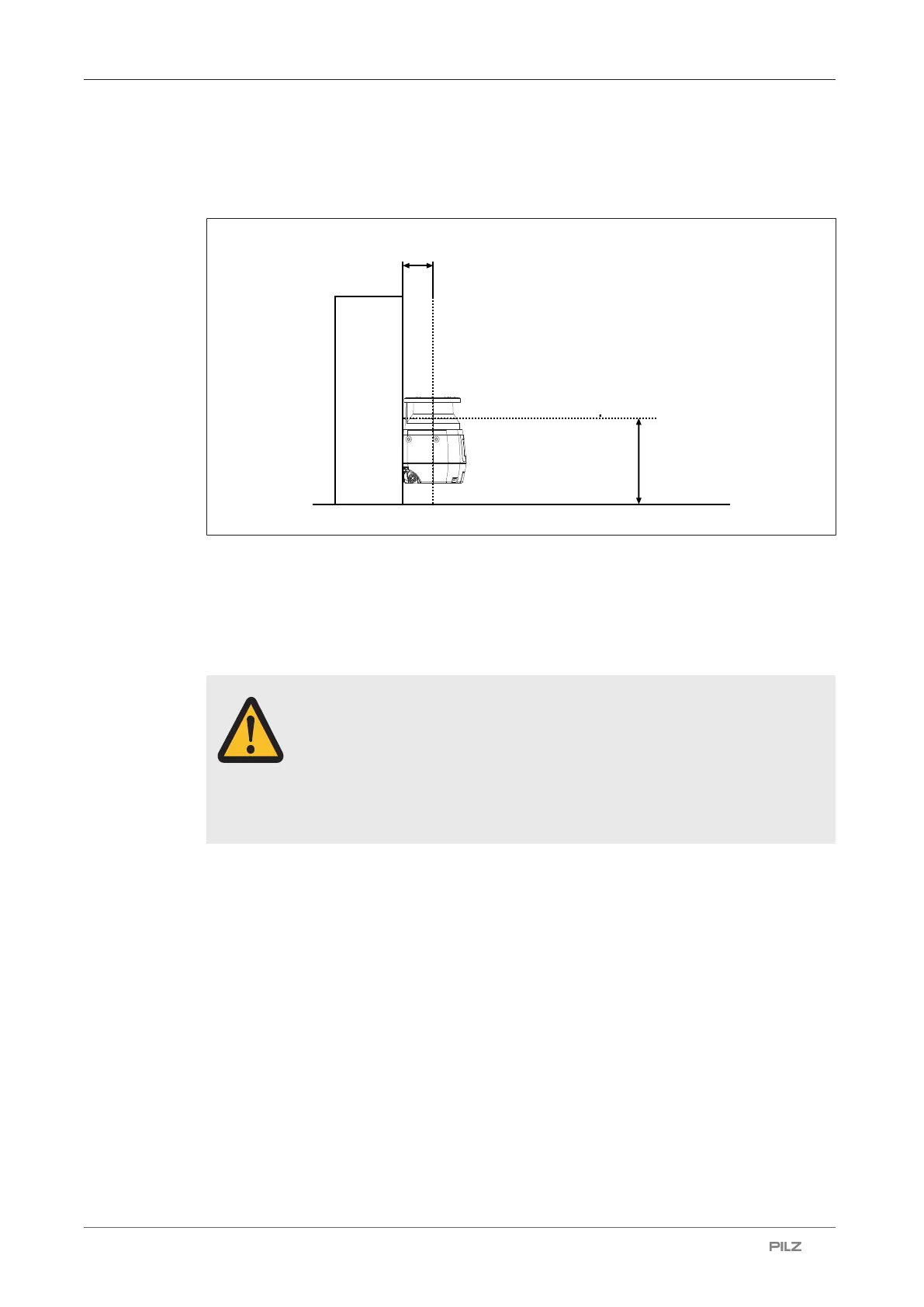

Legend
[1] Opening between the origin of the laser beam of the safety laser scanner and the
mounting area
[2] Scanning plane
[3] Height H between scanning plane and base area
CAUTION!
Risk of injury due to insufficient safeguard
Reaching into the opening between safety laser scanner and mounting area
can lead to injuries.
– Prevent reaching into the opening by using a suitable safeguard.
