GM-8027ZT/WL
1
2
1
1
1 1
1
1
4 4
4
3
3
1 1 1
1 1 1
2 2
3
4
Notes)
Remove the Heat Sink without removing the Cover
in Fig.1.
-

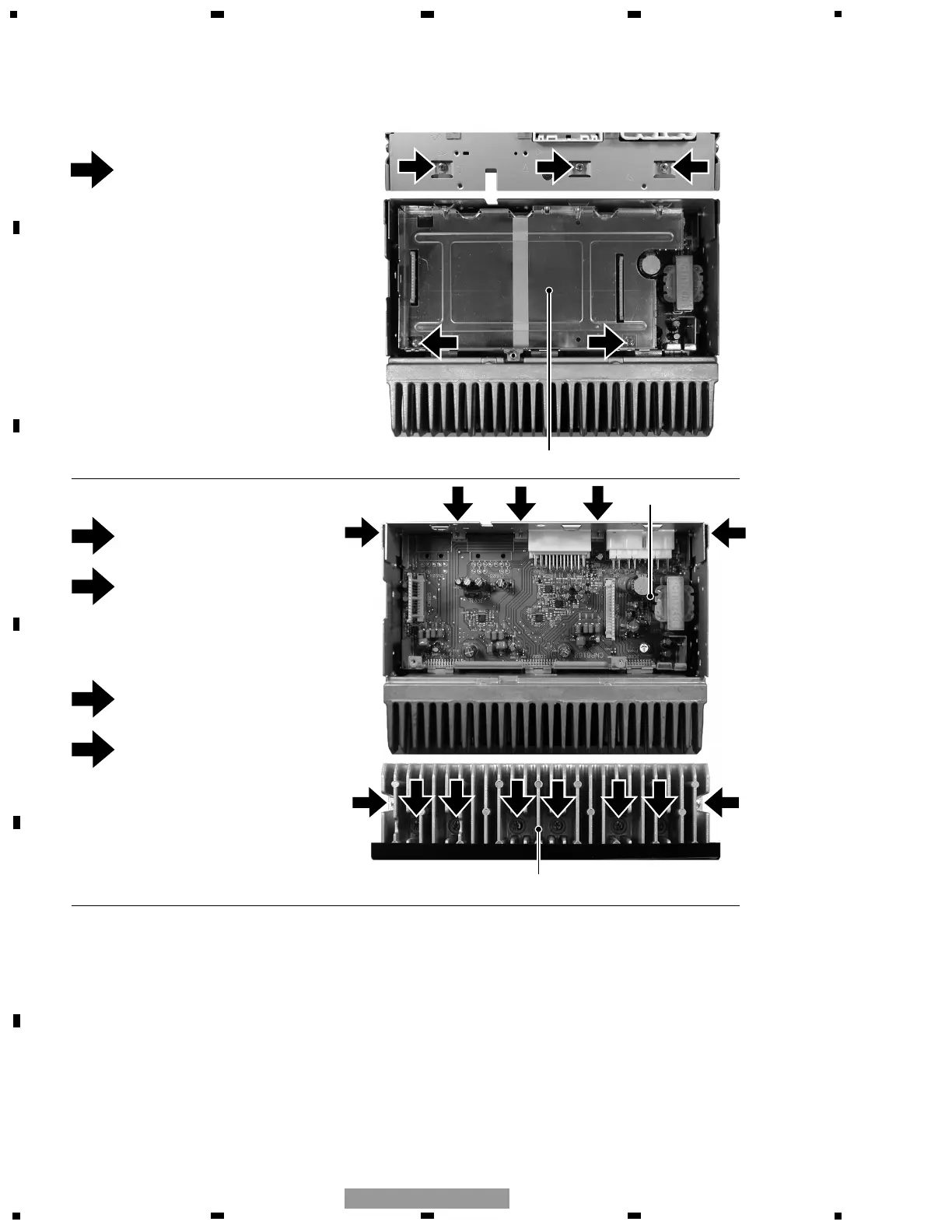

Removing the Shield Case (Fig.4)
Remove the five screws and then remove
the Shield Case.
-
Removing the Amp Unit (Fig.5)
Remove the six screws.
Remove the two screws and then remove
the Heat Sink.
Remove the two screws.
Remove the three screws and then
remove the Amp Unit.
Fig.4Shield Case
Fig.5
Heat Sink
Amp Unit
