CT-W208R
8. PANEL FACILITIES AND SPECIFICATIONS

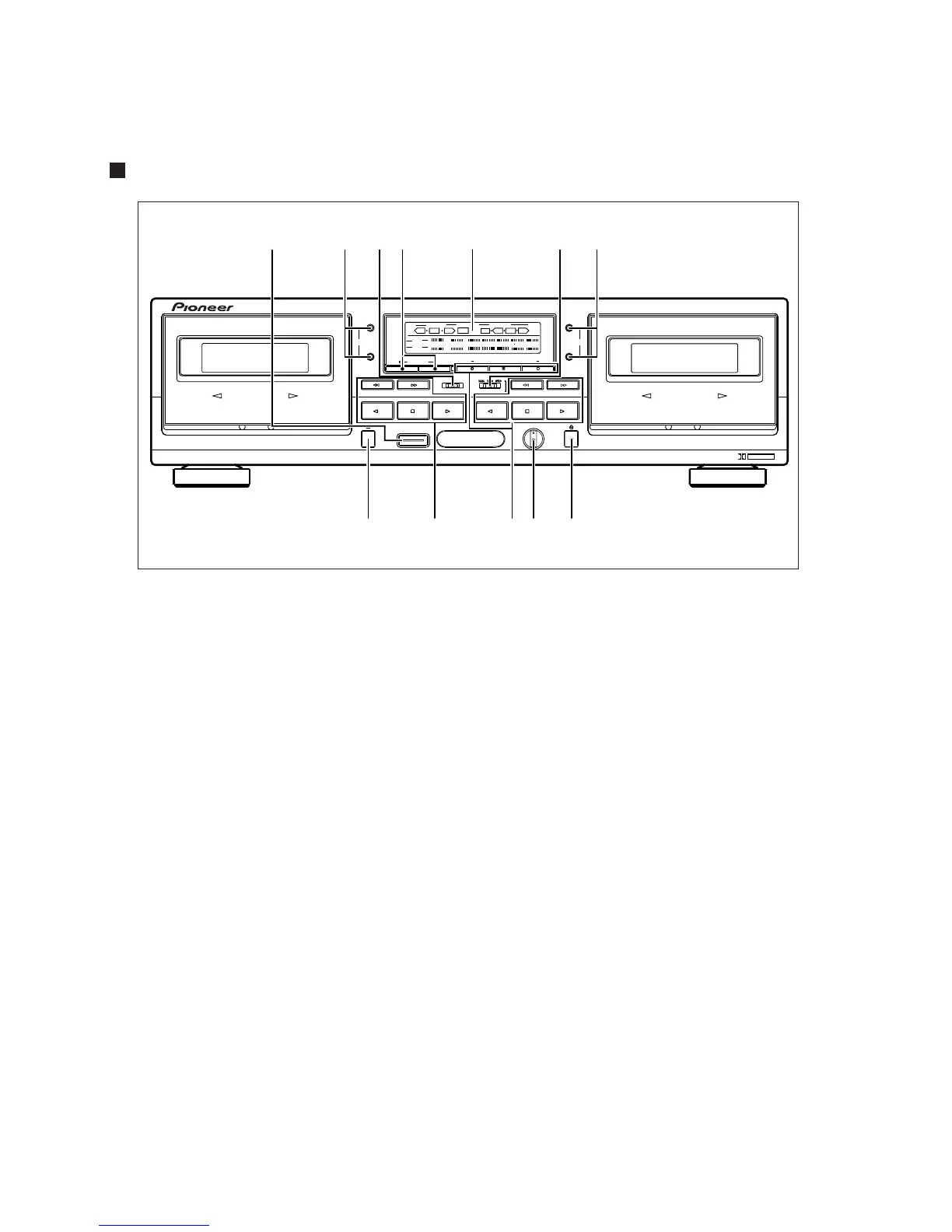

PANEL FACILITIES
AUTO REVERSE
Auto Tape Selector
HIGH SPEED COPY SYSTEM / PLAYBACK
Auto Tape Selector
HIGH SPEED COPY SYSTEM / REC & PLAY
STEREO DOUBLE CASSETTE DECK
NORMAL HIGH
POWER
— OFF _ ON
HIGH SPEED
COPY SYSYEM
MIN MAX
REC
LEVEL
REV MODE
RELAY/SKIP
COPY I II
3
DOLBY B-C NR
Ωı¿ˆ<?˘B
DECK II DECK I
Î
DOLBY NR
OFFBC
DECK II
MS
MS
+
—
+
—
DECK I
AUTO REVERSE
DECK II
PLAY
-15
-9 -3
-3
0
-00
RIGHT
LEFT
COPY
DECK IIDECK I
dB
Ÿ
FWD
REV
PLAY
FWD
REV
REC
LEVEL
45
6
321
7
90=-8
0 DECK II operation buttons
2 : Reverse playback
3 : Forward playback
1 : Fast reverse
7 : Stop
¡ : Fast forward
• : Recording mute
8 : Pause
÷ : Recording
- Recording level control (REC LEVEL)
= DECK II eject button (0)
÷ If the tape is moving (recording, playback, tape
winding, etc.), press the stop (7) button before
pressing this button.
NOTE:
If the power is turned off while the tape is moving,
the cassette door may remain locked. In this case,
turn the power on before pressing the eject (0)
button.
1 POWER switch
2 DECK I MS(music search) +,– buttons
3 DOLBY* NR switch (B/OFF/C)
*
÷ Dolby noise reduction and manufactured under
license from Dolby Laboratories Licensing
Corporation.
÷ “DOLBY”, the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation.
4 Synchro copy buttons (COPY I 3 II)
NORMAL: Normal speed copy
HIGH : Double speed copy
5 Function display
6 Reverse mode switch (REV MODE RELAY/SKIP)
7 DECK II MS(music search) +,– buttons
8 DECK I eject button (0)
÷ If the tape is moving (playback, tape winding,
etc.), press the stop (7) button before pressing
this button.
NOTE:
If the power is turned off while the tape is moving,
the cassette door may remain locked. In this case,
turn the power on before pressing the eject (0)
button.
9 Deck I operation buttons
2 : Reverse playback
3 : Forward playback
1 : Fast reverse
7 : Stop
¡ : Fast forward

Pioneer CT-W208R Specifications

Audio System

wow and flutter	0.09% (WRMS)
wow and flutter (DIN)	±0.19%
frequency response (TYPE IV tape)	20 to 16, 500 Hz
frequency response (TYPE II tape)	20 to 16, 000 Hz
frequency response (TYPE I tape)	20 to 16, 000 Hz
signal-to-noise ratio (Dolby NR OFF)	More than 57 dB
noise reduction effect (Dolby B-type NR ON)	More than 10 dB (at 5 kHz)
noise reduction effect (Dolby C-type NR ON)	More than 19 dB (at 5 kHz)
harmonic distortion	No more than 0.8% (at –4 dB: 160 nwb/m)

Power

power requirements (U.K. and Australian models)	AC 230 ~ 240 volts, 50/60 Hz
power requirements (U.S. model)	AC 120 V, 60 Hz
power consumption	16 W

Weight and Dimensions

dimensions	420 (W) x 125 (H) x 250 (D) mm
dimensions (inches)	16 - 9/16 (W) x 4 - 7/8 (H) x 9 - 13/16 (D) in.
weight (U.K. and Australian models)	3.9 kg (8 lb 10 oz)
weight (U.S. model)	3.8 kg (8 lb 6 oz)
