Pioneer DJM-500 Service Manual

DJM-500

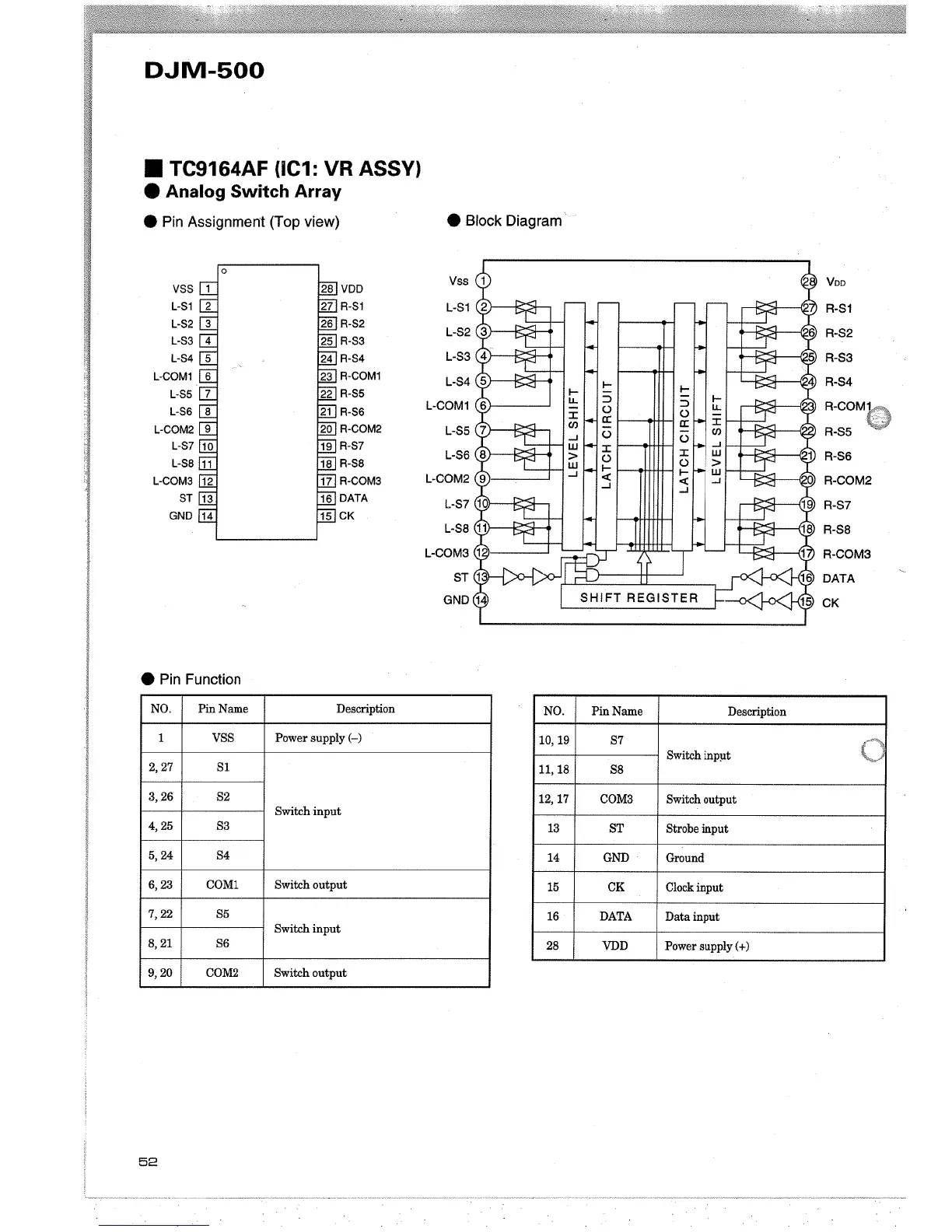

. TC9164AF (lC1: VR ASSV)
. Analog Switch Array
. Pin Assignment (Top view)
. Block Diagram
o
.__ I. .__
Vss
L-S1
L-S2
L-S3
L-S4
L-COM1
L-SS
L-S6
L-COM2
L-COM3 (1
. Pin Function
NO, Pin
Name
Descrption
1 VSS Power supply (-)
2,27 SI
3,26 S2
Switch input
4,25 S3
5,24 S4
6,23 COMI Switch output
7,22
S5
Switch input
8,21 S6
9,20 COM2 Switch output
52
VDD
R-S1
R-S2
R-S3
R-S4
R-COM
R-SS
R-S6
R-COM2
R-S7
R-S8
R-COM3
DATA
CK
NO.
Pin Name Description
10,19
S7
(J
Switch inp).t
11,18 S8
12,17
COM3 Switch output
13
ST
Strobe input
14
GND Ground
15 CK
Clock input
16 DATA
Data input
28 VDD
Power supply (+)

Pioneer DJM-500 Specifications

Power

power supply voltage	AC 120 V, 60 Hz
power consumption	41 W

Operating Environment

operating temperature	+5 °C to +35 °C
operating humidity	5 % to 85 %

Weight and Dimensions

weight	5.9 kg
external dimensions	320 (W) x 357.4 (D) x 107 (H) mm
