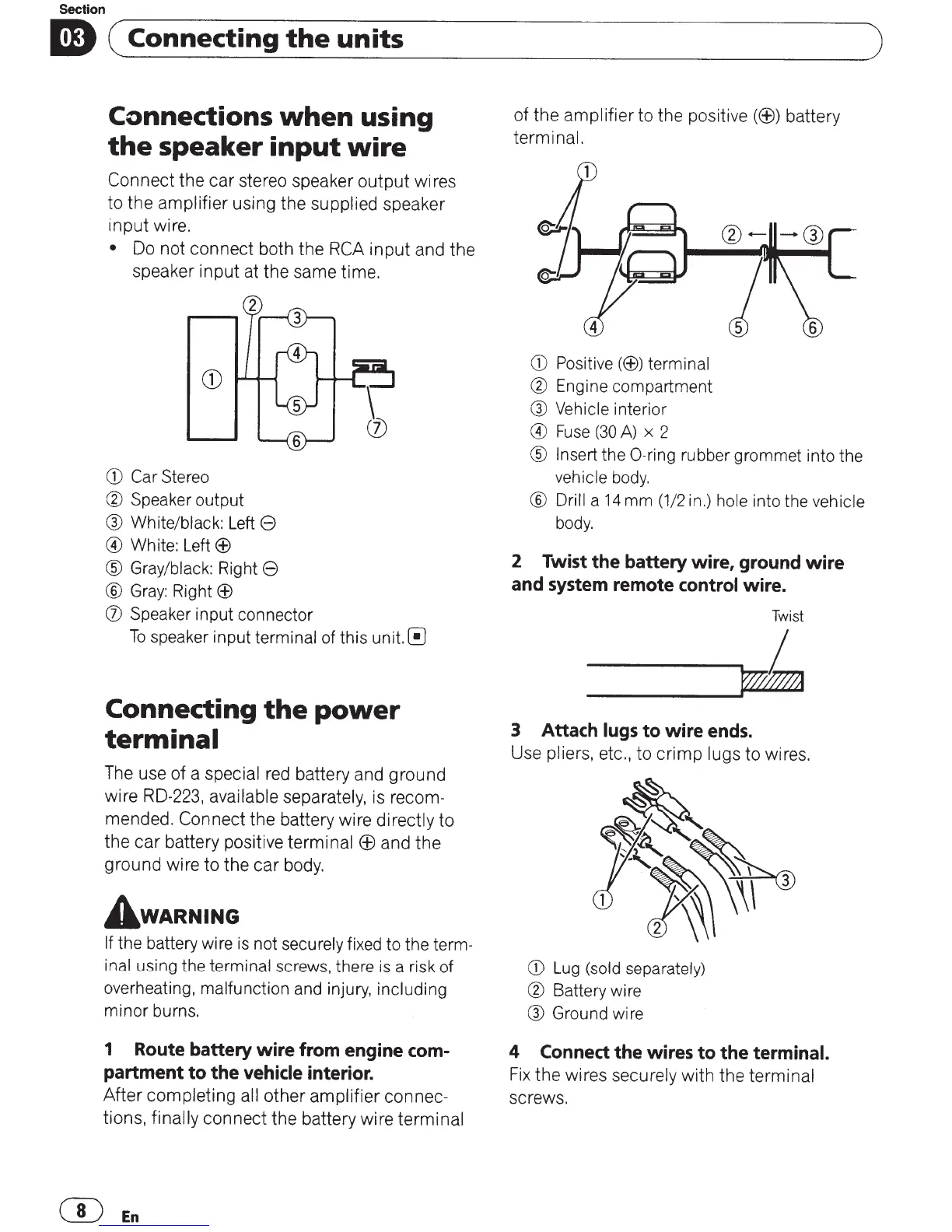

Section
liD
( Connecting
the
units
Connections
when
using
the
speaker
input
wire
Connect
the car stereo speaker
output
wires
to the
amplifier
using the supplied speaker
input
wire.
•
Do not connect both the
RCA
input
and the
speaker
input
at the same time.
CD
CD
Car
Stereo
®
Speaker output
G)
White/black:
Left
8
@
White:
Left<±>
®
Gray/black: Right
8
®
Gray:
Right
(f)
(f)
Speaker input connector
To
speaker input terminal of this unit.
0
Connecting
the
power
terminal
The use of a special red battery and
ground
wire RD-223, available separately, is recom-
mended.
Connect
the battery wire directly
to
the
car
battery positive terminal
(f)
and
the
ground
wire
to
the
car
body.
A wARNING
If
the battery wire
is
not securely fixed to the term-
inal using the terminal screws, there
is
a risk of
overheating, malfunction
and
injury, including
minor burns.
1 Route battery wire from engine com-
partment to the vehicle interior.
After
completing
all other
amplifier
connec-
tions, finally connect the battery wire terminal
(])En
of the
amplifier
to the positive
((f))
battery
terminal.
CD
Positive
((f))
terminal
® Engine compartment
G)
Vehicle interior
@
Fuse
(30
A)
x
2
®
Insert the 0-ring rubber grommet into the
vehicle
body.
®
Drill
a
14
mm
(1
/2 in.)
hole
into the vehicle
body.
2 Twist the battery wire, ground wire
and
system
remote
control
wire.
Twist
-------·
3 Attach
lugs
to wire
ends.
Use pliers, etc., to
crimp
lugs to wires.
CD
Lug
(sold separately)
®
Battery wire
G)
Ground wire
4
Connect
the wires to the
terminal.
Fix
the wires securely with the terminal
screws.
)
To Next Page
