Pioneer HTP-072 Service Manual

86
HTP-072
1
2 3 4
A
B
C
D
E
F
1
2 3 4

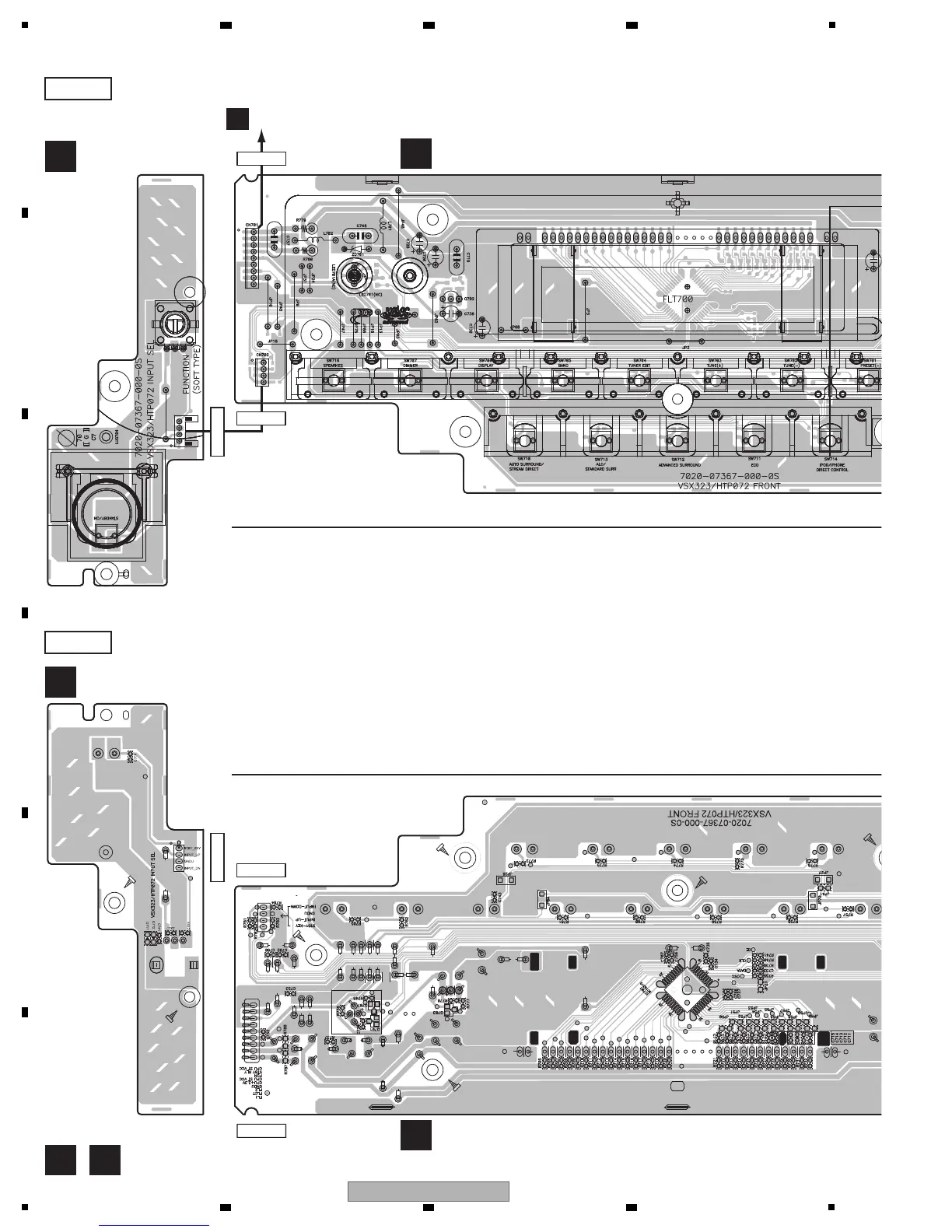

11.5 FRONT, INSEL, HP and FUSB ASSYS
9 PIN
FLBKT1
FLBKT2
1. STBY_KEY
2. INPUT_UP 3. GNDU
4. INPUT_DN
Pb
JP17
SW715
CP702
VEC702
F G
F
FRONT ASSY
F
FRONT ASSY
G
INSEL ASSY
G
INSEL ASSY
SIDE A
SIDE B
K
CP701
CN701
CP702
CN702
Q702
CN701
CP702
CN702
Q707 Q701 Q703 IC701

Pioneer HTP-072 Specifications

General

Disc types supported	No
Optical disc player type	-
Deep color support	Yes
Apple docking compatibility	iPad, iPhone, iPod
Video formats supported	Not supported
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby Pro Logic II, Dolby TrueHD, DTS, DTS 96/24, DTS Neo:6, DTS-HD Master Audio
RMS rated power	600 W
Audio output channels	5.1 channels
Supported radio bands	AM, FM
Front speakers RMS power	100 W
Product color	Black
HDMI in	4
USB version	2.0
Composite video in	2
Number of HDMI outputs	1
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.45 W
Power consumption (typical)	185 W

Weight and Dimensions

Main unit weight	7500 g
Subwoofer weight	5300 g
Center speaker weight	1000 g
Satellite speaker weight	600 g
Main unit dimensions (WxDxH)	435 x 362.5 x 168 mm
Subwoofer dimensions (WxDxH)	230 x 358 x 418 mm
Front speaker dimensions (WxDxH)	106 x 106 x 116 mm
Center speaker dimensions (WxDxH)	270 x 106 x 100 mm
