2. STAND
(1)SCREW M6*422p
(2)STAND
1. Outlined method of disassembly
(Caution) 1. Before disassembly, turn power off the main unit and pull outthe power plug from the wall outlet.
2. Use a screwdriver with a fitting size. Otherwise, the screw threads may be damaged.
3. Reassembly can be carried out in the reverse order for disassembly. Refer to the disassembly procedures and
forward reassembly in the reverse order.
4. The order for taking out the parts (or components) is indicated by the foregoing numeral that is attached to the name
of each part.
5. The wire connector symbol is indicated by two digits of Marking&&. Read CN-&&when examining the table of parts.
6. Class A or Class B in the text is applicable to the models specified below.
CLASS A: PDP-424MV-F1 CLASS B: PDP-424MV, PDP-42MVE
SET
(with a STAND)
BACK COVER
FRONT PANEL
F-BRACKET(IN)
STAND
CHASSIS ASSY
TERMINAL PANEL M SUB ASSY
TERMINAL PANEL S
PWR PWB
232C PWB
AUDIO PWB
MAIN PWB
POWER UNIT
TERMINAL PANEL B SUB ASSY
COVER SW
PDP
FILTER
SENB PWB
SENC PWB
SEND PWB
FAN
Modifications of
a STAND *

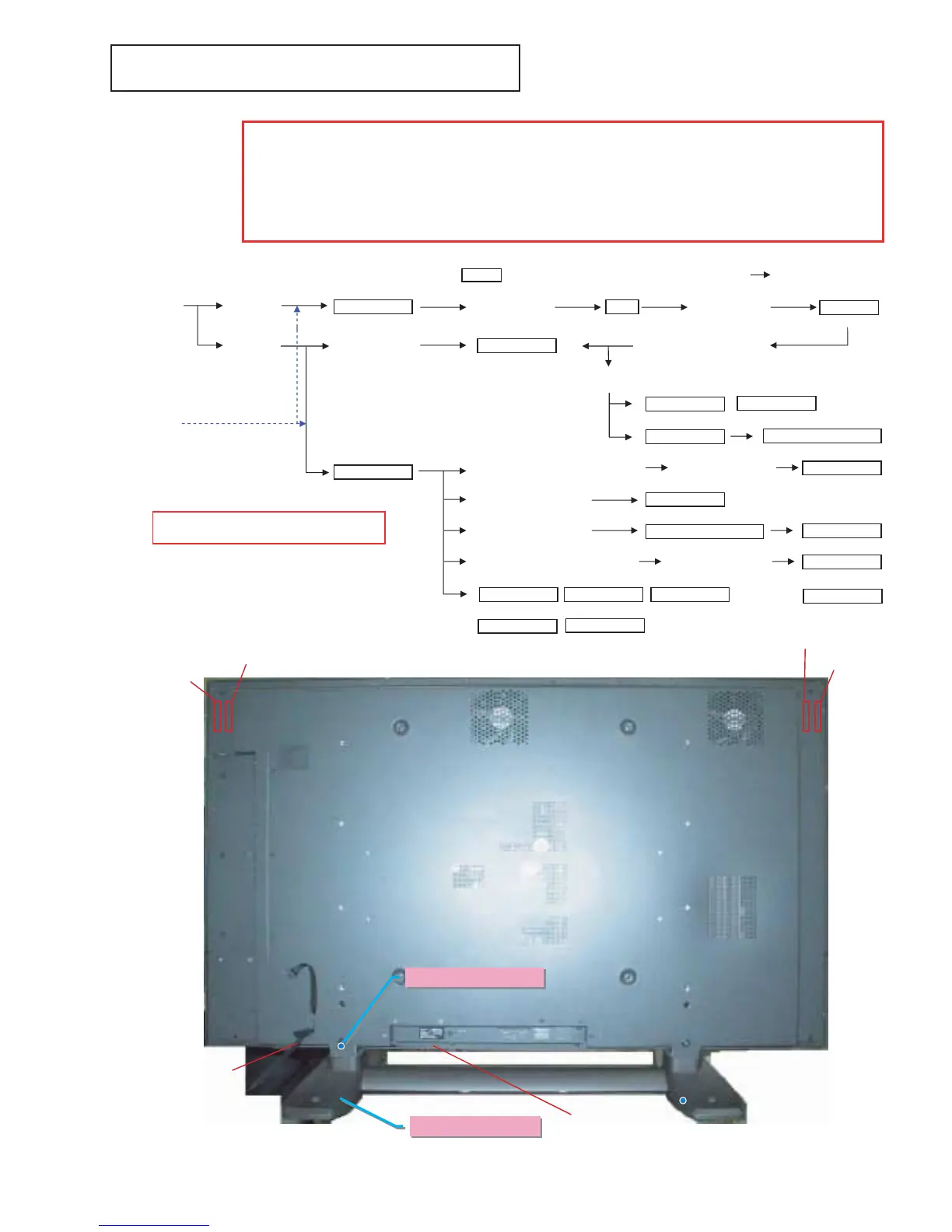

The outlined procedures for the disassembly of the major parts are shown below (disassembled in the direction of ).
In regard to the details of disassembly, cautions, etc.,refer to the method of replacement for each part [page indicated in ( )].
AC INLET
BACK COVER
(P10-2)
(P10-11)
(P10-3)
(P10-3)
(P10-4)
(P10-5)
(P10-6)
(P10-6 10-7)
(P10-10)
Modifications of
a BACK COVER*
(P10-12)
(P10-20)
(P10-13)
(P10-15)
(P10-16)
(P10-17)
(P10-14)
(P10-15)
(P10-16)
(P10-18)
F-BRACKET(OUT) ASSY
(P10-8)
LED PWB
CTL PWB
CONTROL BUTTON
COVER CTL
POWER BUTTON
(P10-19)
(P10-20)
(P10-20)
(P10-20)
(P10-18)
(P10-16)
(P10-9) (P10-9)
(P10-9)
(P10-9)
TERMINAL PANEL B
(P10-18)
TERMINAL PANEL M
(P10-14)
F-BRACKET B(OUT)
(P10-9)
SET
(without a STAND)
* Modification means that the screws
are mounted or removed.
M70 (E)
M62 EARTH
LABEL (JAPANES)
M70 (E)
M12 Band
(L200)
M69 : Caution L (J)
M69 : Caution L (J)
10-1
METHOD OF DISASSEMBLY
