Preparation05
16
En

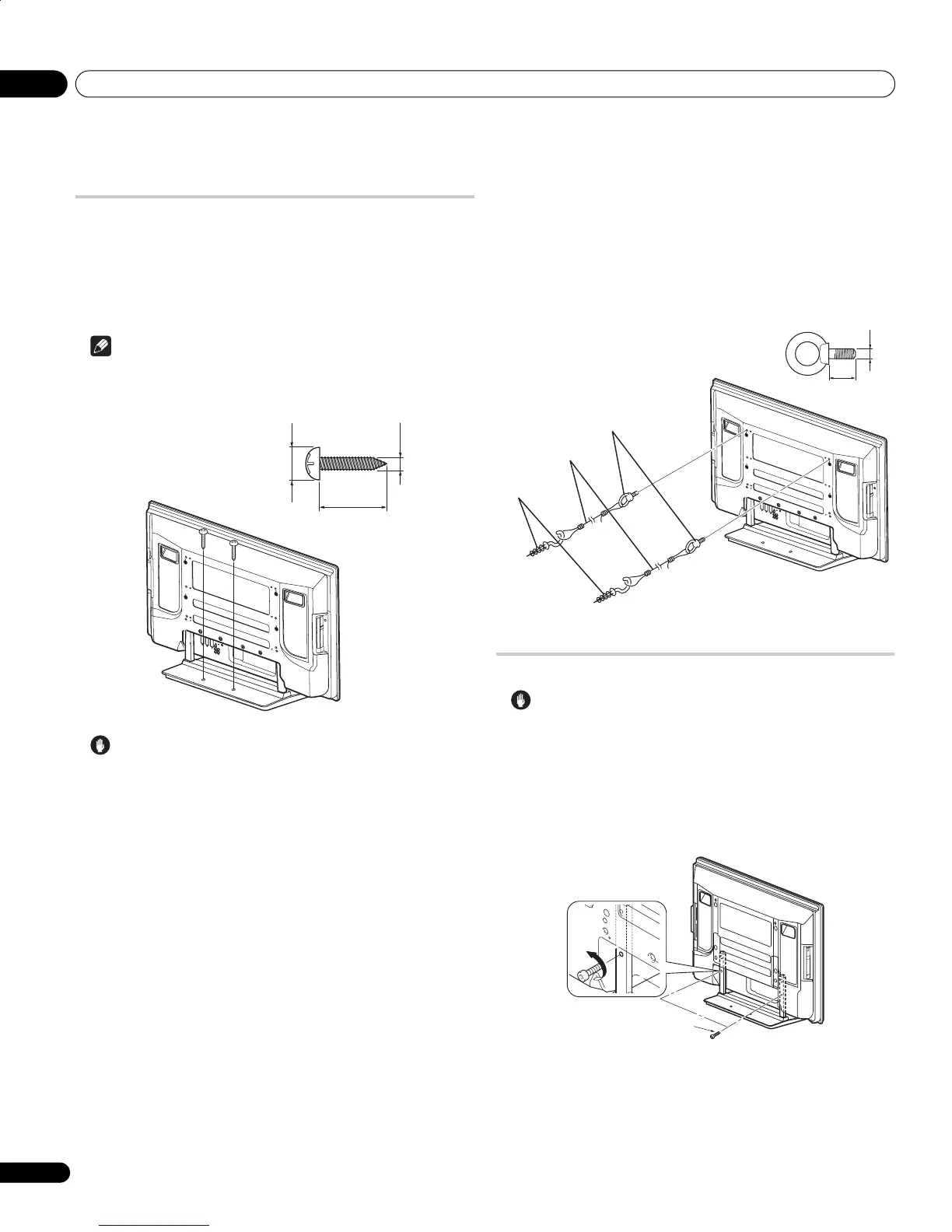

Preventing the plasma television from falling
over
After installing the stand, be sure to take special care to ensure that
the plasma television will not fall over.
Stabilizing on a table or floor
Stabilize the plasma television as shown in the diagram using screws
that are available on the market.
Note
• To stabilize the plasma television on a table or on the floor, use
screws that have a nominal diameter of 6 mm and that are at least
20 mm long.
Caution
• A table or an area of the floor with adequate strength should
always be used to support the plasma television. Failure to do so
could result in personal injury and physical damage.
• When installing the plasma television, please take the necessary
safety measures to prevent it from falling or overturning in case of
emergencies, such as earthquakes, or of accidents.
• If you do not take these precautions, the plasma television could
fall down and cause injury.
• The screws, hooks, chains and other fittings that you use to secure
the plasma television to prevent it from overturning will vary
according to the composition and thickness of the surface to
which it will be attached.
• Select the appropriate screws, hooks, chains, and other fittings
after first inspecting the surface carefully to determine its
thickness and composition and after consulting a professional
installer if necessary.
Using a wall for stabilization
1 Attach falling prevention bolts (hooks) to the plasma
television.
2 Use strong cords to stabilize it appropriately and firmly to a
wall, pillar, or other sturdy element.
Perform this work in the same way on the left and right sides.
Use hooks, cords and fittings that are available on the market.
Recommended hook: Nominal diameter 8 mm, length 12 mm to
15 mm
Attaching/detaching the Pioneer stand
Caution
• The weight of a 42 inch plasma television is about 32.1 kg
(70.8 lbs.), it has little depth, and is unstable. Therefore, at least two
people must assemble and install it.
Detaching the stand
1 Loosen and remove the two installation bolts (1) using the
supplied hexagonal wrench.
20 mm min.
6 mm
9 mm to 15 mm
M8
1. Hook
2. Cord
Fitting
12 mm to 15 mm
Installation bolts (1)
(M8 x 30 mm: silver)
PDP4270XD_En.book Page 16 Friday, June 16, 2006 5:32 PM
To Next Page
