Pioneer PDP-427CMX - Page 13

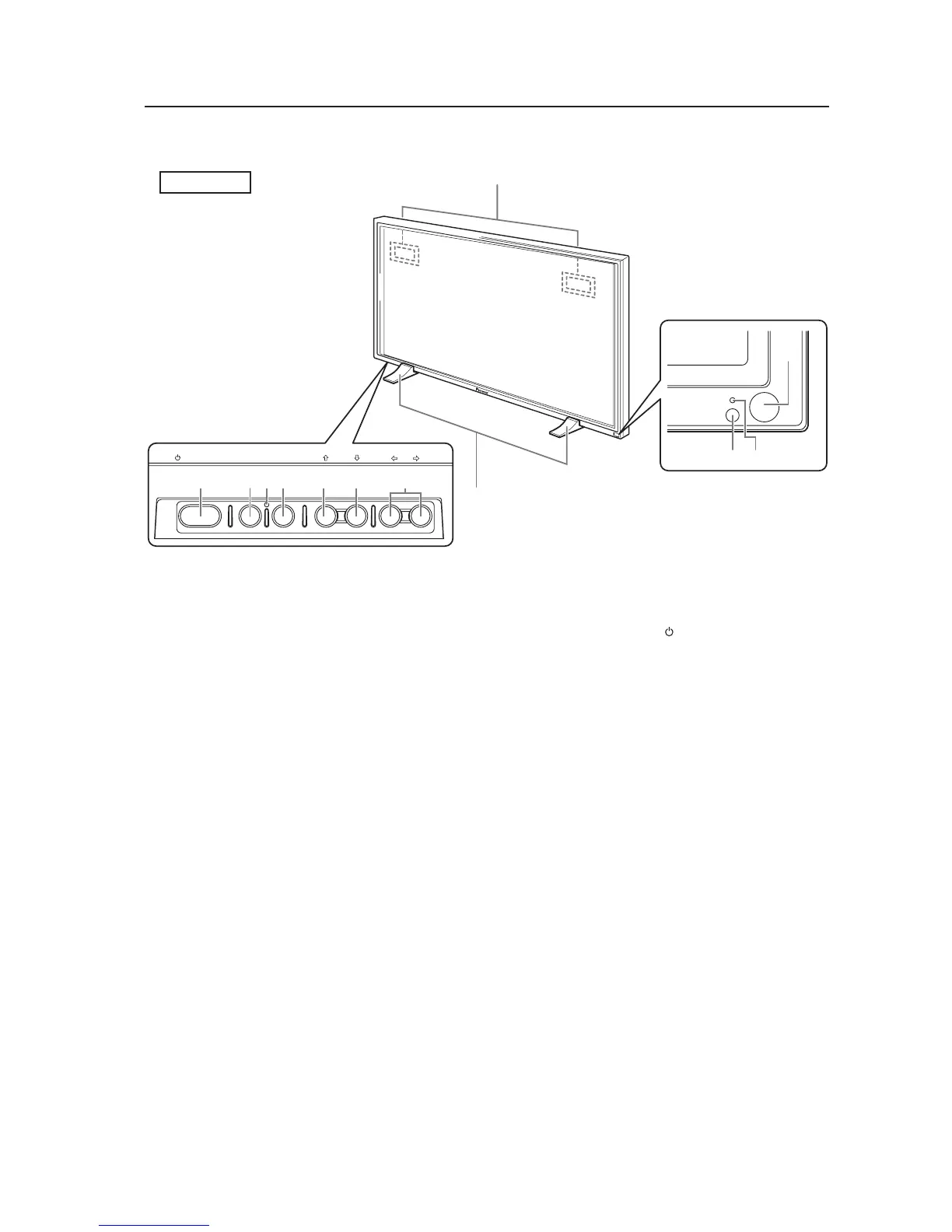

PDP-427CMX
13
5678
56
7
8
C
D
F
A
B
E
F1001,1003 OTL1046
CN1001 CONNECTOR 8P AKM1279
RESISTORS
R1003 RS1/8SQ0R0J
Other Resistors RS1/10SR###J
CAPACITORS
C1002 CKSRYB104K25
C1003 CCSRCH151J50
C1005 CCSRCH181J50
SENC ASSY (AWW1218)
SEMICONDUCTORS
>
IC1101 LM75BIMX-3
MISCELLANEOUS
F1101-1103 OTL1046
CN1101 CONNECTOR 4P AKM1275
RESISTORS
All Resistors RS1/10SR###J
CAPACITORS
C1102 CKSRYB104K25
C1103 CCSRCH391J50
C1105 CCSRCH271J50
SEND ASSY (AWW1219)
SEMICONDUCTORS
>
IC1201 LM75BIMX-3
MISCELLANEOUS
F1201,1203 OTL1046
CN1201 CONNECTOR 8P AKM1279
RESISTORS
R1203 RS1/8SQ0R0J
Other Resistors RS1/10SR###J
CAPACITORS
C1202 CKSRYB104K25
C1203 CCSRCH391J50
C1205 CCSRCH181J50
AUDIO ASSY (AWW1237)
SEMICONDUCTORS
IC3001 R2S15900
>
IC3002 M61571AFP
>
IC3004 NJM78M09DL1A
Q3003,3005,3006,3008 2SA1576A
Q3004,3009 2SC4081
Q3007 DTC143ZUA
D3001 DAN217U
>
D3003-3006 RB160M-40
D3007 RD10S(B3)
MISCELLANEOUS
L3001-3004 ATH1189
Mark No. Description Part No.
L3005,3006 BTH1102
F3001-3003 OTL1046
F3006-3009 BTX1041
KN3001-3003 EARTH METAL FITTING VNF1109
>
CN3001 SPEAKER TERMINAL 4-P AKE1062
CN3003 CONNECTOR 6P AKM1277
CN3004 CONNECTOR 9P AKM1280
RESISTORS
R3005,3006 RS1/8SQ221J
R3014,3019 RS1/10SR3902F
R3015,3018 RS1/10SR1502F
R3023 ACN1243
R3025-3027,3047-3049 RS1/8SQ0R0J
R3035-3038 RS1/16S563J
R3054,3056,3059,3060 RS1/8SQ103J
R3061-3066 RS1/8SQ0R0J
Other Resistors RS1/10SR###J
CAPACITORS
C3001,3057 ACH1430
C3002,3015,3030,3031 CKSQYB105K16
C3008 CKSRYB153K50
C3016,3019,3026,3029 CCSRCH561J50
C3017,3018,3027,3028 CCSRCH560J50
C3020,3025 CCSRCH680J50
C3021 CKSRYB224K16
C3022 CEHVKW100M16
C3023 CEHVKW470M16
C3024,3032,3034,3038 CKSRYB104K25
C3033,3039,3054 ACH1464
C3036,3037,3042 CKSQYB105K16
C3040,3055,3056,3063 CKSRYB104K25
C3043,3044,3048,3049 CFTLA474J50
C3045,3046,3051,3052 ACG1130
>
C3066-3069 CFTLA104J50
C3070 CCSRCH102J50
C3071 CKSRYB104K25
C3072 CEHVKW220M16
C3074,3075 ACG1132
C3076,3077 ACG1133
C3078 ACH1463
C3082 CKSRYB103K50
C3083,3084 CKSRYB104K50
COMMSLOT ASSY (AWW1221)
SEMICONDUCTORS
IC2001,2002 MC74VHCT132ADT
IC2003 MAX3222IPER
IC2004,2005 TC74VHC00FT
IC2006,2007 TC74VHC125FT
D2001-2010,2022,2023 UDZS16(B)
D2011-2014 DAN217U
D2021 UDZS3R6(B)
MISCELLANEOUS
JA2002,2003 6PIN MINI-DIN JACK AKP1254
CN2001 9P D-SUB SOCKET AKP1213
2001 VNE1949
RESISTORS
Mark No. Description Part No.
