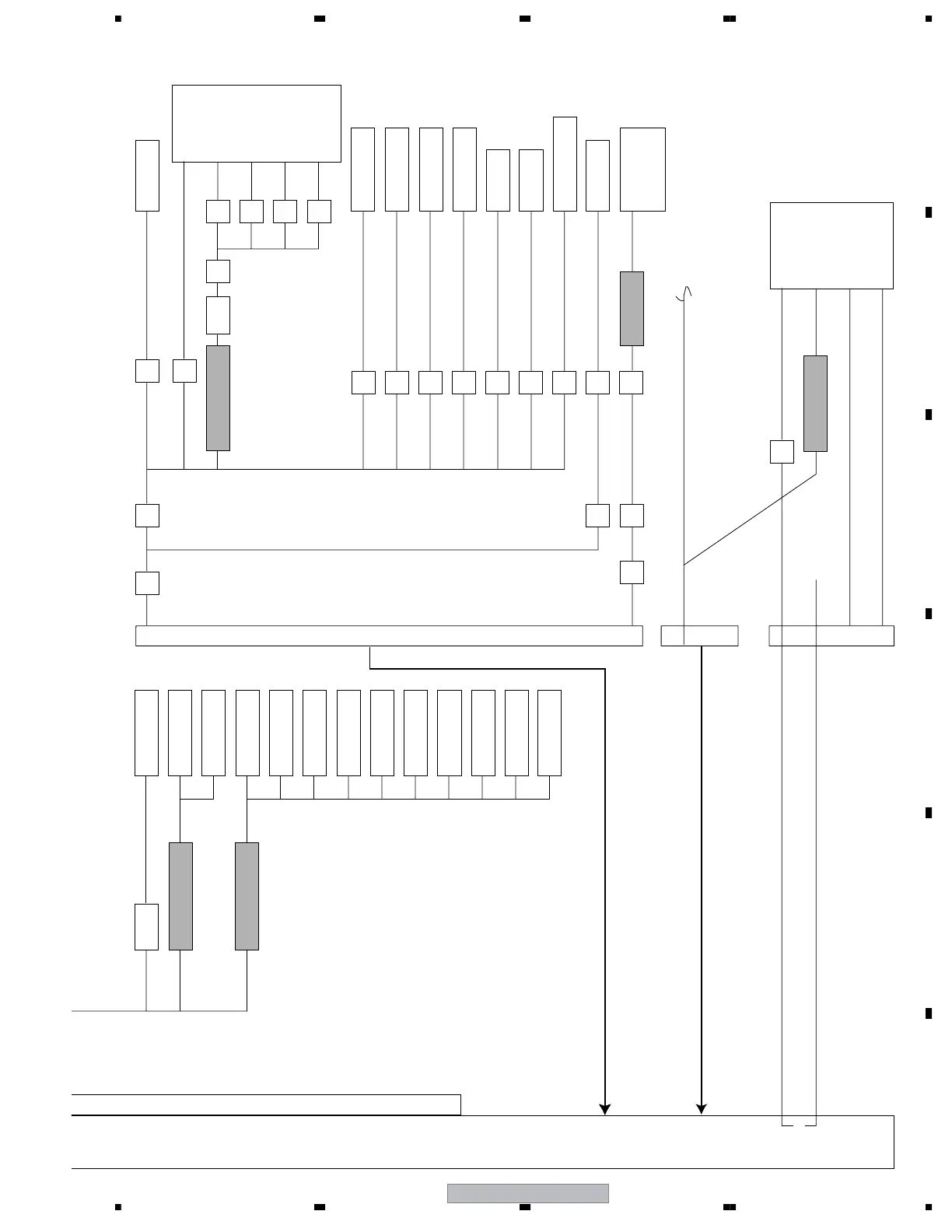

BT9501 RTC
IC9507(RTC-4543)
7V→5V VDDM5 LED ASSY IC9502(PQ1U501M2ZP)
COMM SLOT I/F
7V→3.3V VDDM3.3V MAIN CPU IC9503(NJM2846DL3-33) IC9501(M30700)
I/O EXP2 IC5304(MAX7313) RESET IC9505(BD4727) SLOT IN SCHMITT IC5001(LV14A) EEPROM IC9508(24LC128SN) RTC IC9507(RTC-4543) COMM SLOT LED ASSY KEY CONT IC2201(PD5719) 232C SEL IC8503(LCX157)
12.7V
PN FU8003 F8103
D+3.3 R VDD3.3 IP VDD3.3P FB OSD IC
IC8105(MB90098)
F8003 FB VDD3.3PS DIGITAL SIGNAL
PROCESSOR
FU8002 F8002 IC8001(PASTEL)
3.3V→1.5V IP FB
VDD1.5DLL
L8001 PL_AVDD1
IC8003(PQ1MX55M2SPQ)
L8004 PL_AVDD2 L8002 RIP_DVDD L8003 RSC_DVDD
F8101 FB 64M SDRAM
IC8101(K4S643232H)
F8104 FB 64M SDRAM
IC8102(K4S643232H)
F8102 FB 64M SDRAM
IC8103(K4S643232H)
F8105 FB 64M SDRAM
IC8104(K4S643232H)
F8004 FB X
X8002(143M)
F8005 FB X
X8001(90M)
F8501 FB VDD_3.3V_LV LVDS Transmitter
IC8501(THC63LVD103)
FU6301 F6301 IP FB VDD3.3E IC6 OE_IC
IC6301(PD6435)
FU8001 F8001
D+2.5 R VDD2.5 IP FB 2.5V→1.5V VDD1.5P DIGITAL SIGNAL
IC8002(SI-3011ZD) PROCESSOR
IC8001(PASTEL)
P1
+16.5V
PS FU4001
A+12.0V IP VIDEO SLOT A+13.5V 16.5V→13.5V
IC4003(PQ200WNA1ZPH)
D+3.3V STB3.3V
