4.4.1.1 CONFIRMATION ON THE HDMI CONTROL FUNCTION
" PDP-508XDA
When you use the HDMI Control (HDMI-CEC) function, if the unit does not function properly, such as not being able to control
or recognize connected equipment, check the following:
" Confirmation of the manufacturer of the connected equipment
Check if the connected equipment was manufactured by Pioneer and if it supports the HDMI Control function.
If its manufacturer is not Pioneer, proper operations are not guaranteed.
" Confirmation of connections

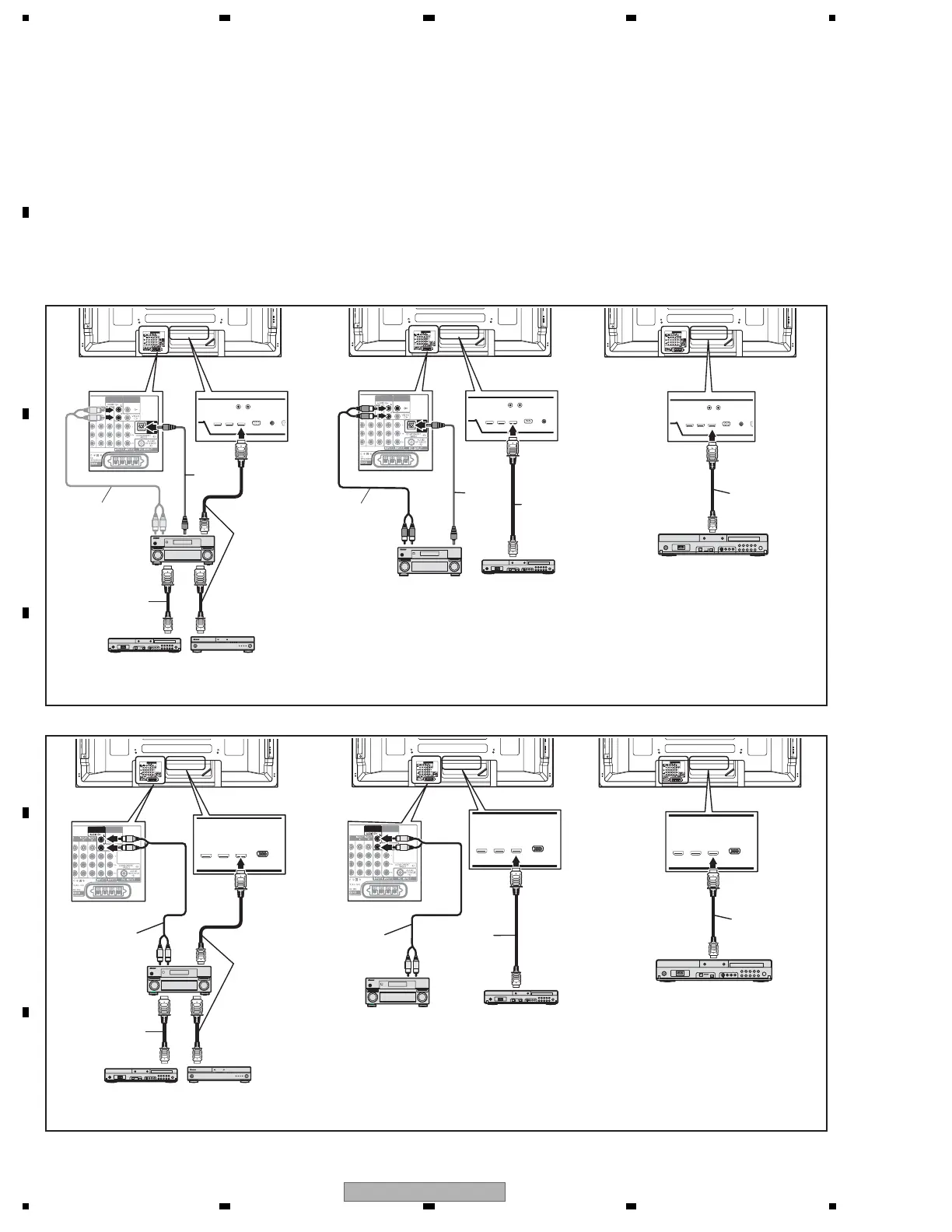

Check if the unit is connected properly, as shown in the figures below:
(For details, refer to "Making the HDMI Control connections" in the Operating instructions.)
Example 1: When an AV amplifier that supports
HDMI Control is connected
Example 2: When an AV amplifier that does
not support HDMI Control is connected
Example 3: When an AV amplifier
is not connected
Example 1: When an AV amplifier that supports
HDMI Control is connected
Example 2: When an AV amplifier that does
not support HDMI Control is connected
Example 3: When an AV amplifier
is not connected
" PDP-508XG
(Rear view)
MONITOR
OUT
DIGITAL
DIGITAL
OUT
OUT
OPTICAL
OPTICAL
SUB
WOOFER
MONITOR
OUT
DIGITAL
DIGITAL
OUT
OUT
OPTICAL
OPTICAL
SUB
WOOFER
Stereo audio
cable
DVD recorder BD player
AV amp
Optical
digital cable
HDMI compliant cable
(HDMI cable having the
HDMI mark)
HDMI compliant cable
(HDMI cable having the
HDMI mark)
(Rear view)
MONITOR
OUT
SUB
WOOFER
MONITOR
OUT
DIGITAL
DIGITAL
OUT
OUT
OPTICAL
OPTICAL
SUB
WOOFER
DVD recorderAV amp
Optical
digital cable
HDMI compliant cable
(HDMI cable having the
HDMI mark)
Stereo audio
cable
(Rear view)
MONITOR
OUT
DIGITAL
DIGITAL
OUT
OUT
OPTICAL
OPTICAL
SUB
WOOFER
DVD recorder
HDMI compliant cable
(HDMI cable having the
HDMI mark)
MONITOR
OUT
SUB
WOOFER
MONITOR
OUT
SUB
WOOFER
DVD recorder BD player
AV amp
Stereo
audio cable
HDMI compliant cable
(HDMI cable having the
HDMI mark)
HDMI compliant cable
(HDMI cable having the
HDMI mark)
(Rear view)
MONITOR
OUT
SUB
WOOFER
MONITOR
OUT
SUB
WOOFER
DVD recorderAV amp
Stereo
audio cable
HDMI compliant cable
(HDMI cable having the
HDMI mark)
(Rear view)
MONITOR
OUT
SUB
WOOFER
DVD recorder
HDMI compliant cable
(HDMI cable having the
HDMI mark)
(Rear view)
