" Confirmation of the number of connected devices
Check that the number of connected devices does not
exceed the maximum number for guaranteed operations.
" Confirmation of settings
Check that the settings for the HDMI Control function are
properly made. (For details, refer to "Setting the HDMI
Control" in the Operating instructions.)
Check that the following conditions are met:
• "Input Setting" on the HDMI Control Setting menu must
be set to the same input as that to which the equipment
that supports the HDMI Control function is connected.
• When Power Off Control, Power-On Ready, or Hold
Sound Status are to be used, their settings must be On.
Equipment
Maximum
Number
DVD recorder 2
BD player 2
AV System 1
Check that the following conditions are met:
• The connected equipment must support the HDMI
Control function.
• The equipment must be connected to the INPUT
connector that has been selected in "Input Setting" on
the HDMI Control Setting menu.
• The connections must be made properly, as shown in the
above figures (in a case where an AV device, such as an
AV amplifier, and a DVD recorder/BD player are
connected, in a case where only a DVD recorder/BD
player is connected, and in a case where an AV device,
such as an AV amplifier, which does not support
HDMI-CEC, is connected).
• When an AV device that supports the HDMI Control
function is connected, it must be connected between the
PDP and a DVD recorder/BD player.
• The HDMI Control function must be activated on the
connected equipment (DVD recorder, BD player, AV
device [AV amplifier, etc.]).
(Refer to the instruction manual of the connected
equipment.)

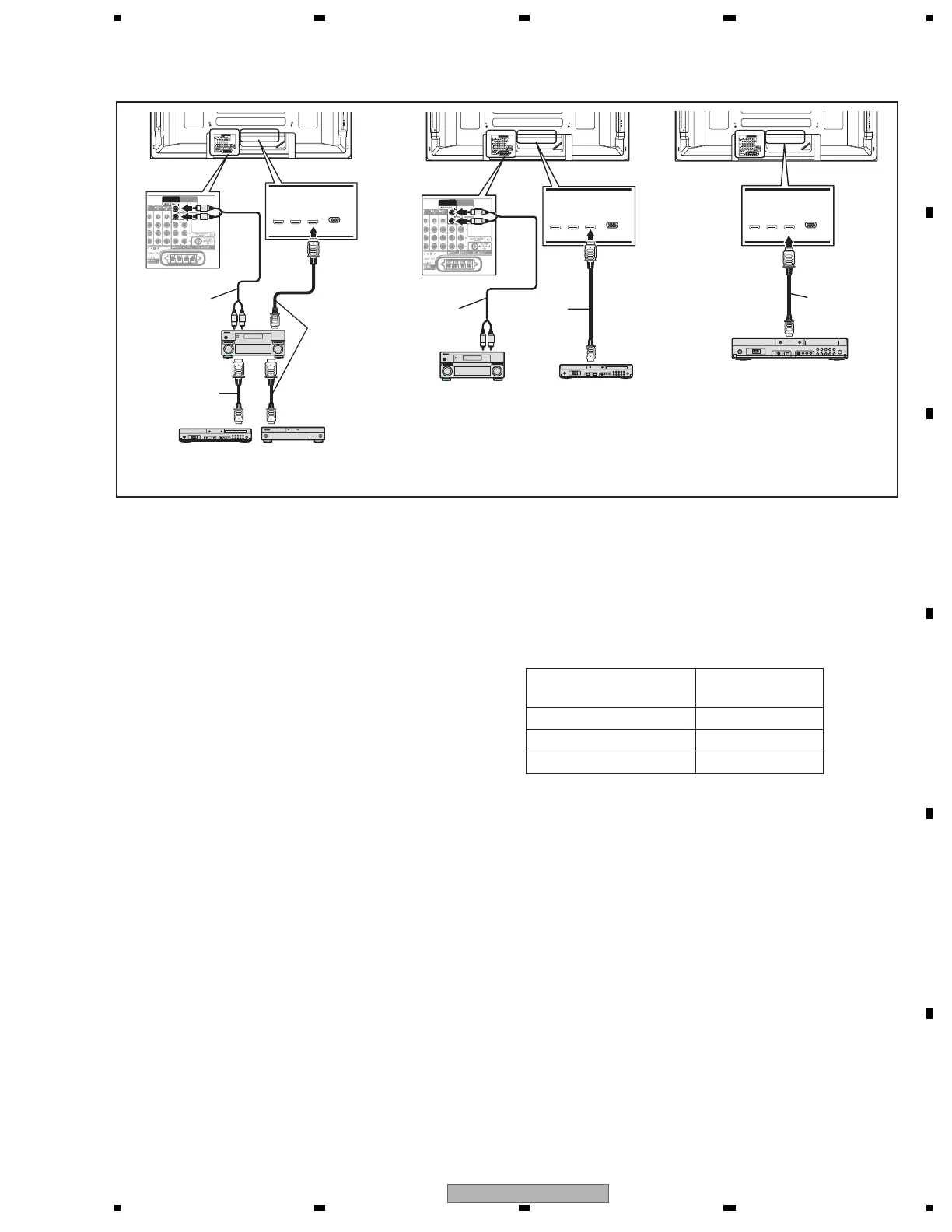

Example 1: When an AV amplifier that supports
HDMI Control is connected
Example 2: When an AV amplifier that does
not support HDMI Control is connected
Example 3: When an AV amplifier
is not connected
" PDP-508XC
MONITOR
OUT
SUB
WOOFER
MONITOR
OUT
SUB
WOOFER
Stereo audio
cable
AV amp
(Rear view)
HDMI compliant cable
(HDMI cable having the
HDMI mark)
HDMI compliant cable
(HDMI cable having the
HDMI mark)
DVD recorder
BD player
MONITOR
OUT
SUB
WOOFER
MONITOR
OUT
SUB
WOOFER
(Rear view)
Stereo
audio cable
AV amp
DVD recorder
HDMI compliant cable
(HDMI cable having the
HDMI mark)
MONITOR
OUT
SUB
WOOFER
(Rear view)
HDMI compliant cable
(HDMI cable having the
HDMI mark)
DVD recorder
To Next Page
