14
En
English
Installation and Connections
Installation and Connections
Power cord connection
Connect a power cord after all component connections
have been completed.
PDP-50MXE1/PDP-50MXE1-S/PDP-43MXE1/PDP-
43MXE1-S power cord ratings
Cord .......................... Cross-sectional area 3 x 1.0 mm
2
(According to CEE 13)
Connector ................................................... 10 A, 250 V
(According to EN60320 Sheet C13)
Plug ................................ International use (10 A, 250 V)
Example:
UK : UK 13 Amp Plug with rated 13 Amp fuse
(According to BS1363)
EURO : 10 A/16 A 250 V (According to CEE 7, 1 V)
CAUTION
For the plasma display, a three-core power cord with a ground
terminal is used for efficiency protection.
Always be sure to connect the power cord to a three-pronged
grounded outlet and make sure that the cord is properly
grounded. If you use a power source converter plug, use an
outlet with a ground terminal and screw down the ground line.
NO!
Do not use a power supply voltage other than that indicated (AC
100 - 240 V, 50/60 Hz) as this may cause fire or electric shock.

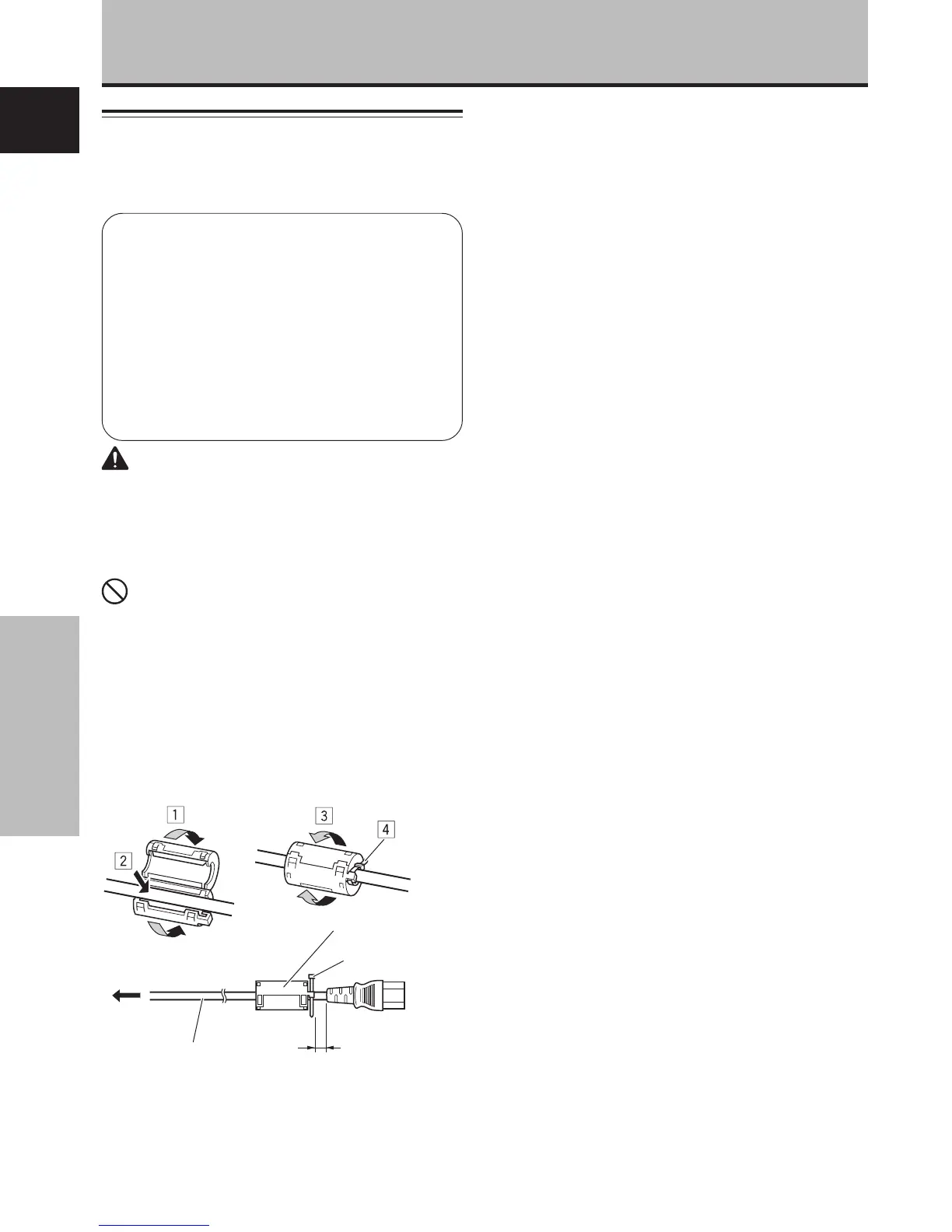

Attaching the ferrite core
To help prevent noise, attach the accessory ferrite core to
the connector end of the power cord as shown in the
accompanying illustration. Use the provided cable tie to
prevent the ferrite core from slipping on the cable.
Ferrite core
Cable tie
AC power cord
To power
outlet
As close as possible
To AC IN
To Next Page
