Pioneer sc-lx86 - [E] 7.2 channel surround system (Front height;Front wide) & ZONE 2 connection (Multi Zone); [F] 5.2 channel surround system & Front Bi-amping connection (High quality surround) & ZONE 2 connection (Multi Zone)

26
03
Connecting your equipment

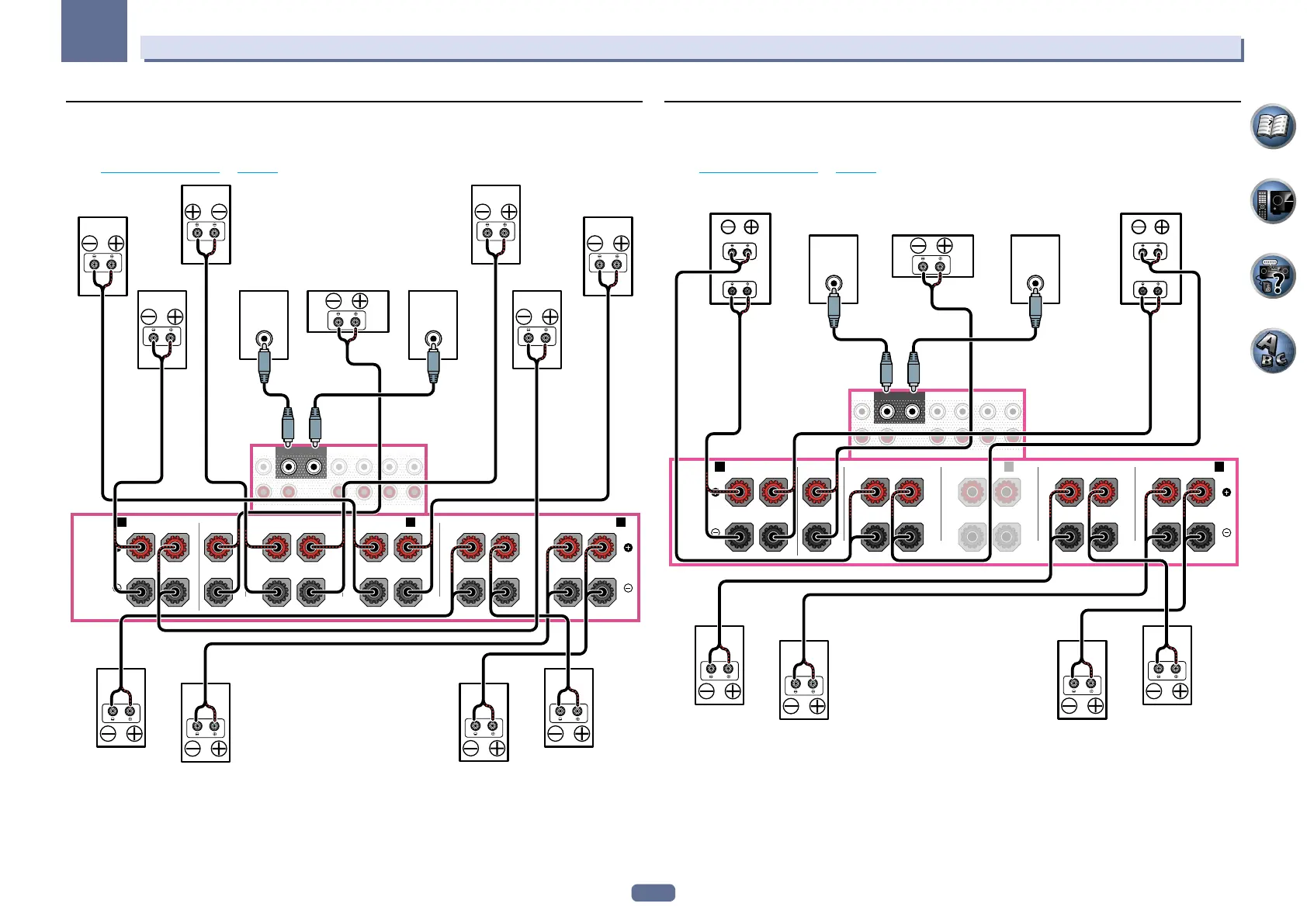

[E] 7.2 channel surround system (Front height/Front wide) & ZONE 2
connection (Multi Zone)
! Select ‘7.1ch FH/FW + ZONE 2’ from the Speaker System menu.
See Speaker system setting on page 97 to do this.
SUBWOOFER
12
SURROUND SURR BACK F HEIGHT
(Single)
(Single)
FRONT
CENTER
PRE OUT
F WIDE
SPEAKERS
FRONT CENTER
A A
SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
B
RL
RLRLRLRL
LINE LEVEL
INPUT
LINE LEVEL
INPUT
Front height leftFront height right
Front wide leftFront wide right
Front leftFront right Center Subwoofer 2Subwoofer 1
Surround left
ZONE 2 - right ZONE 2 - left
Surround right
[F] 5.2 channel surround system & Front Bi-amping connection (High quality
surround) & ZONE 2 connection (Multi Zone)
! Select ‘5.1ch Bi-Amp + ZONE 2’ from the Speaker System menu.
See Speaker system setting on page 97 to do this.
SUBWOOFER
12
SURROUND SURR BACK F HEIGHT
(Single)
(Single)
FRONT
CENTER
PRE OUT
F WIDE
SPEAKERS
FRONT CENTER
A A
SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
B
RL
RLRLRLRL
LINE LEVEL
INPUT
LINE LEVEL
INPUT
High
Low
High
Low
Bi-amp compatible speaker
Front right
Bi-amp compatible speaker
Front left
Center Subwoofer 2Subwoofer 1
Surround left
ZONE 2 - right ZONE 2 - left
Surround right
