Connecting your equipment

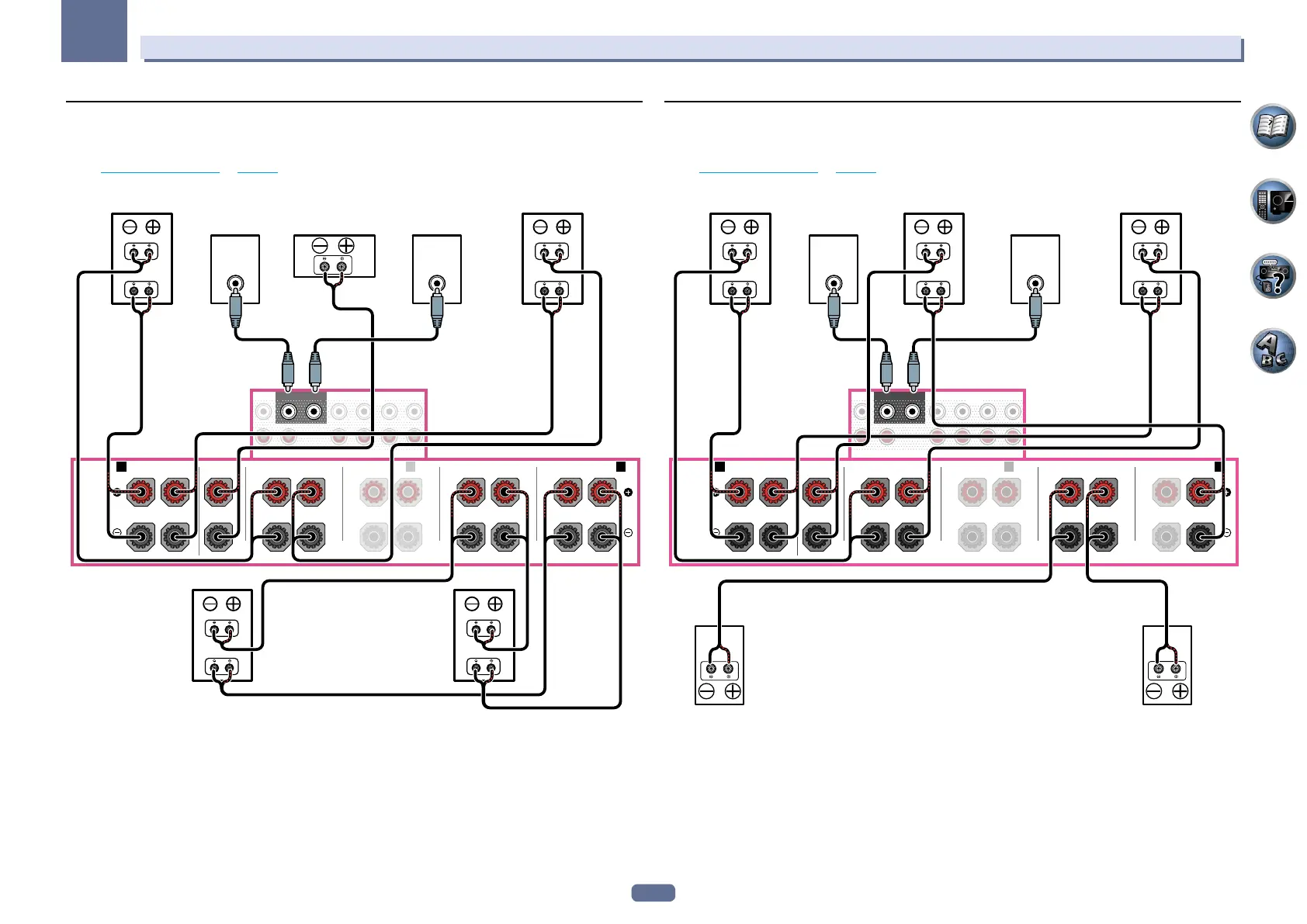

[I] 5.2 channel surround system & Front and Surround Bi-amping connection
(High quality surround)
! Select ‘5.1ch F+Surr Bi-Amp’ from the Speaker System menu.
See Speaker system setting on page 97 to do this.
SUBWOOFER
12
SURROUND SURR BACK F HEIGHT
(Single)
(Single)
FRONT
CENTER
PRE OUT
F WIDE
SPEAKERS
FRONT CENTER
A A
SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
B
RL
RLRLRLRL
LINE LEVEL
INPUT
LINE LEVEL
INPUT
High
Low
High
Low
High
Low
High
Low
Bi-amp compatible speaker
Front right
Bi-amp compatible speaker
Front left
Center Subwoofer 2Subwoofer 1
Bi-amp compatible speaker
Surround right
Bi-amp compatible speaker
Surround left
[J] 5.2 channel surround system & Front and Center Bi-amping connection
(High quality surround)
! Select ‘5.1ch F+C Bi-Amp’ from the Speaker System menu.
See Speaker system setting on page 97 to do this.
SUBWOOFER
12
SURROUND SURR BACK F HEIGHT
(Single)
(Single)
FRONT
CENTER
PRE OUT
F WIDE
SPEAKERS
FRONT CENTER
A A
SURROUND SURROUND BACK FRONT HEIGHT FRONT WIDE /
B
R LRLRLRLRL
LINE LEVEL
INPUT
LINE LEVEL
INPUT
High
Low
High
Low
High
Low
Bi-amp compatible speaker
Front right
Bi-amp compatible speaker
Front left
Bi-amp compatible speaker
Center
Subwoofer 2Subwoofer 1
Surround leftSurround right
