58
VSX-D409, VSX-D309
1 MULTI CONTROL buttons
Use to put the receiver/remote control in the stated mode.
For other equipment controls, see Controlling the Rest of
Your System.
2 RECEIVER button
Use this button when setting up the surround sound for the
receiver.
3 NUMBER/MODE buttons
Use the number buttons to select the radio frequency in tuner
DIRECT ACCESS mode or the tracks in CD, DVD mode etc.
Also, buttons marked with the following names have special
functions. If you try to use one of these functions but he
display flashes it means that function cannot be used int he
current mode (for example DSP modes cannot be used when
5.1 CH setting is on).
2
Use to put receiver in DOLBY DIGITAL and DTS modes. To
use first press the RECEIVER button then operate this button.
DSP mode
Use to put receiver in one of the DSP modes. To use first
press the RECEIVER button then operate this button.
MIDNIGHT
Use to put receiver in MIDNIGHT mode. To use first press the
RECEIVER button then operate this button.
5.1 CH
When the DVD/LD or DVD 5.1 CH function is selected each
press switches the DVD/LD input between DVD/LD and DVD
5.1 CH. To use first press the RECEIVER button then operate
this button.
CHANNEL SELECT
Use to slect a speaker when setting up the surround sound of
the receiver. To use first press the RECEIVER button then
operate this button.
TEST TONE
Use to sound the TEST TONE when setting up the surround
sound of the receiver. To use first press the RECEIVER
button then operate this button.
ATT
Use to attenunate (lower) the level of an analog input signal
and prevent distortion. To use first press the RECEIVER
button then operate this button.
CHANNEL LEVEL +/–
Use to set up the levels of the surround sound of the receiver.
To use first press the RECEIVER button then operate this
button.
SIGNAL SELECT
Use to select the proper signal (analog, digital) for the source
your are inputting. To use first press the RECEIVER button
then operate this button.

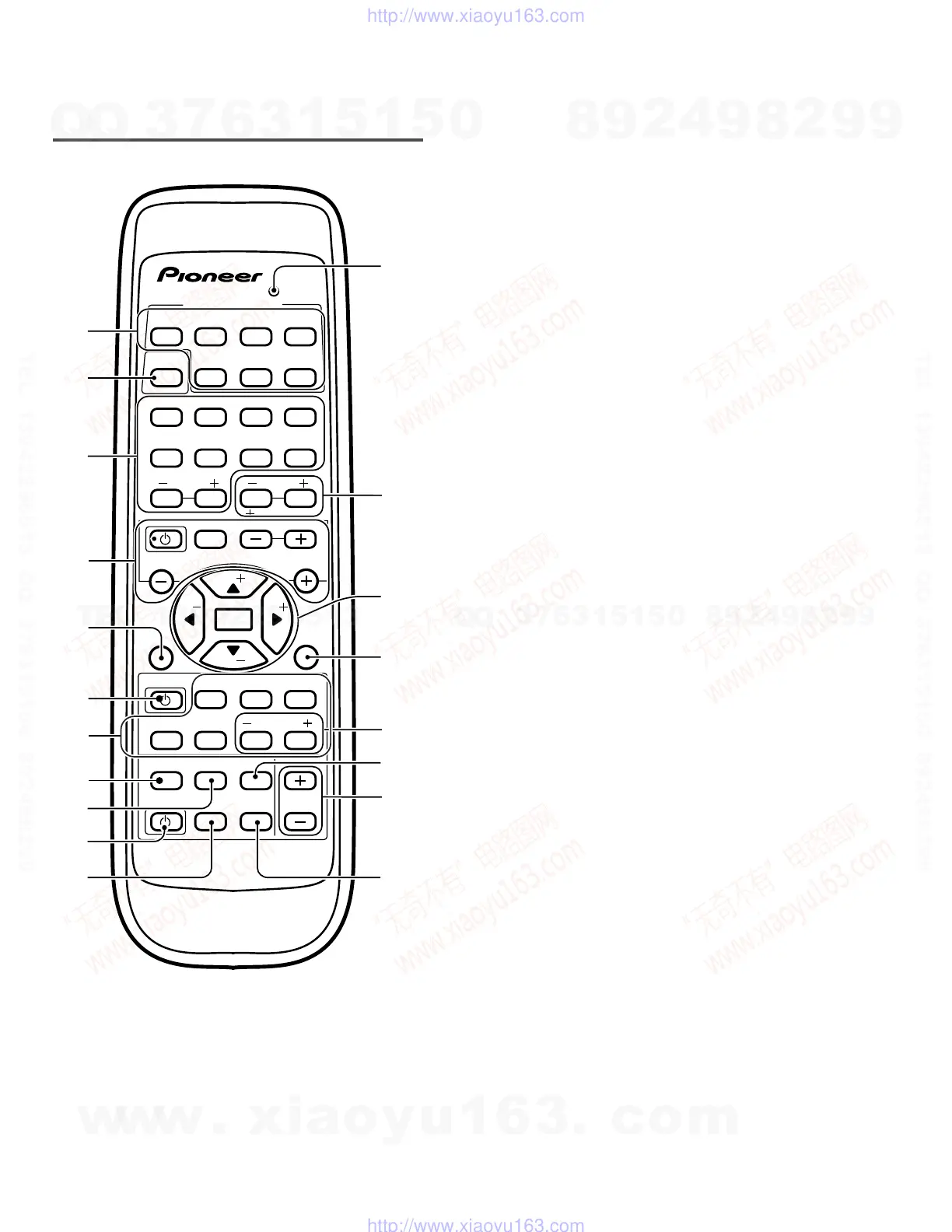

Remote Control
MULTI CONTROL
DVD/LD TV/SAT VCR/DVR CD
SOURCE CLASS MPX BAND
LOUDNESS FUNCTION MUTING
RECEIVER
D.ACCESS CHANNEL
ATT
VOL
MENU
TOP
MENU
VOL
CH
2
DSP MODE
MIDNIGHT
5.1CH
CD-R/
TAPE/MD
CHANNEL
SELECT
CHANNEL
LEVEL
EFFECT
ENTER
ENTER
FQ
FQ
ST ST
FL
DIMMER
REMOTE
SETUP
MASTER
VOLUME
AUDIO/VIDEO PRE-PROGRAMMED
