XR-A660, XR-A330
30
A
B
C
D
1
23
4
1234

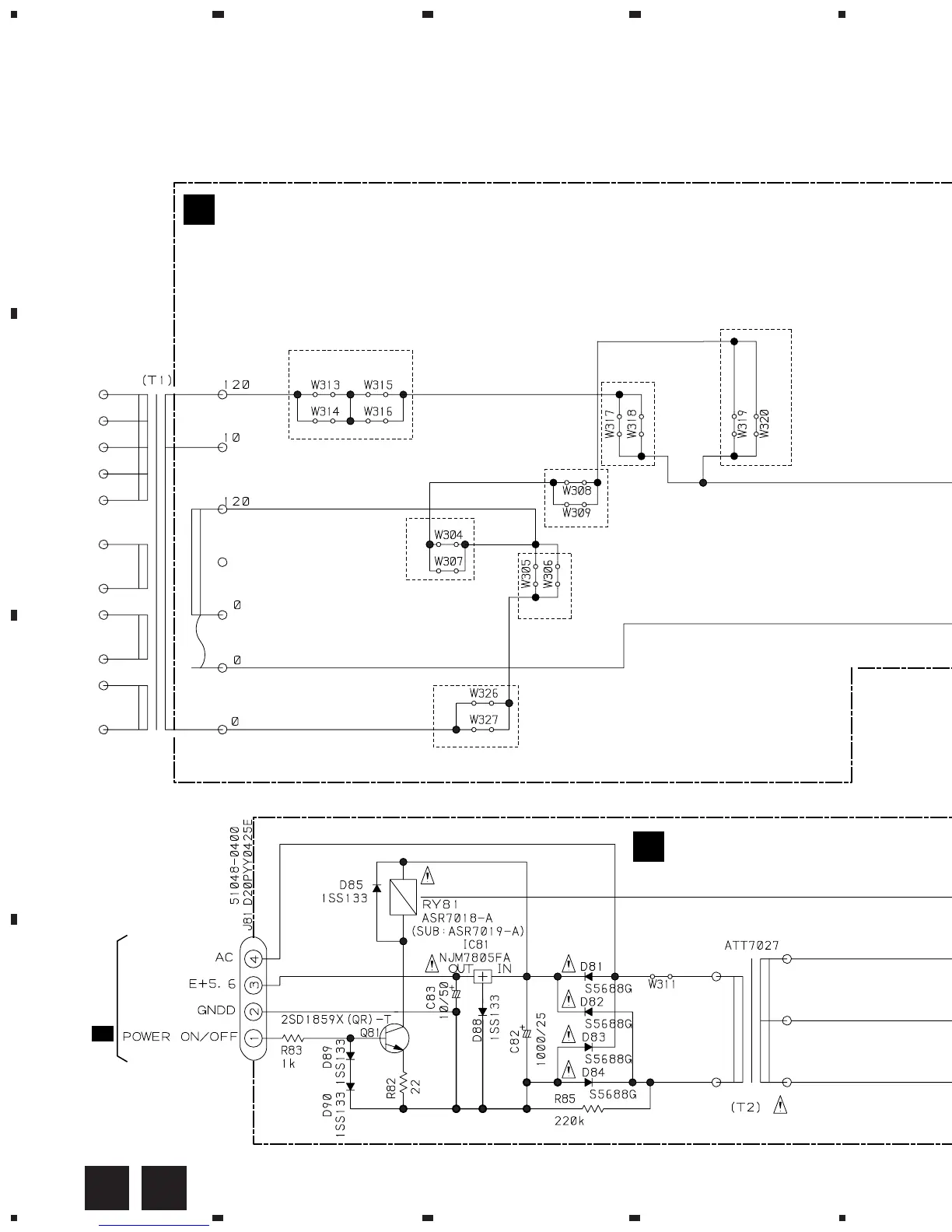

3.7 PRIMARY and SUB TRANS ASSEMBLIES
PRIMARY ASSY
(KUCXJ : XWZ3059)
(YPWXJ : XWZ3051)
G
SUB TRANS ASSY
(KUCXJ : XWZ3060)
(YPWXJ : XWZ3052)
H
POWER TRANSFORMER
3/3
CN81
E
YPWXJ ONLY
YPWXJ ONLY
YPWXJ ONLY
YPWXJ ONLY
KUCXJ ONLY
KUCXJ ONLY
KUCXJ ONLY
G H
