71
XR-A6800, XR-A4800
18
19
17
123
4
5
16 14 13 1215 10
6
9 8
7
11

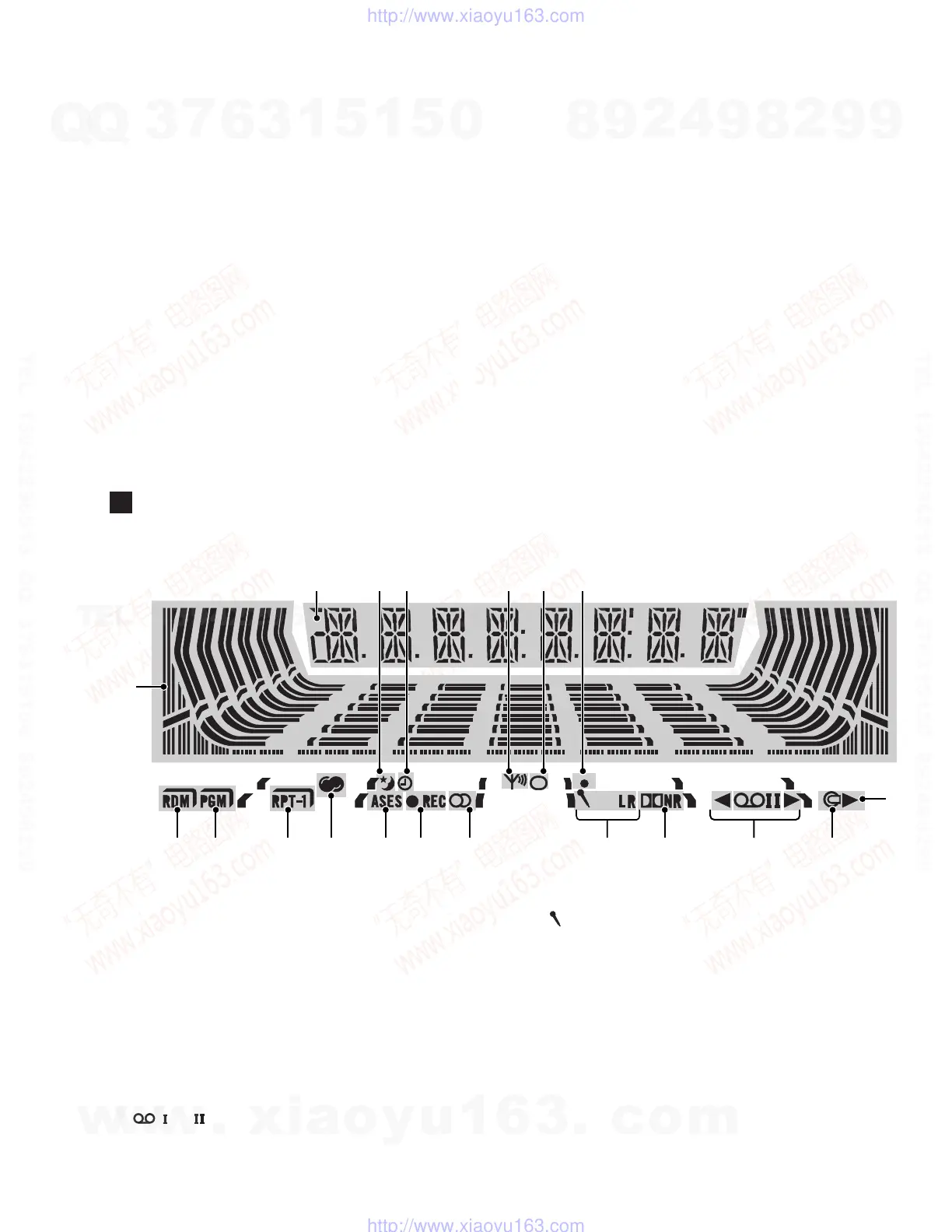

The illustration on this page shows the XR-A6800.
Not all features are available on the XR-A4800.
1 Character display
2 Lights when the sleep timer has been set.
3 Lights when either the record timer or the wake up
timer has been set.
4 Lights when the tuner is receiving a broadcast.
5 Lights when the tuner is set to mono FM mode.
6 Lights when in beat cut 2 mode. (XR-A6800 model
only)
7 Lights when a CD is playing.
8 Lights when the system is in CD mode.
9 2 and 3 – Indicates the current tape play/record
direction.
or – Indicates the current tape deck, I or
II.
Display
10 Lights when Dolby Noise Reduction is switched on.
(XR-A6800 model only)
11
– Lights when in the karaoke mode.
L R – Indicates which channels of the karaoke
track you’re hearing.
12 Lights when the tuner is receiving a stereo FM
broadcast in auto stereo mode.
13 Lights when recording to tape.
14 Lights during automatic recording of a CD.
15 Lights in RDS mode.
16 Highlights during repeat play mode.
17 Highlights during program playback mode.
18 Highlights during random playback mode.
19 Sound morphing / sound level display
22 EJECT (tape I)
Press to open the cassette door of deck I.
23 Function select buttons
CD
TUNER BAND
AUX
TAPE I/II
24 ASES / COPY
25 REC / STOP
26 TIMER STANDBY indicator
27 OPEN/CLOSE
28 DISC CHANGE
29 STANDBY/ON and standby indicator
Press to switch the unit between standby and on.
Indicator lights in standby.
* Manufactured under licence from Dolby Labora-
tories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
