XR-A9800D
2.1 PACKING

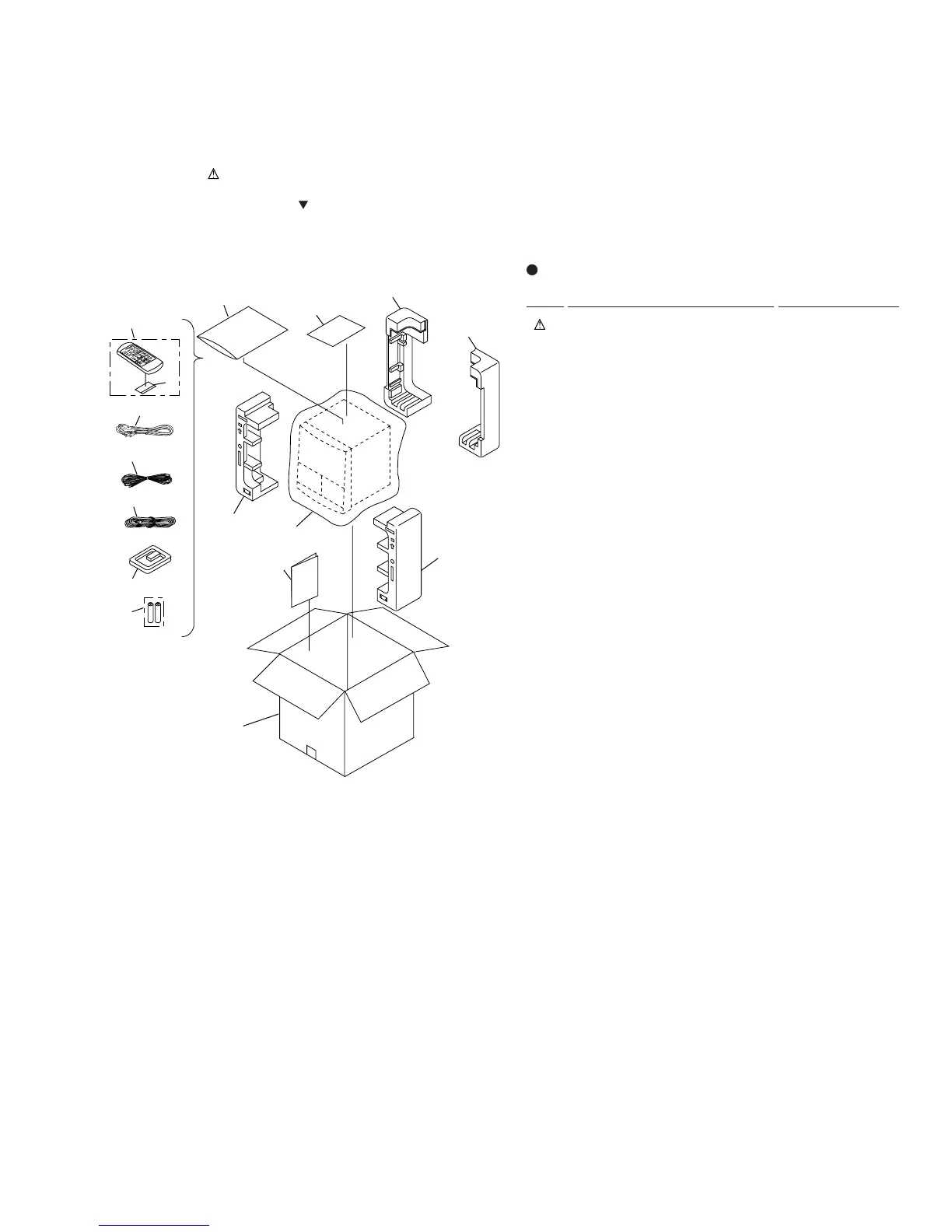

2. EXPLODED VIEWS AND PARTS LIST
NOTES:
•
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•
Screws adjacent to mark on the product are used for disassembly.
V
O
L
KARAOKE SFC
DISC DISC DISC
C
LE
AR
STATION
R
E
M
O
T
E
C
O
N
T
R
O
L
U
N
IT
C
U
-X
R
0
2
5
M
O
NO
B
AN
D
P
G
M
R
EPEAT
RAN
DO
M
AUX
P.BASS DISPLAY
SLEEP
P
O
W
E
R
3
2
4
13
9 (1/2)
8
10 (1/2)
10 (2/2)
1
14
12
5
11
9 (2/2)
6
7
1 Power Cord ADG7022
2 Video Cord (L=1.5m) VDE1034
3 FM Antenna ADH7004
4 AM Loop Antenna XTB3001
5 Remote Control Unit XZN3109
6 Battery Cover XZN3105
NSP 7 Dry Cell Battery (R6P, AA) VEM-013
8 Packing Sheet AHG7049
9 Front Pad XHA3020
10 Rear Pad XHA3021
11 Packing Case XHA3144
NSP 12 Warranty Card PA/DC ARY7045
13 Polyethylene Bag Z21-038
(0.03 × 230 × 340)
14 Operating Instructions XRE3036
(English/French)
PACKING PARTS LIST
Mark No. Description Part No.
To Next Page
