XR-VS88, XR-VS66
7
1
Servo Mechanism
AXA7039
2
SPINDLE MOTOR Assy
AEA7009
3
SLEAD MOTOR Assy
AEA7010
4
Gear A
AEA7013
5
Gear B
AEA7014
6
Screw
AEA7015
7
Screw
AEA7016
8
Screw
AEA7017
9
Screw
AEA7018
10
Leaf Switch
AEA7011
Mark No. Description Part No.
÷

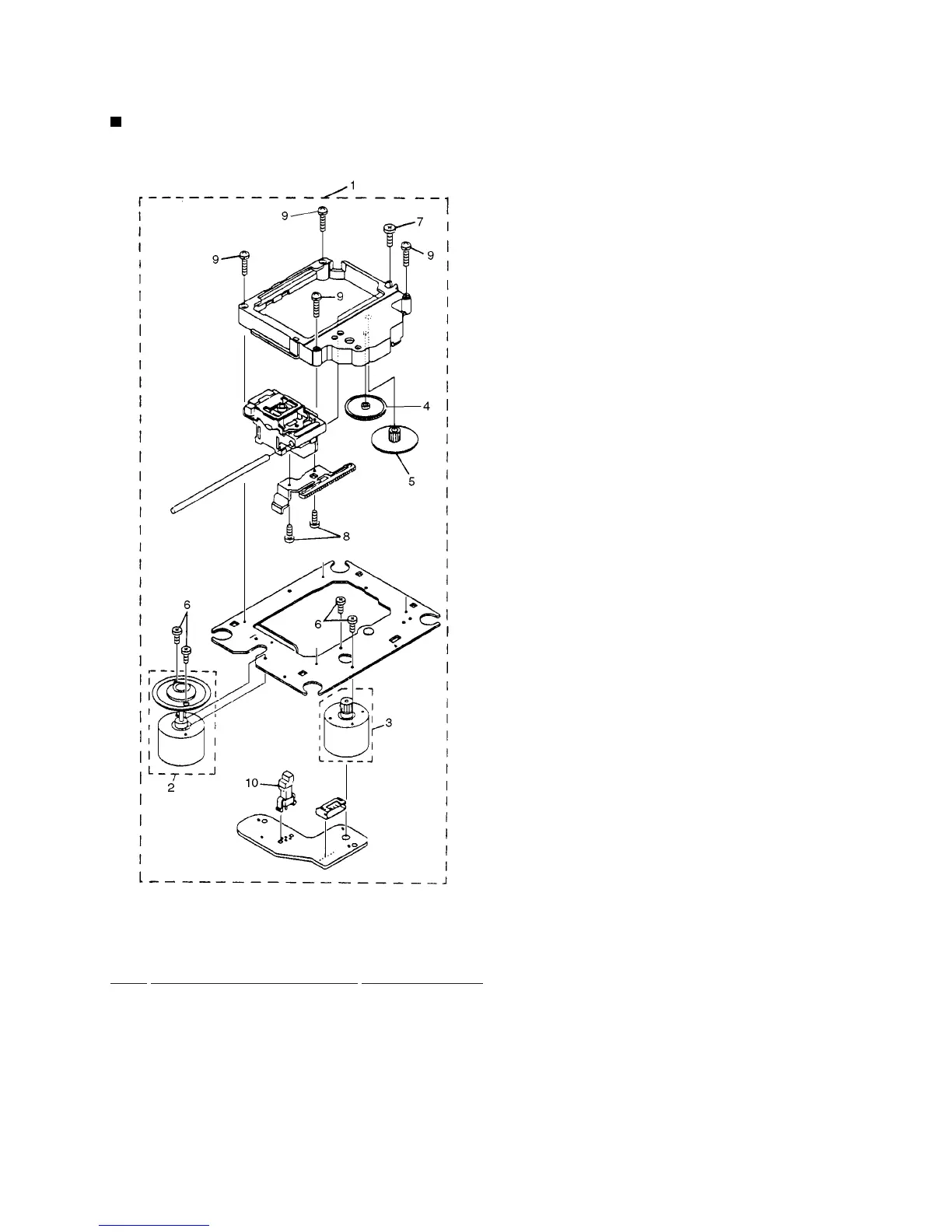

SERVO MECHANISM
ASSY
P
ARTS LIST
÷
SERVO MECHANISM
ASSY
EXPLODED VIEWS
6
8
Table of Contents
Table of Contents
1
Safety Information
2
Label Check
2
Contrast of Miscellaneous Parts
3
Exploded Views
6
Contrast of PCB Assemblies
8
Pcb Parts List
11
Schematic Diagram
14
PCB Connection Diagram
28
Adjustment
30
