XR-VS88, XR-VS66
6
Part No.
Ref. No. Mark Symbol and Description XXA3012 XXA3007 Remarks
(XR-A670) (XR-VS88, XR-VS66)
$M SERVO MECHA ASSY XWX3008 Not used
P11- 1 MOTOR ASSY XWZ3230 Not used
P11- 2 SW ASSY XWZ3231 Not used
P11- 3 CD ASSY XWZ3233 Not used
P11- 4 TRADE ASSY XWZ3232 Not used
P11- 3 $M VCD SURVO ASSY Not used XWX3003
$M MECHA PCB ASSY Not used XWX3004
P11- 1 MOTOR ASSY Not used XWZ3080
P11- 2 SW ASSY Not used XWZ3081
P11- 4 TRADE ASSY Not used XWZ3082
P11-11 Traverse Base XNW3006 XNW3010
P11-12 Rotary Tray ANW7124 ANW7113
P11-13 Clamper XNW3007 ANW7091
P11-21 16P 200 Flexible Cable/60V XDD3036 Not used
P11-21 15P Flexible Cable/30V Not used XDD3007
P11-25 Servo Mechanism Assy XXA3010 AXA7039 *1
P11-31 11P 185 Flexible Cable/30V XDD3037 Not used
P11-31 13P Flexible Cable/30V Not used XDD3008
P11-32 Cushion Rubber XEB3007 Not used

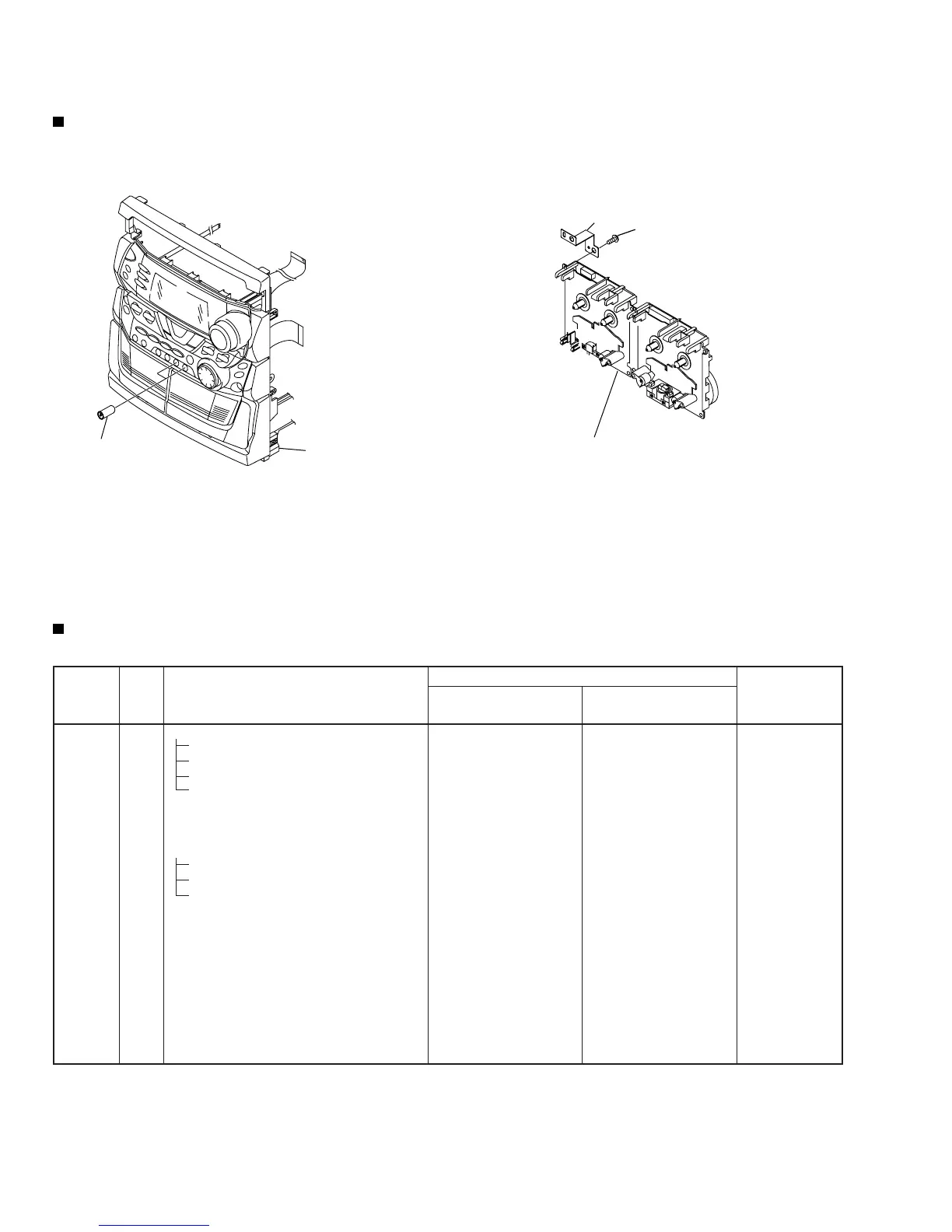

XXA3007 and XXA3012 are constructed the same except for the following :
CONTRAST OF $M MECHANISM
EXPLODED VIEWS
÷
EXTERIOR SECTION
÷
FRONT PANEL SECTION
Notes : For PCB ASSEMBLIES, Refer to “ ”, “3. SCHEMATIC DIAGRAM” and “4. PCB CONNECTION DIAGRAM”.
*1 : Refer to “ EXPLODED VIEWS ”.
1
FRONT PANEL
MECHANISM UNIT
2
Screw
BPZ30P080FMC
To Next Page
