Pioneer XR-VS77 User Manual

11
XR-VS77, XR-VS55
•
$M MECHANISM VCD PARTS LIST
Mark No. Description Part No.
1 MOTOR Assy XWZ3080
NSP 2 SW Assy XWZ3081
3 VCD SURVO Assy XWX3003
4 TRADE Assy XWZ3082
5 Servo Spring ABH7126
6 Belt AEB7072
7 Clamp Magnet AMF7001
8 Yoke ANB7067
9 Mecha Base XNW3001
10 Loading Tray XNW3002
11 Servo Base XNW3003
12 Rotary Tray ANW7113
13 Clamper ANW7091
14 Clamper Holder XNW3004
15 Main Cam ANW7093
16 Gear Pully ANW7094
17 Lock Lever ANW7095
18 Planet Gear ANW7096
19 Actuater ANW7097
20 13P F.F.C/30V XDD3008
21 15P F.F.C/30V XDD3007
22 Connector Assy (6P) ADE7010
23 Float Rubber A AEB7063
24 Float Rubber B AEB7066
25 Servo Mechanism Assy AXA7039
26 Screw IPZ30P080FMC
27 Carriage Motor VXM1033
28 Motor Pulley PNW1634
29 Ha Narl GEM1016
30 Card Spacer AEC7143
31 Cushion Rubber XEB3004
1 Servo Mechanism AXA7039
2 SPINDLE MOTOR Assy AEA7009
3 SLEAD MOTOR Assy AEA7010
4 Gear A AEA7013
5 Gear B AEA7014
6 Screw AEA7015
7 Screw AEA7016
8 Screw AEA7017
9 Screw AEA7018
10 Leaf Switch AEA7011
Mark No. Description Part No.
•

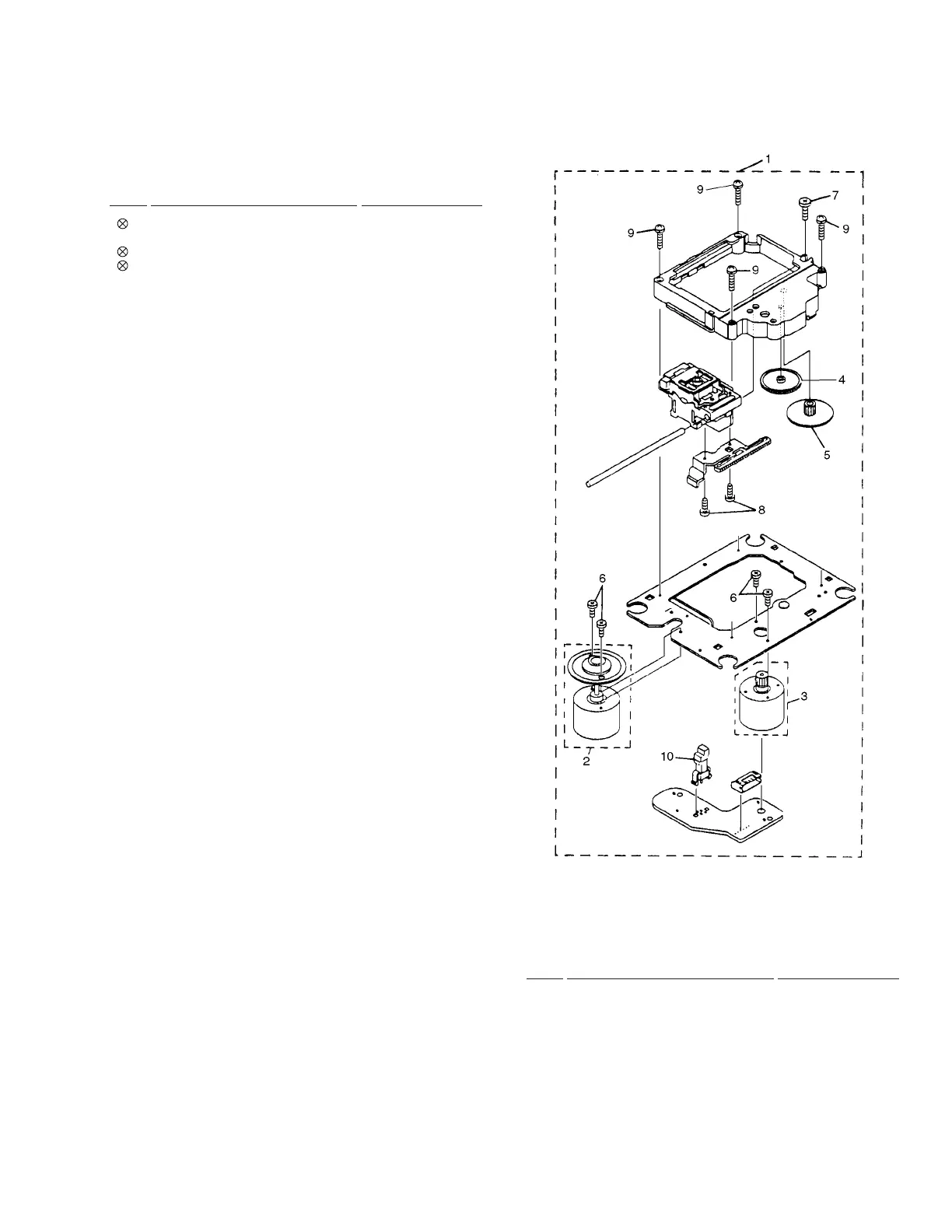

SERVO MECHANISM ASSY PARTS LIST
2.6 SERVO MECHANISM ASSY
