13
XR-VS77, XR-VS55
5
11
8
6
Mark No. Description Part No.
•

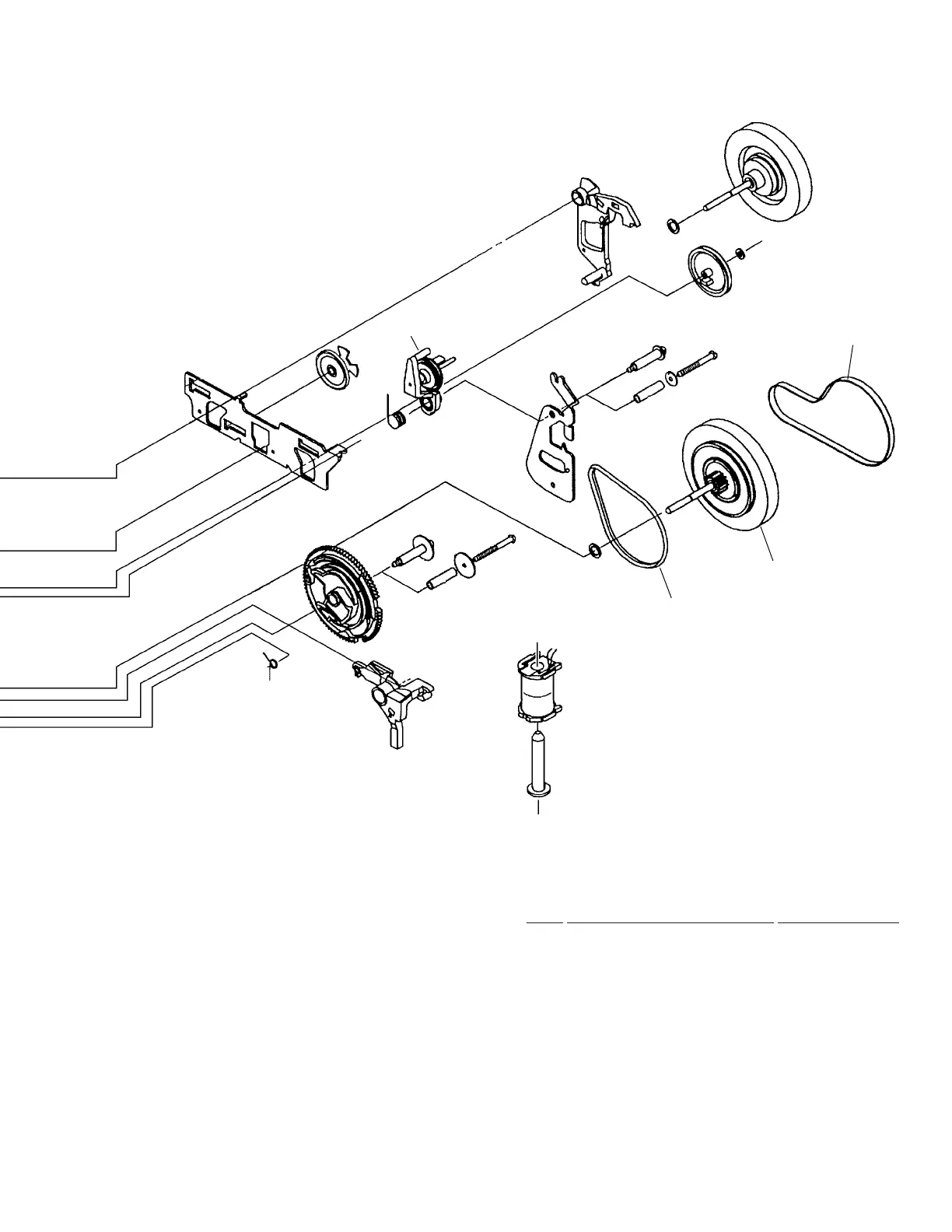

MECHANISM UNIT PARTS LIST
1
Plate HD BLK (Mech.
ΙΙ
)
F513-811
1
Plate HD BLK (Mech.
Ι
)
F513-819
2
Motor Main BLK (Mech.
ΙΙ
only)
F525-324
3
• • • • •
4
PCB Control BLK
F567-621
5
Clutch Assy BLK
F522-037
6
Main Belt
FF17G-31
7
Joint Belt 113 (Mech.
ΙΙ
only)
FF19D-21
8
Clutch Assy BLK
F522-045
9
Roller Pinch BLK R
F514-129
10
Roller Pinch BLK L
F514-130
11
F/R Belt
FF18W-12
12
Plate Base BLK
F512-127
13
Plate Base BLK
F512-128
12
