61
XR-VS77, XR-VS55
REC/
STOP
PLAY/
PAUSE
CD
STANDBY/ON
Function CD
TEST DISC: YEDS-7
"TEST 4"
Laser diode: LIGHTS UP
Focus servo: CLOSE
Spindle motor: START
Spindle servo: CLOSE
CLOSE OPEN
Tracking servo:
STOP all operations.
TEST DISC: YEDS-7
STANDBY/ON
CD TEST
Short Point
CD TEST
Short Point
inwards
outwards
Pickup
Move
TEST MODE : ON
TEST MODE : PLAY
TEST MODE : STOP CANCEL

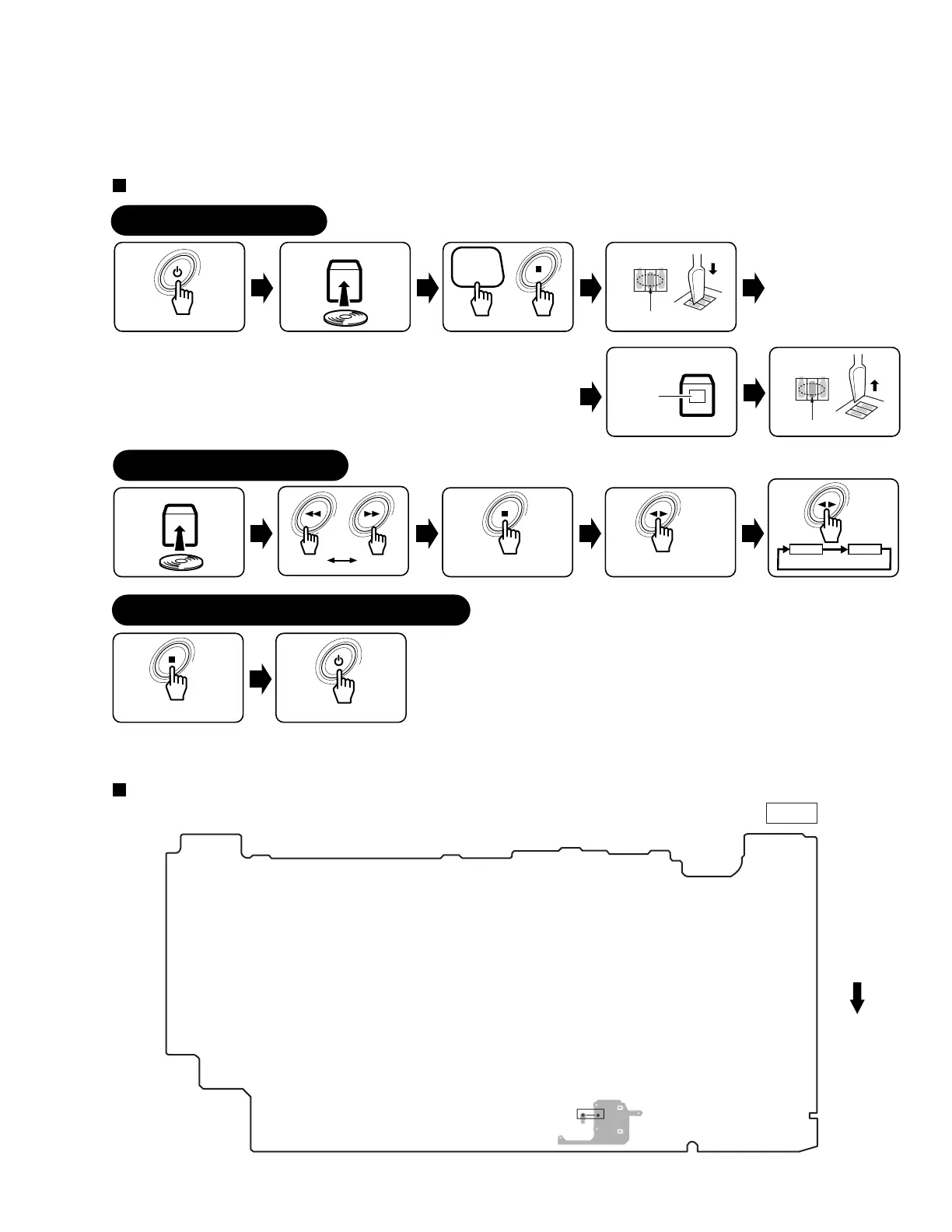

How to Start/Cancel Test Mode
Test Point
6.3 TEST MODE
NOTE: There is no information to be shown in this CD adjustment.
DISPLAY ASSY
CD TEST
Bottom Side
SIDE B
REC/
STOP
PLAY/
PAUSE
