30 — PIPE TRADES PRO™
any odd-angle short radius fitting cut from a 90° B.W. elbow,
including a 45° B.W.
KEYSTROKE DISPLAY
 (Default) BW-L EL. tYPE
 BW-S EL. tYPE
 FC-L EL. tYPE
 FC-S EL. tYPE
(Default) BW-L EL. tYPE

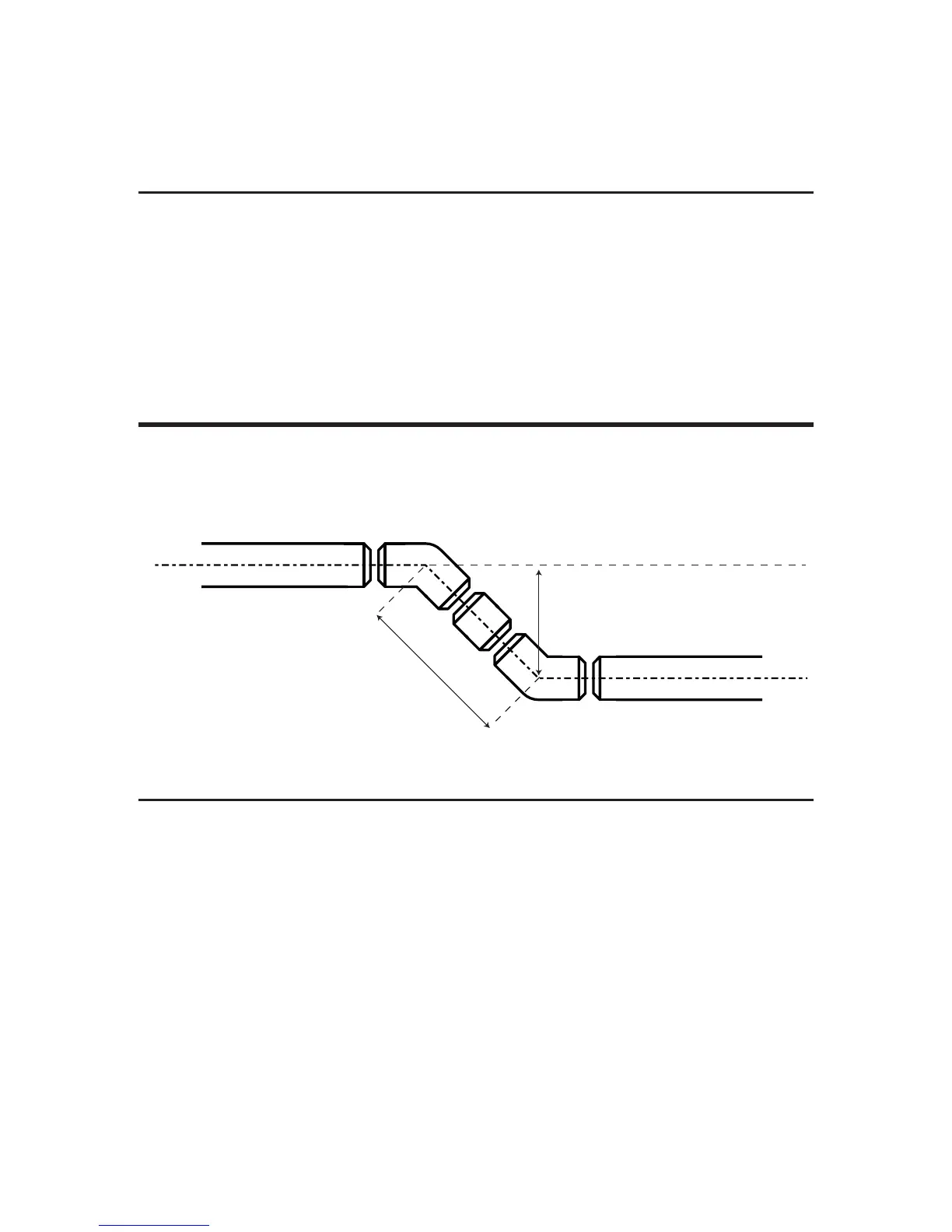

Simple Offset – Known Bend Angle
Find the center-to-center travel for a pipe offset with a 24”
Offset using 45° factory made long radius butt weld elbows.
24˝ Offset
Travel
45º SIMPLE
OFFSET
KEYSTROKE DISPLAY
  0.
1. Enter Offset:
    OFST 24 INCH
2. Enter bend angle:
   /
_
Ø 45.00°
3. Find the pipe length:
 TRAV 33-15/16 INCH
(cont'd)
