38 — PIPE TRADES PRO™
Calculate Take-Out and Butt Weld Elbow Cut Marks
The Take-Out function can be used to quickly solve a Take-Out
and butt weld elbow cut marks for a known bend angle and
Pipe Size.

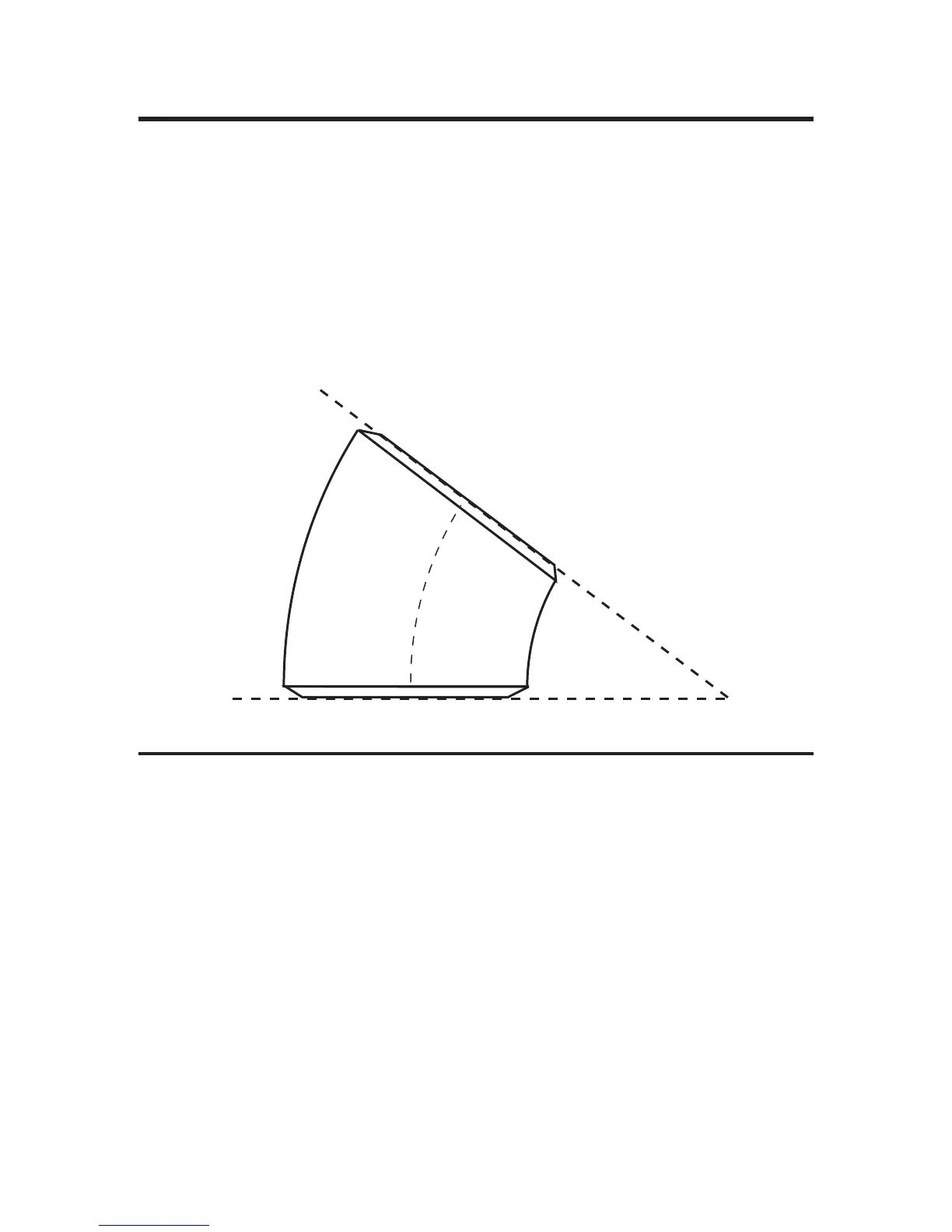

Find the arc lengths for an odd bend angle of 37° for 12” pipe.
Note: All Take-Out calculations are based on Standard type
steel pipes. O.D. See the Cut Length – Known Take-Out
Value example to solve Cut Lengths for known Take-Out
values.
37°
ANGLE
C
E
N
T
E
R
A
R
C
I
N
S
I
D
E
A
R
C
O
U
T
S
I
D
E
A
R
C
KEYSTROKE DISPLAY
  ALL CLEArEd
1. Enter the Pipe Size:
    STD SIZE 12 INCH
2. Enter the known bend angle:
   /
_
Ø 37.00°
3. Calculate the Take-Out and Arc Lengths:
  TO 6 INCH
 IARC 7-1/2 INCH
 CARC 11-5/8 INCH
 OARC 15-3/4 INCH
Continue pressing the  key to view all related values.
