USER’S GUIDE — 35
Rolling Offset – Cut Length
Find the end-to-end pipe length for a rolling pipe offset with a
13” Roll, a 24” Offset, and an advance of 32”. The bend angle
is unknown. This example assumes 6” Steel, factory made long
radius butt weld elbows are used with a Welder’s Gap of 3/32”.
Note: the default Welder’s Gap is 1/8”.
Note: All Take-Out calculations are based on Carbon Steel
O.D. See the Cut Length – Known Take-Out Value example
to solve Cut Lengths for known Take-Out values.

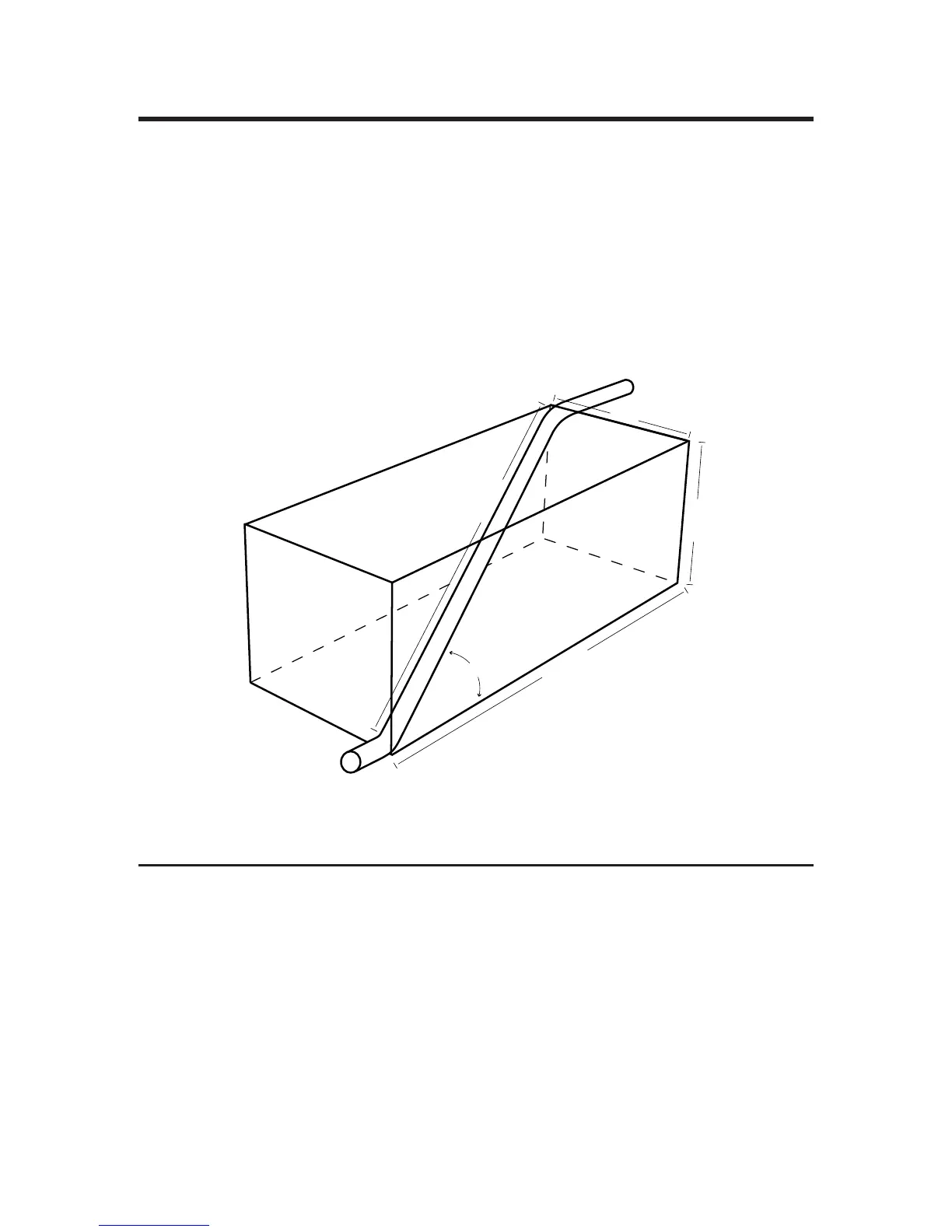

ADVANCE
LENGTH
OFFSET
ROLL
BEND
KEYSTROKE DISPLAY
ALL CLEArEd
1. Enter Pipe Size:
STD SIZE 6 INCH
2. Change the default Welder’s Gap from 1/8” to 3/32”:
* GAP 0-3/32 INCH
3. Enter Offset:
OFST 24 INCH
(cont'd)
