Pipe Trades Pro 4095 - Concentric Pipe Bend Cutback

USER’S GUIDE — 37
Concentric Pipe Bend Cutback

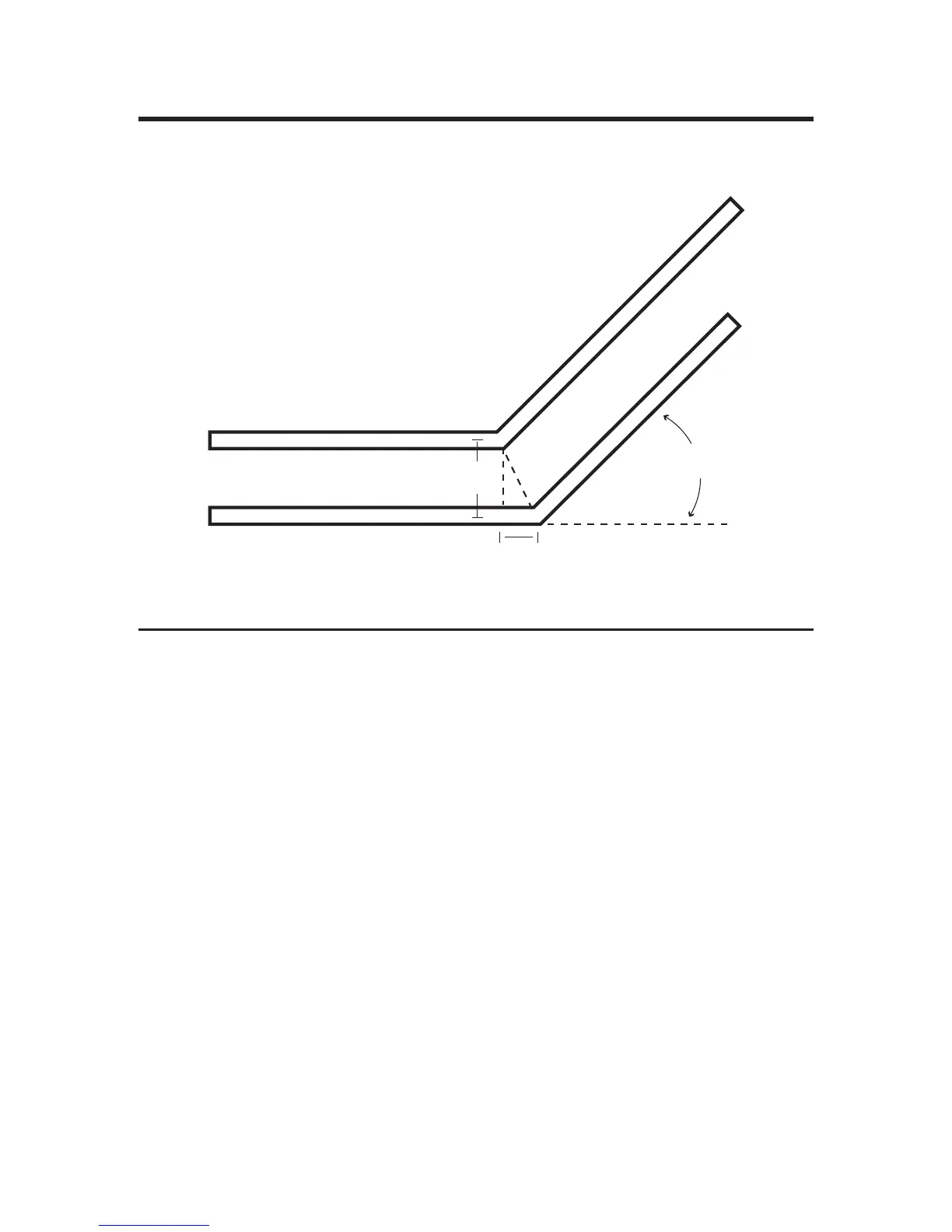

Find the pipe Cutback when you are running pipes through a
45º bend with a 10" offset.
10”
CUTBACK
45º
KEYSTROKE DISPLAY
  0.
1. Enter the bend angle:
   /
_
Ø 45.00
º
2. Enter the Offset:
    OFST 10 INCH
3. Calculate the Cutback:
  CUT 4-1/8 INCH
