SECTION 7 DESCRIPTION & OPERATION
GENERAL
All controls required to operate the KX 155A/165A are located on the
unit front panel. (See Figure 3-1.)
COMM TRANSCEIVER
Rotate the VOL knob clockwise from the OFF position. Pull the VOL knob out
and adjust for desired listening level. Push the VOL knob back in to actuate the
automatic squelch.
The left portion of the digital display readout is allocated for COMM ACTIVE,
and COMM STANDBY frequencies with a “T” between them to indicate
TRANSMIT and an “R” to indicate RECEIVE modes of operation.
Select the desired operating frequency in the standby display by rotating the
Frequency Select Knobs either clockwise or counter-clockwise. A clockwise
rotation will increment the previous frequency while a counterclockwise
rotation will decrement the previous frequency.
SECTION 7 DESCRIPTION & OPERATION
GENERAL
All controls required to operate the KX 155A/165A are located on the
unit front panel. (See Figure 3-1.)
COMM TRANSCEIVER
Rotate the VOL knob clockwise from the OFF position. Pull the VOL knob out
and adjust for desired listening level. Push the VOL knob back in to actuate the
automatic squelch.
The left portion of the digital display readout is allocated for COMM ACTIVE,
and COMM STANDBY frequencies with a “T” between them to indicate
TRANSMIT and an “R” to indicate RECEIVE modes of operation.
Select the desired operating frequency in the standby display by rotating the
Frequency Select Knobs either clockwise or counter-clockwise. A clockwise
rotation will increment the previous frequency while a counterclockwise
rotation will decrement the previous frequency.
SECTION 9
PA-28-181, ARCHER III SUPPLEMENT 5
SECTION 9
PA-28-181, ARCHER III SUPPLEMENT 5
ISSUED: JULY 12, 1995 REPORT: VB-1611
REVISED: APRIL 3, 1997 9-29
ISSUED: JULY 12, 1995 REPORT: VB-1611
REVISED: APRIL 3, 1997 9-29

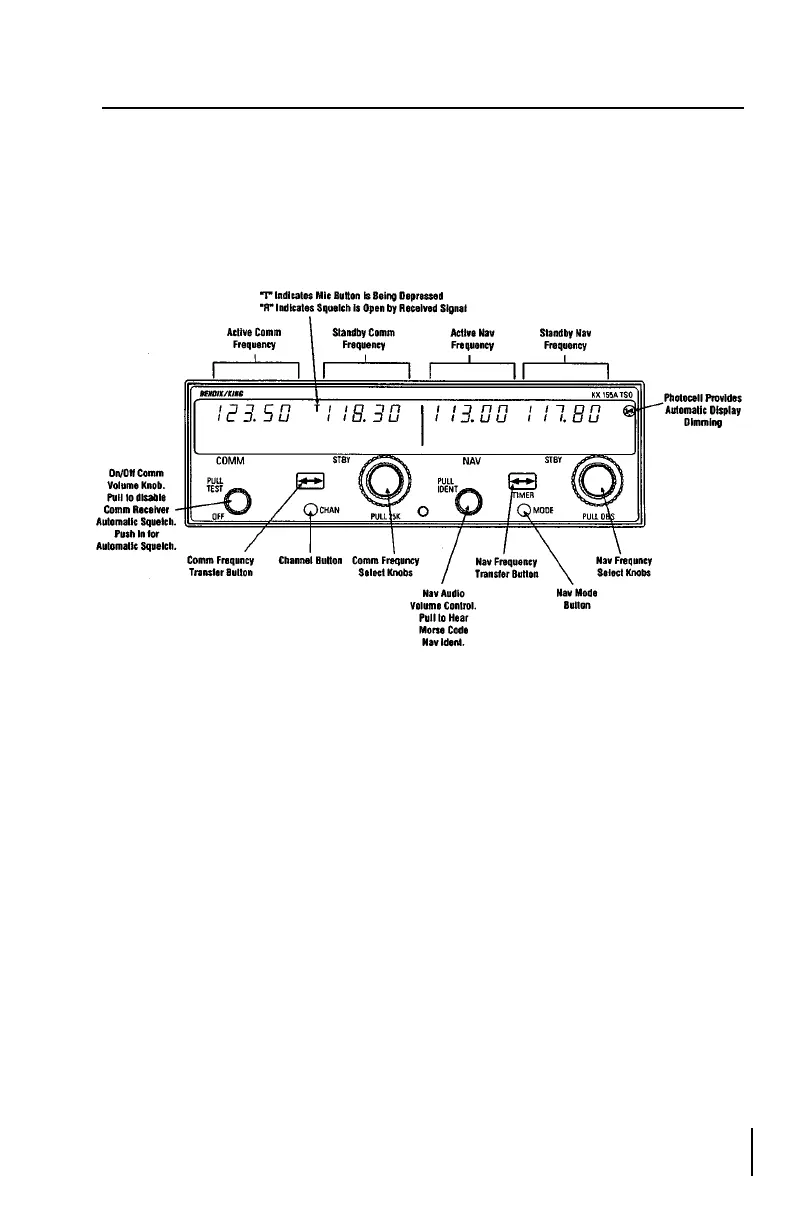

FIGURE 3-1
KX 155A CONTROL FUNCTIONS
FIGURE 3-1
KX 155A CONTROL FUNCTIONS
