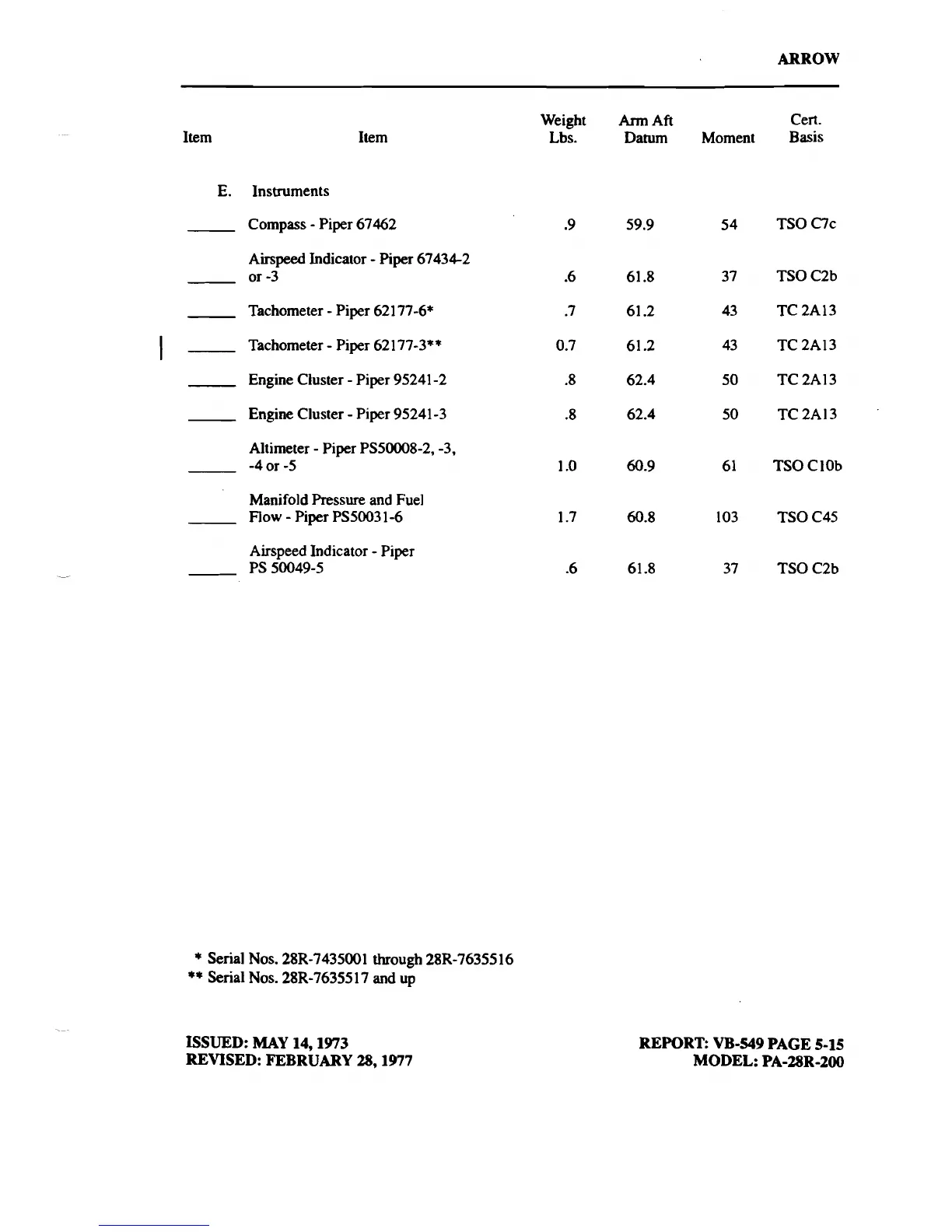

Piper Cherokee Arrow II User Manual

ARROW
Item Item
E. Instruments
Compass
- Piper 67462
Airspeed Indicator
- Piper 67434-2
or -3
Tachometer
- Piper 621 77-6*
I -
Tachometer - Piper 621 77-3**
Engine Cluster
- Piper 95241 -2
Engine Cluster
- Piper 95241 -3
Altimeter
- Piper PS50008-2, -3,
-4 or -5
Manifold Pressure and Fuel
Flow
- Piper PS5003 1-6
Airspeed Indicator
- Piper
PS 50049-5
* Serial Nos. 28R-7435001 through 28R-76355 16
** Serial Nos. 28R-76355 17 and up
ISSUED: MAY 14,1973
REVISED: FEBRUARY 28,1977
Weight Arm Aft Cert.
Lbs. Datum Moment Basis
.9 59.9 54 TSO C7c
.6 61.8 37 TSO C2b
.7 61.2 43 TC 2A13
0.7 61.2 43 TC 2A13
.8 62.4 50 TC 2A13
.8 62.4 50 TC 2A13
1 .O 60.9 61 TSOClOb
1.7 60.8 103 TSO C45
-6 61.8 37 TSO C2b
REPORT: VB-549 PAGE 5-15
