Piper Cherokee Arrow II User Manual

ARROW
Revision

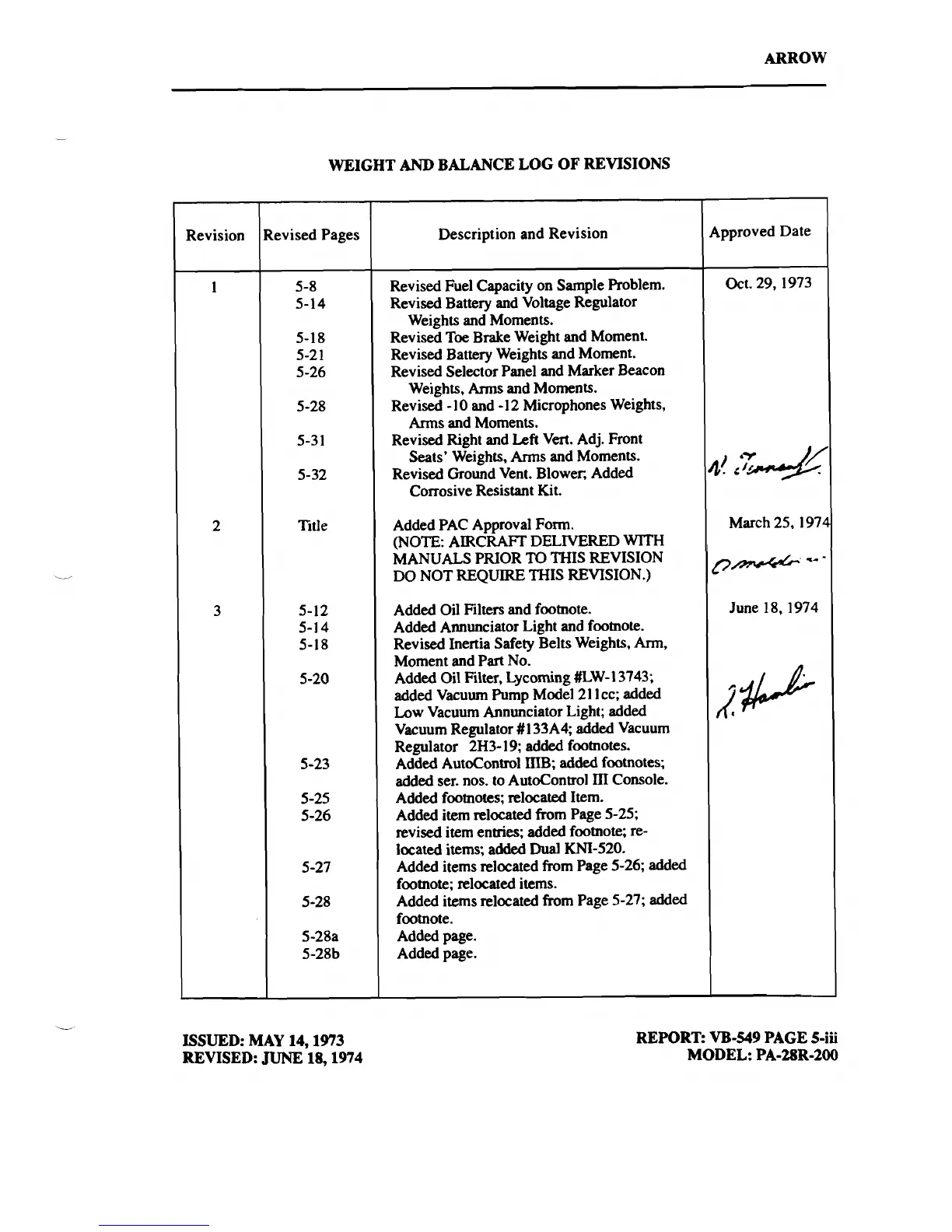

WEIGHT AND BALANCE LOG OF REVISIONS
Description and Revision
Title
Revised Fuel Capacity on Sample Problem.
Revised Battery and Voltage Regulator
Weights and Moments.
Revised
Toe Brake Weight and Moment.
Revised Battery Weights and Moment.
Revised Selector Panel and Marker Beacon
Weights, Arms and Moments.
Revised
- 10 and - 12 Microphones Weights,
Arms and Moments.
Revised Right and
hft Vert. Adj. Front
Seats' Weights, Arms and Moments.
Revised Ground Vent. Blower, Added
Corrosive Resistant Kit.
Added PAC Approval Form.
(NOTE: AIRCRAFT DELIVERED
WITH
MANUALS PRIOR TO THIS REVISION
DO NOT REQUIRE THIS REVISION.)
Added Oil and footnote.
Added Annunciator Light and footnote.
Revised Inertia Safety Belts Weights, Arm,
Moment and Part No.
Added
Oil Filter, Lycoming #LW-13743;
added Vacuum Pump Model 21 1 cc; added
Low Vacuum Annunciator Light; added
Vacuum Regulator
#133A4; added Vacuum
Regulator
2H3- 19; added footnotes.
Added
AutoControl IIIB; added footnotes;
added ser. nos. to
AutoControl III Console.
Added footnotes; relocated Item.
Added item relocated from Page 5-25;
revised item
enaies; added footnote; re-
located items;
added Dual KNI-520.
Added items relocated fiom Page 5-26; added
footnote; relocated items.
Added items relocated from Page 5-27; added
footnote.
Added page.
Added page.
ISSUED: MAY 14,1973
REVISED:
JUNE 18,1974
REPORT: VB-549 PAGE 5-iii
MODEL: PA-28R-200
