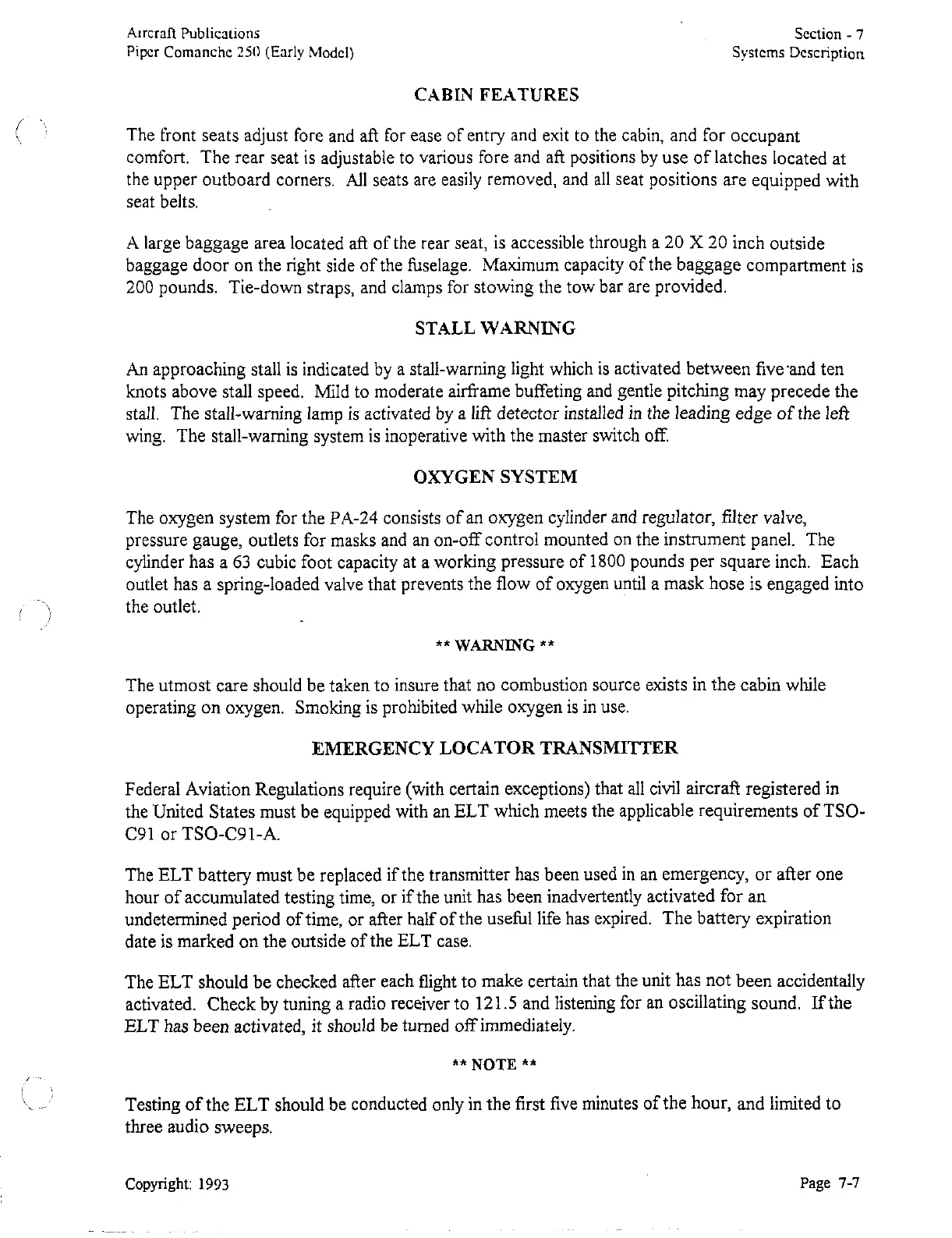

Alrcralt Publications
Pipcr Comanche
250
(E:irly Modcl)
Section
-
7
Systcms
Description
CABIN
FEATURES
The front seats adjust fore and af't for ease of entry and exit to the cabin, and for occupant
comfort. The rear seat is adjustable to various fore and af't positions by use of latches located at
the upper outboard corners. All seats are easily removed, and all seat positions are equipped with
seat belts.
A
large baggage area located aft of the rear seat, is accessible through a 20
X
20 inch outside
baggage door on the right side of the fuselage. Maximum capacity of the baggage compartment
is
200 pounds. Tie-down straps, and clamps for stowing the tow bar are provided.
STALL
WARNZNG
An
approaching stall is indicated by a stall-warning light which is activated between fivemd ten
knots above stall speed. Mild to moderate airframe buffeting and gentle pitching may precede the
stall. The stall-warning lamp is activated by a lift detector installed in the leading edge of the left
wing. The stall-warning system is inoperative with the master switch off
OXYGEN SYSTEM
The oxygen system for the
PA-24
consists of an oxygen cylinder and regulator, filter valve,
pressure gauge, outlets for masks and an on-off control mounted on the instrument panel. The
cylinder has a
63
cubic foot capacity at a working pressure of 1800 pounds per square inch. Each
outlet has a spring-loaded valve that prevents the flow of oxygen until a mask hose is engaged into
the outlet.
**
WARNING
**
The utmost care should be taken to insure that no combustion source exists in the cabin while
operating on oxygen. Smoking is prohibited while oxygen is in use.
EMERGENCY LOCATOR TRANSMITTER
Federal Aviation Regulations require (with certain exceptions) that all civil aircraft registered in
the United States must be equipped with an ELT which meets the applicable requirements of TSO-
C91
01
TSO-C91-A.
The ELT battery must be replaced if the transmitter has been used in an emergency, or af'ter one
hour of accumulated testing time, or if the unit has been inadvertently activated for an
undetermined period of time, or after half of the usefil life has expired. The battery expiration
date is marked on the outside of the ELT case.
The ELT should be checked
after each flight to make certain that the unit has not been accidentally
activated. Check by tuning a radio receiver to 121.5 and listening for an oscillating sound. If the
ELT has been activated, it should be turned off immediately.
**
NOTE
*'
Testing
of
the ELT should be conducted only in the first five minutes of the hour, and limited to
three audio sweeps.
Copyright:
1993
Page
7-7
