Pipcr Cornmchc 250 (Early Model)
Section
- 6
Weight and Balance

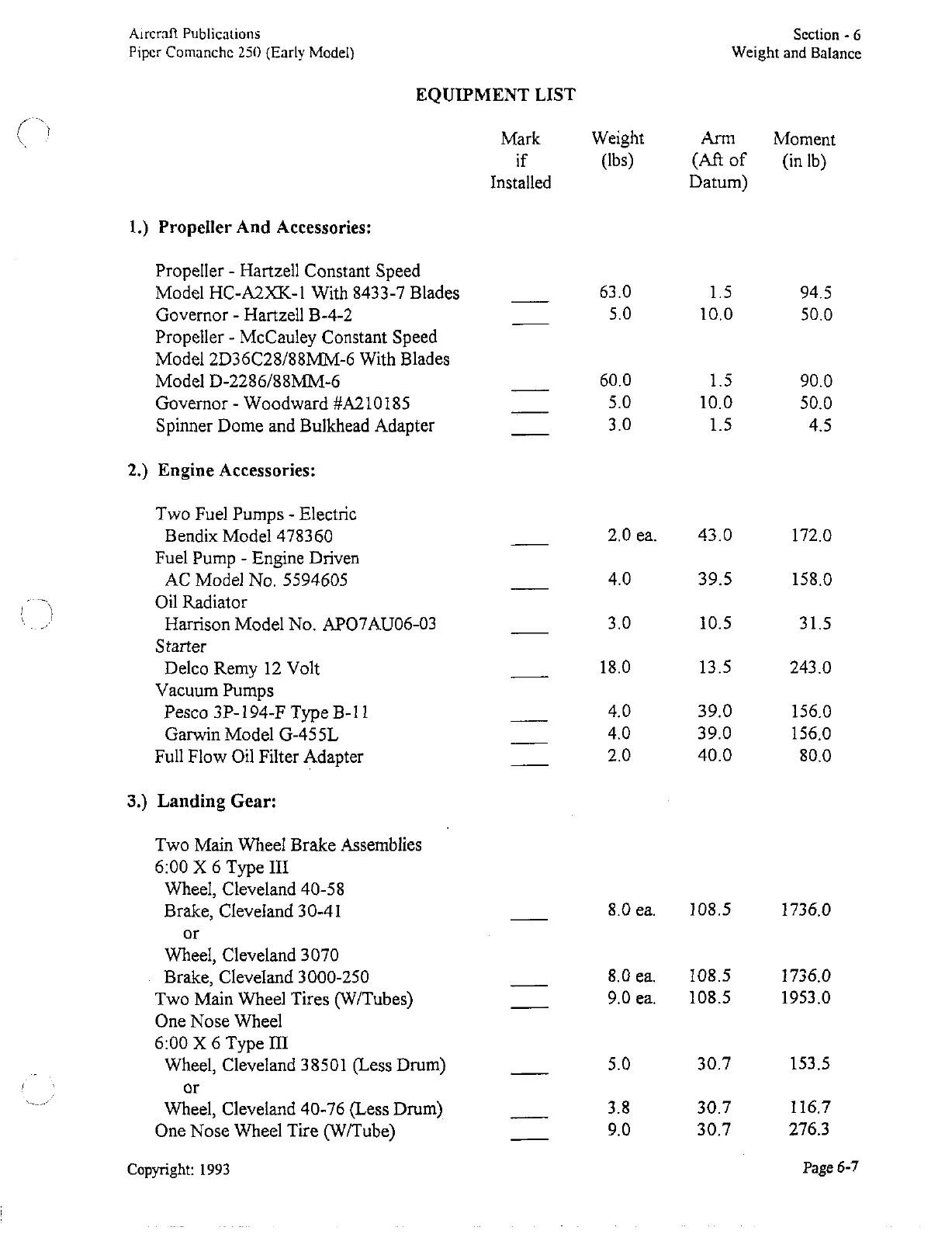

EQUIPMENT LIST
1.) Propeller And Accessories:
Propeller
- Hartzell Constant Speed
Model HC-A2XK-1 With 8433-7 Blades
Governor
- Hartzell B-4-2
Propeller
- McCauley Constant Speed
Model 2D36C28188MM-6 With Blades
Model
D-2286188MM-6
Governor
- Woodward #A210185
Spinner Dome and Bulkhead Adapter
2.) Engine Accessories:
Two Fuel Pumps
- Electric
Bendix Model 478360
Fuel Pump
- Engine Driven
AC Model No. 5594605
Oil Radiator
Harrison Model No. AP07AU06-03
Starter
Delco
Remy 12 Volt
Vacuum Pumps
Pesco 3P- 194-F Type B-
1 1
Garwin Model G-455L
Full Flow Oil Filter Adapter
3.) Landing Gear:
Two Main Wheel Brake Assemblies
6:00
X 6 Type I11
Wheel, Cleveland 40-58
Brake, Cleveland 30-4 1
or
Wheel, Cleveland 3070
Brake, Cleveland 3000-250
Two Main Wheel Tires
(%'/Tubes)
One Nose Wheel
6:00
X 6 Type I11
Wheel, Cleveland 38501 (Less Drum)
or
Wheel, Cleveland 40-76 (Less Drum)
One Nose Wheel Tire (W/Tube)
Copyright: 1993
Weight
(W
63.0
5.0
60.0
5.0
3.0
2.0 ea.
4.0
3.0
18.0
4.0
4.0
2.0
8.0 ea.
8.0 ea.
9.0 ea.
5.0
3.8
9.0
Arm
(Aft of
Datum)
1.5
10.0
1.5
10.0
1.5
43.0
39.5
10.5
13.5
39.0
39.0
40.0
108.5
108.5
108.5
30.7
30.7
30.7
Moment
(in
lb)
94.5
50.0
90.0
50.0
4.5
172.0
158.0
31.5
243.0
156.0
156.0
80.0
1736.0
1736.0
1953.0
153.5
116.7
276.3
Page 6-7
