Piper PA-24-250 Comanche User Manual

AircraR Publications

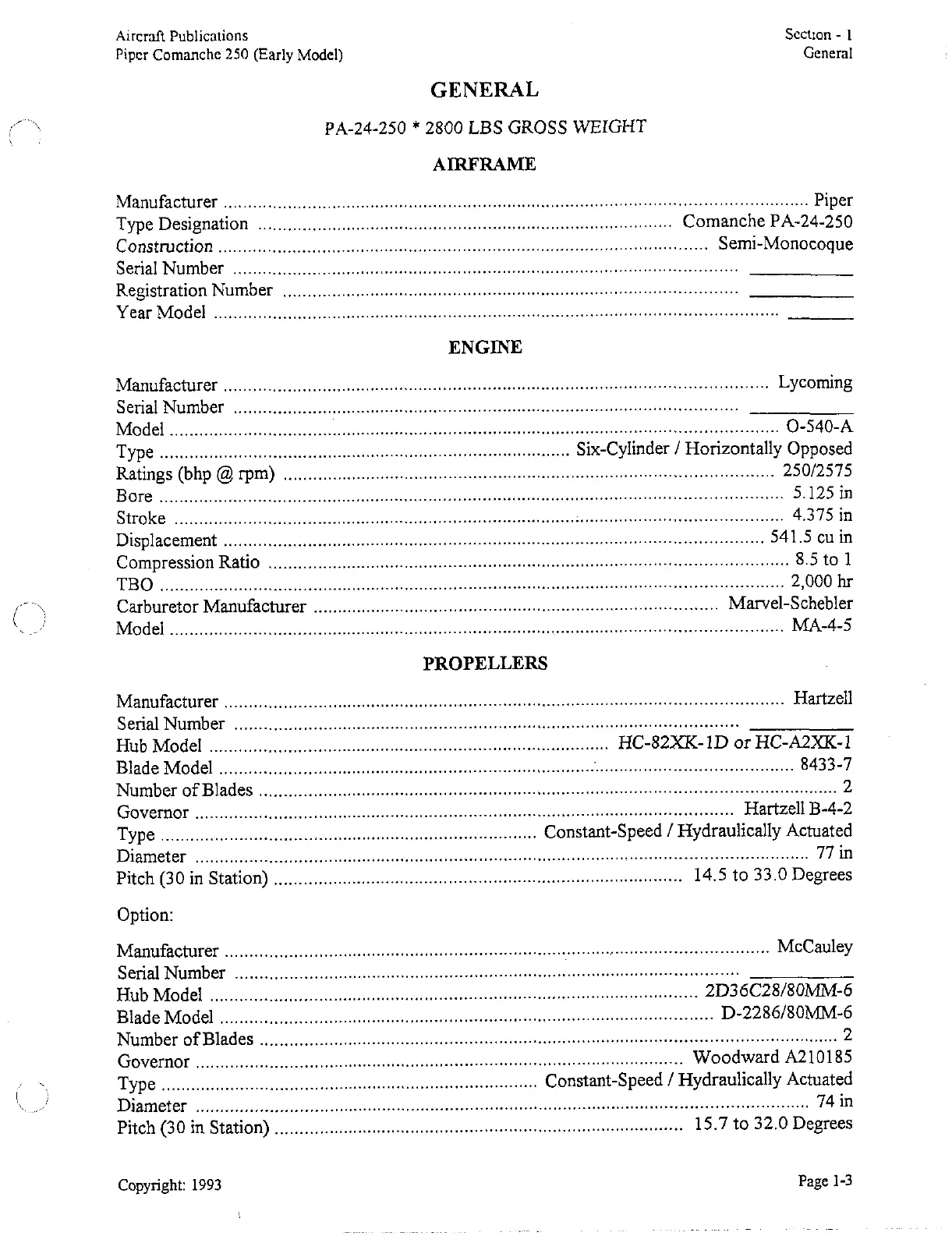

Pipcr Comanche 250 (Early Model)
GENERAL
PA-24-250 * 2800 LBS GROSS WEIGHT
AIRFRAME
Scctlon - 1
General
Manufacturer Piper
Type Designation
................................................................................. Comanche PA-24-250
Construction
................... .. ....................................................................... Semi-Monocoque
Serial Number
.......................................................................................................
..........................................................................................
Registration Number
Year Model
........................ .. ...................................................................................
ENGINE
Manufacturer .......................... ... ......................................................................... Lycorning
Serial Number
.....................................................................................................
Model ........................................................................................................................ 0-540-A
Type
............................................................................. Six-Cylinder I Horizontally Opposed
Ratings (bhp
@ rpm) ................................................................................................. 25012575
Bore
........................................................................................................................ 5.125 in
Stroke
......................................................................................................................... 4.375 in
......................................................................
..............................
Displacement .... 541.5 cu in
...............................................................................
Compression Ratio ...................... ..
8.5 to 1
............................................................................................................................
TBO 2,000 hr
......................................................
Carburetor Manufacturer ................... .... Marvel-Schebler
Model
........................................................................................................................... MA-4-5
PROPELLERS
..........
Manufacturer ............................... Hartzell
Serial Number
....................................................................................................
.................................................................................
Hub Model
HC-82XK- 1D or HC-A2XK-I
Blade Model
............................ ............ 8433-7
.................................
Number of Blades ................................... .... ............................................................................... 2
...............................................................................
................... Governor .... Hartzell B-4-2
...........................................................................
Type Constant-Speed / Hydraulically Actuated
Diameter
........................................................................................................................... 77 in
Pitch (30 in Station)
................................................................................ 14.5 to 33.0 Degrees
Option:
Manufacturer
...................... .. .................................................................................. McCauley
................................................................
Serial Number ...................... .................
Hub Model ............................. .. .............................................................. 2D36C28/80MM-6
Blade Model
........................... .. ................................................................... D-2286/80MM-6
Number of Blades
... .......................................................................................
2
......................
..................................................................................................
Governor Woodward A210185
.........................................................................
Type Constant-Speed / Hydraulically Actuated
Diameter
........................................................................................................................ 74 in
..............................................
............................
Pitch (30 in Station) .... 15.7 to 32.0 Degrees
Copyright: 1993 Page 1-3

Piper PA-24-250 Comanche Specifications

General

Brand	Piper
Model	PA-24-250 Comanche
Category	Aircrafts
Language	English
