Piper RIP-1 User Manual

PIPER PRODUCTS, INC.
THREE PLACE DECIMAL
PIPER PRODUCTS, INC. ANY
DO NOT SCALE DRAWING
SHEET 4 OF 4
REV
DRAWING IS THE SOLE PROPERTY OF
PIPER PRODUCTS IS PROHIBITED.
REPRODUCTION IN PART OR AS A WHOLE
THE INFORMATION CONTAINED IN THIS
SCALE: 1:24
WITHOUT THE WRITTEN PERMISSION OF
RIP-1-AUTO PLUMBING
SHEET 4 OF 4 ONLY
UNLESS OTHERWISE SPECIFIED:
DWG. NO.
WEIGHT:
B
PROPRIETARY AND CONFIDENTIAL
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
DATE
NAME
TITLE:
SIZE
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
RIP-1-AUTO
PLUMBING
21
DETAIL A
SCALE 1 : 4
20
22
5 DETAIL B
SCALE 1 : 4
16
8
17
18
19
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 701915 BRASS FTG BULKHEAD ADAPTER 1/8 1
2 701960 AQUA-FLOW #C-25 1
3 701508 S/S FTG NIPPLE 1/8 x 3 1
4 701540 BRASS PIPER COUPLER 1/8" 1
5 701016 NYLON MALE CONNECTOR PP4MC2 3
6 11-0000511-000 AUTO HUMIDITY STEAM CHAMBER 1
7 701012 NYLON MALE CONNECTOR PP6MC6 1
8 305213 GASKET FOR STEAM;ADAPT-O-MATIC 2
9 704300 ELEMENT, IMMERSION 120V/1500W; 1
10 705786 Needle Valve DC 3000 1
11 701015 NYLON SWIVEL ELBOW PP4MES4 1
12 701027 Nylon Fitting PP4MC4 1
13 705864 SOLENOID VALVE REG.STEAM&HUM 1
14 701020 NYLON UNION TEE PP6TU4 2
15 701024 NYLON ELBOW UNION PP6EU6 1
16 701929 BRASS FTG TANK NUT CTR/HOLE 1
17 701019 Nylon Swivel Elbow PP4MES2 1
18 11-0000510-000 AUTO HUMIDITY FLOAT CHAMBER 1
19 705476 SWITCH FLOAT LIQUID LEVEL 1
20 701018 NYLON SWIVEL ELBOW PP6MES6 1
21 701930 VALVE BALL 3/8 x 3/8 IH4 1
22 701931 KNOB, FOR STEAM BALL VALVE 1
23 701032 1/4" NYLON TUBING
24 701034 3/8" NYLON TUBING
NOTE:
SHORT S/S NIPPLE ONLY FOR STEAM CHAMBER IS PART NUMBER 12-0005134-000
THIS IS MADE BY CUTTING PURCHASE PART NUMBER 701508 CUT IN HALF
23
2
1
3
4
5
5
7
8
9
10
11
1213141415
6
2324
B
A

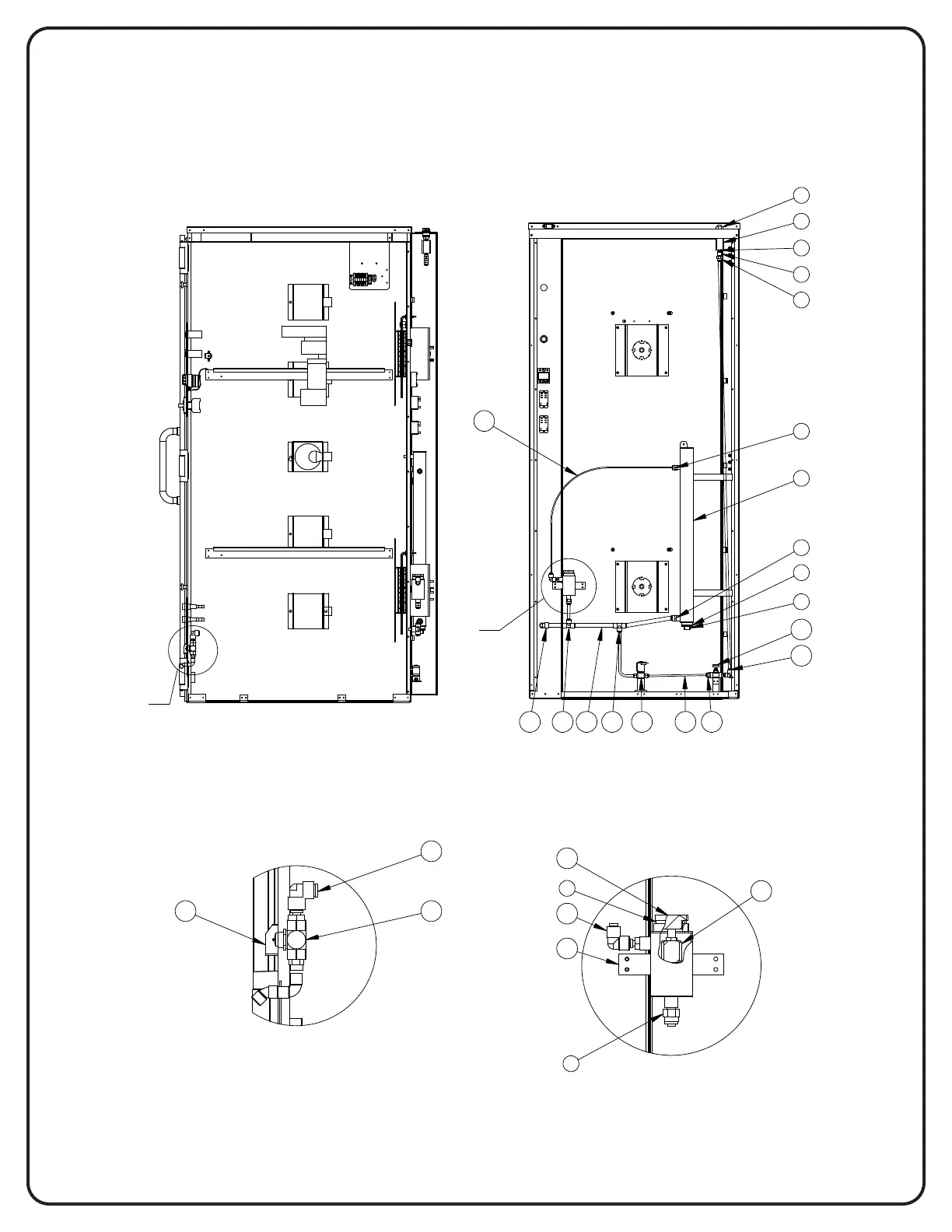

REPLACEMENT PARTS
RIP-1 AUTO HUMIDITY
PIPER PRODUCTS, INC.
THREE PLACE DECIMAL
PIPER PRODUCTS, INC. ANY
DO NOT SCALE DRAWING
SHEET 4 OF 4
REV
DRAWING IS THE SOLE PROPERTY OF
PIPER PRODUCTS IS PROHIBITED.
REPRODUCTION IN PART OR AS A WHOLE
THE INFORMATION CONTAINED IN THIS
SCALE: 1:24
WITHOUT THE WRITTEN PERMISSION OF
RIP-1-AUTO PLUMBING
SHEET 4 OF 4 ONLY
UNLESS OTHERWISE SPECIFIED:
DWG. NO.
WEIGHT:
B
PROPRIETARY AND CONFIDENTIAL
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
DATE
NAME
TITLE:
SIZE
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
RIP-1-AUTO
PLUMBING
21
DETAIL A
SCALE 1 : 4
20
22
5 DETAIL B
SCALE 1 : 4
16
8
17
18
19
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 701915 BRASS FTG BULKHEAD ADAPTER 1/8 1
2 701960 AQUA-FLOW #C-25 1
3 701508 S/S FTG NIPPLE 1/8 x 3 1
4 701540 BRASS PIPER COUPLER 1/8" 1
5 701016 NYLON MALE CONNECTOR PP4MC2 3
6 11-0000511-000 AUTO HUMIDITY STEAM CHAMBER 1
7 701012 NYLON MALE CONNECTOR PP6MC6 1
8 305213 GASKET FOR STEAM;ADAPT-O-MATIC 2
9 704300 ELEMENT, IMMERSION 120V/1500W; 1
10 705786 Needle Valve DC 3000 1
11 701015 NYLON SWIVEL ELBOW PP4MES4 1
12 701027 Nylon Fitting PP4MC4 1
13 705864 SOLENOID VALVE REG.STEAM&HUM 1
14 701020 NYLON UNION TEE PP6TU4 2
15 701024 NYLON ELBOW UNION PP6EU6 1
16 701929 BRASS FTG TANK NUT CTR/HOLE 1
17 701019 Nylon Swivel Elbow PP4MES2 1
18 11-0000510-000 AUTO HUMIDITY FLOAT CHAMBER 1
19 705476 SWITCH FLOAT LIQUID LEVEL 1
20 701018 NYLON SWIVEL ELBOW PP6MES6 1
21 701930 VALVE BALL 3/8 x 3/8 IH4 1
22 701931 KNOB, FOR STEAM BALL VALVE 1
23 701032 1/4" NYLON TUBING
24 701034 3/8" NYLON TUBING
NOTE:
SHORT S/S NIPPLE ONLY FOR STEAM CHAMBER IS PART NUMBER 12-0005134-000
THIS IS MADE BY CUTTING PURCHASE PART NUMBER 701508 CUT IN HALF
23
2
1
3
4
5
5
7
8
9
10
11
1213141415
6
2324
B
A
