Pit Boss 7 Series User Manual

ENGLISH
6
  
MODEL UNIT ASSEMBLED (WxHxD) UNIT WEIGHT COOKING AREA TEMP. RANGE DIGITAL FEATURES

71
734 x 1,468 x 709 mm
/ 28.8 x 57.8 x 27.9 in
64.3 kg
/ 141.09 lb
Cubic Cooking: 0.16 m / 5.6 ft
TOTAL - 11,715 cm / 1,815 sq. in.
65-215°C
/ 150-420°F
Ten temperature presets,
start-up and cool-down
cycles, electric igniter

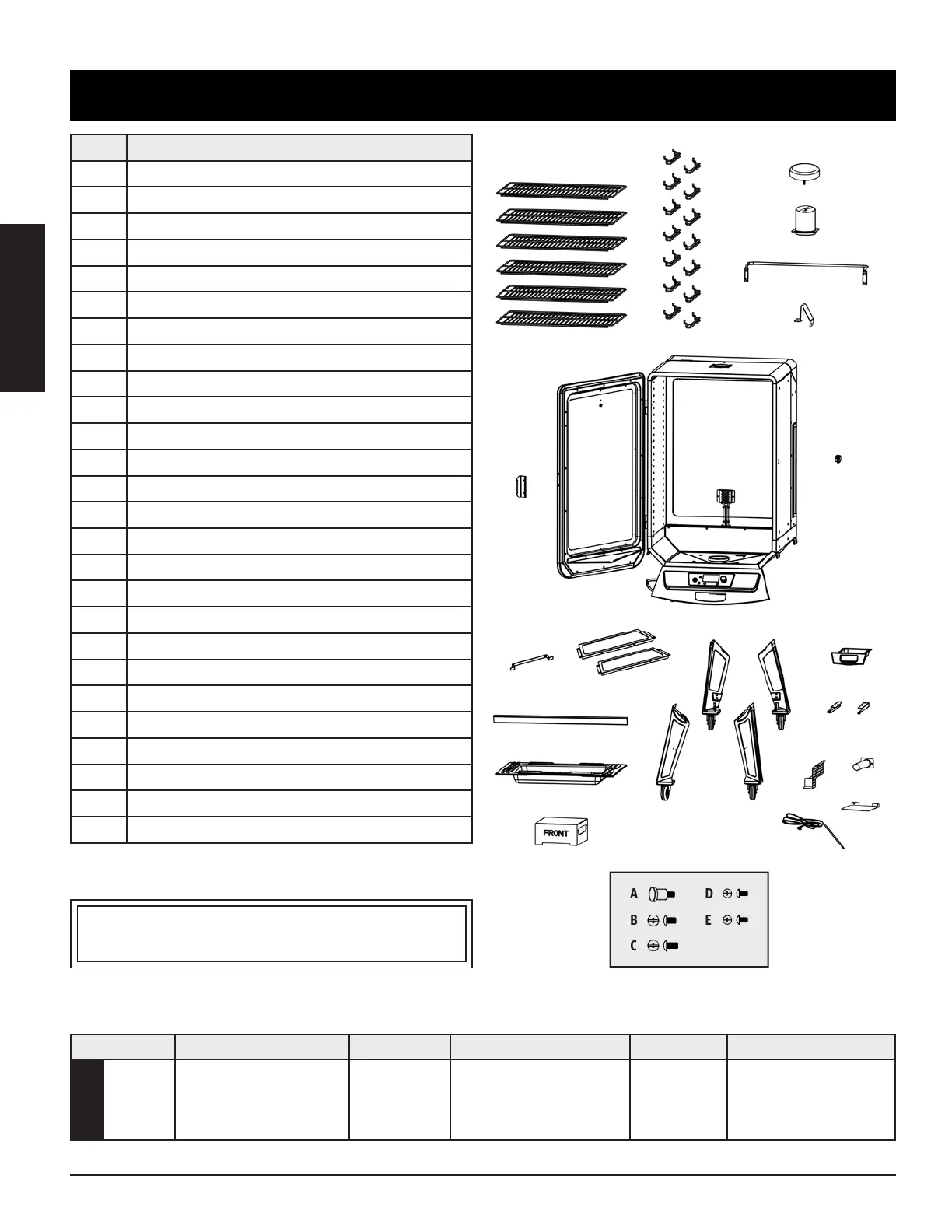

Part# Description
1 Cooking Grids (x6)
2 Cooking Grid Support Brackets (x14)
3 Chimney Cap (x1)
4 Chimney Stack (x1)
5 Back Handle (x1)
6 Lid Stopper (x1)
7 Main Cabinet (x1)
8 Cabinet Door Handle (x1)
9 Cabinet Door Latch (x1)
10 Power Cord Bracket (x1)
11 Support Panel (x2)
12 Support Bar (x1)
13 Water Pan (x1)
14 Flame Tamer (x1)
15 Support Leg With Wheel (x4)
16 Grease Tray (x1)
17 Grease Tray Brackets (x2)
18 Wire Components Housing (x1)
19 Grease Exhaust Tube (x1)
20 Heat Shield (x1)
21 Meat Probe (x1)
A Door Knob (x1)
B ¼–20x½" Screw (x12)
C ¼–20x⅝" Screw (x4)
D #10–24x½" Screw (x34)
E #10–24x⅓" Screw (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Service if parts are missing when assembling the unit.
PB – ELECTRIC REQUIREMENTS
110-120V, 60HZ, 250W, 3-PRONG GROUNDED PLUG
1
2
5
3
4
11
12
13
15
19
20
21
17
18
16
9
7
8
10
6
14
151
152
153
154
171 172






Pit Boss 7 Series Specifications

General

Fuel Type	Wood Pellets
Material	Steel
Digital Control	Yes
Wheels	Yes
Temperature Range	180°F - 500°F
Number of Cooking Racks	4
Construction	Steel
