IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed.

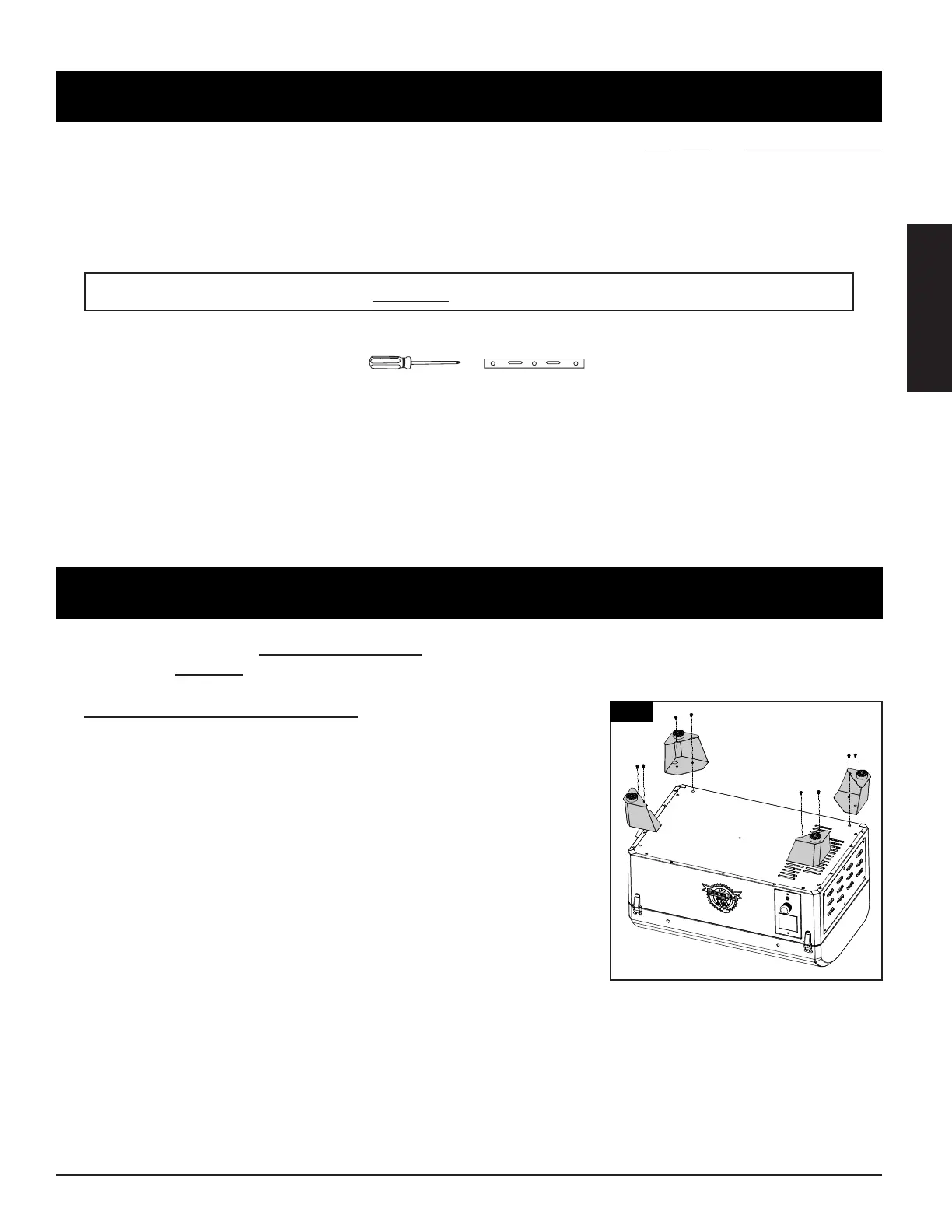

1.
Parts Required:
1 x Main Barrel / Hopper Assembly (#5)
2 x Foot A (#9)
2 x Foot B (#10)
Installation:
• Remove the eight pre-installed screws from the bottom panel
corners of the unit, two from each corner.
• Secure Foot A to the bottom panel corner (closest to the control
board) using two of the screws previously removed. Repeat same
installation on opposite corner with other Foot A.
• Secure each Foot B on the two remaining bottom panel corners, using
two screws in each.
Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister pack
after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the grill before
assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do not attempt to
assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss® Customer Service for parts: Monday
through Sunday, 4am - 8pm PST (EN/FR/ES).
service@pitboss-grills.com | Toll-Free: 1-877-303-3134 | Toll-Free Fax: 1-877-303-3135
IMPORTANT: To ease installation, using two people is helpful (but not necessary) when assembling this unit.
Tools required for assembly: screwdriver and level.
Tools not included.
1
9
9
10
5
10
