ENGLISH
4

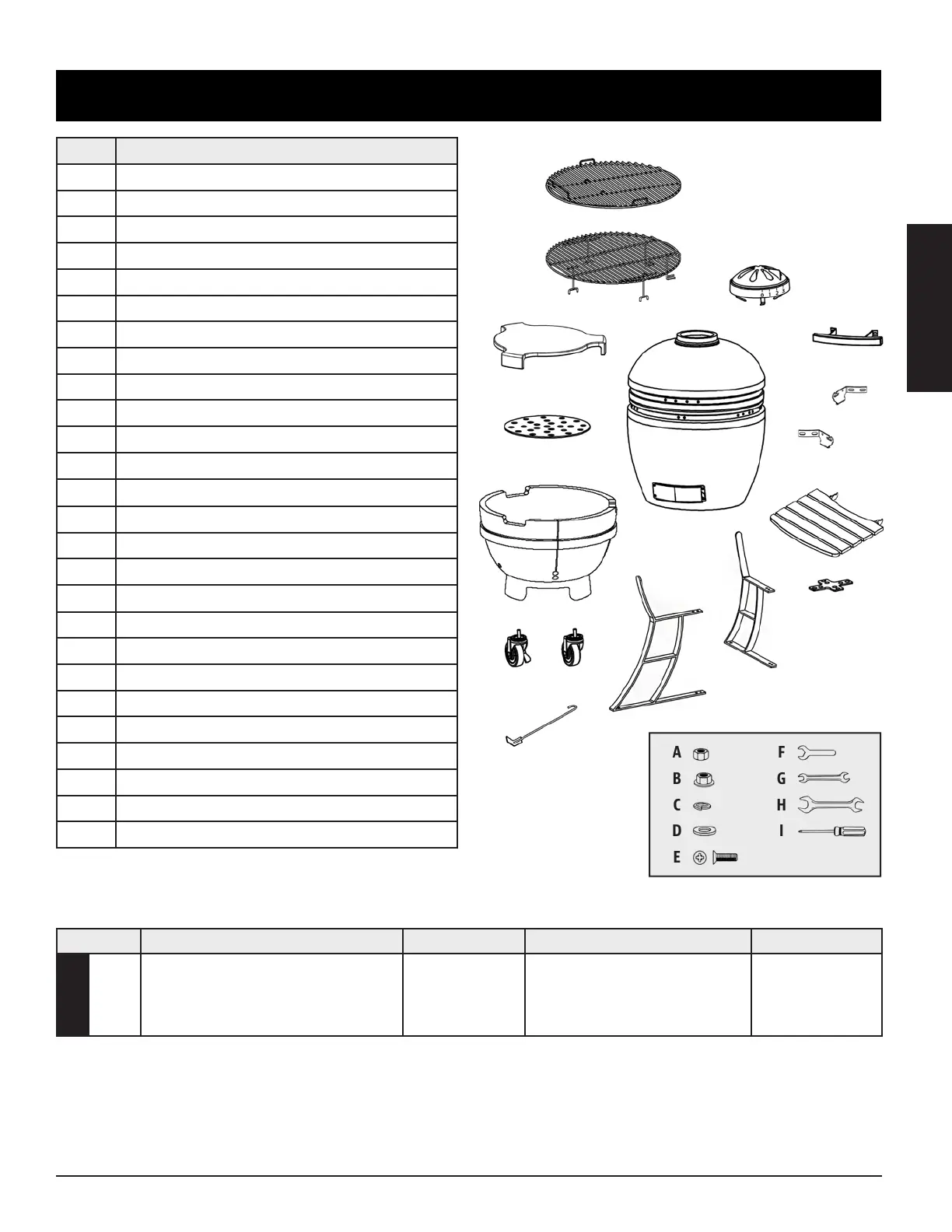

Part# Description
1 Main Cooking Grid (x1)
2 Upper Cooking Grid (x1)
3 Top Damper Vent (x1)
4 Ceramic Body (x1)
5 Lid Handle (x1)
6 Right Side Shelf Bracket (x2)
7 Left Side Shelf Bracket (x2)
8 Side Shelf (x2)
9 Heat Deflector (x1)
10 Charcoal Plate (x1)
11 Firebox (x1)
12 Long Support Bracket (x2)
13 Short Support Bracket (x2)
14 Support Bracket Crosspiece (x2)
15 Locking Caster Wheel (x2)
16 Caster Wheel (x2)
17 Ash Tool (x1)
Nut - Small (x16)
Nut - Large (x4)
Locking Washer (x16)
D Washer (x16)
E Screw (x16)
F Flat Wrench (x1)
G Wrench 9/11 (x1)
H Wrench 17/19 (x1)
I Screwdriver (x1)
NOTE: Due to ongoing product development, parts are subject to change without notice. Contact
Customer Service if parts are missing when assembling the unit.
1
2
3
4
5
7
8
9
10
12
11
13
15
14
16
17
6
MODEL ASSEMBLED (WxHxD) WEIGHT COOKING AREA TEMP. RANGE
22
1,166 x 1,321 x 739 mm / 45.9” x 52” x 29.1”
81 kg / 178.6 lbs
Main
- 2,341 cm / 274 sq. in.
Upper Rack
- 1,929 cm / 299 sq. in.
TOTAL
- 580 cm / 573 sq. in.
up to 371°C / 700°F
