ENGLISH
5
Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister
pack after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the grill
before assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do not attempt
to assemble. Shipping damage is not covered under warranty. Contact Bunnings Australia or Genesis International Corporation
Pty Ltd. for Customer Service.
service@genesiscorp.com.au | +61 8 9248 9822
IMPORTANT: To ease installation and avoid injury, use two people when assembling this appliance.
Tools required for assembly: wrench and screwdriver.
Tools included in hardware blister pack.
IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed. Hardware combination involving a locking washer and
washer should be installed with the locking washer closest to the head of the screw.

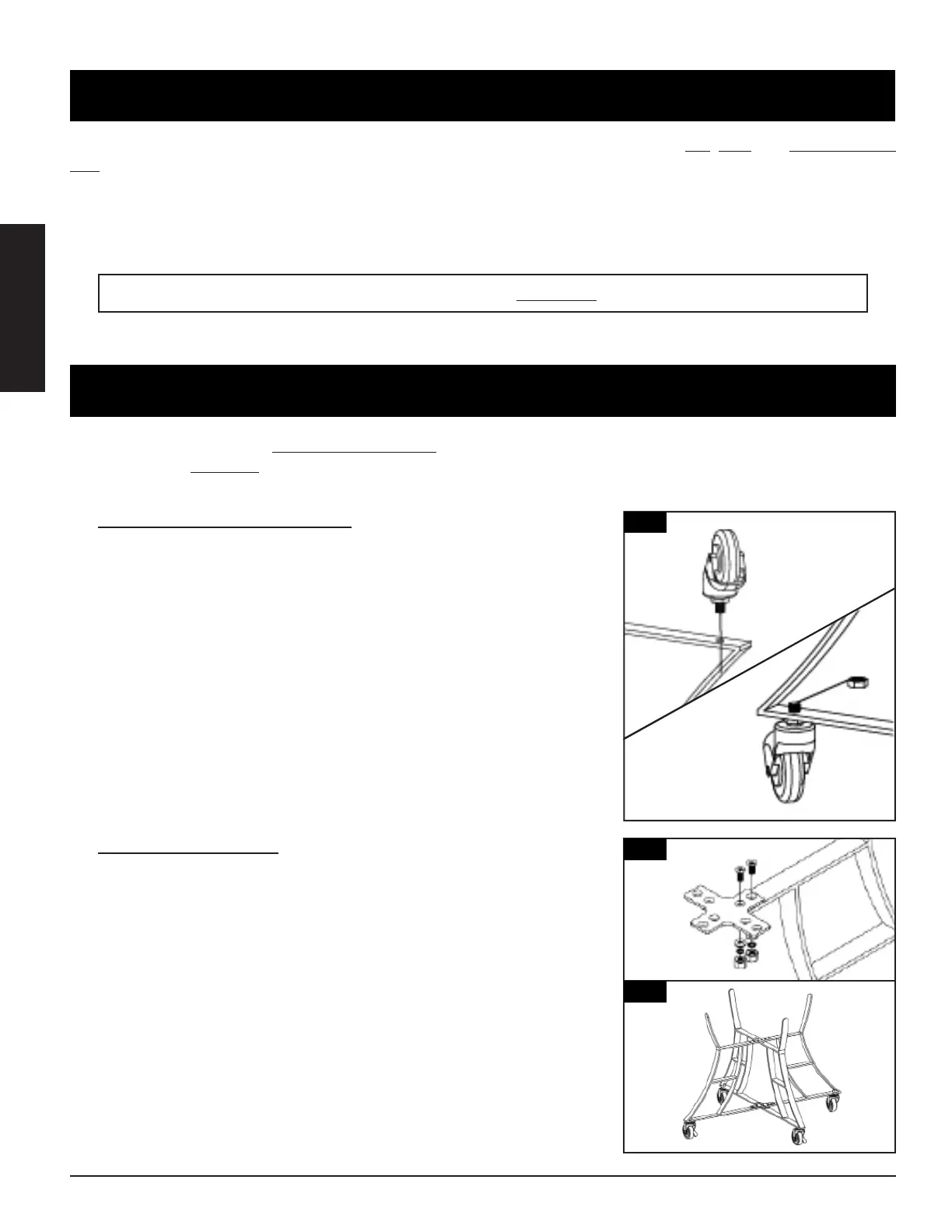

1.
Parts Required:
2 x Long Support Bracket
(#12)
2 x Short Support Bracket
(#13)
2 x Locking Caster Wheel
(#15)
2 x Caster Wheel
(#16)
4 x Large Nut
(#B)
Installation:
• Attach the four pre-threaded caster wheels to each of the four support
brackets by hand-tightening them into the hole. Secure each caster
wheels with large nut.
NOTE: To keep support brackets level, ensure the bolt on the wheel
does not extend the large nut.
2.
Parts Required:
2 x Support Bracket Crosspiece
(#14)
16 x Screw
(#E)
16 x Washer
(#D)
16 x Locking Washer
(#C)
16 x Nut
(#A)
Installation:
• To assemble the cart, attach the support bracket crosspiece to one
of the four support brackets. Secure the support brackets to the
crosspieces by using a screw, locking washer, washer, and nuts. Note
the position shown in 2.
• Continue to attach the crosspieces into the other three support
brackets. The cart is now complete. Note 2.
1
2
2
