Pit Boss PBV2G1 User Manual

12
9
6.

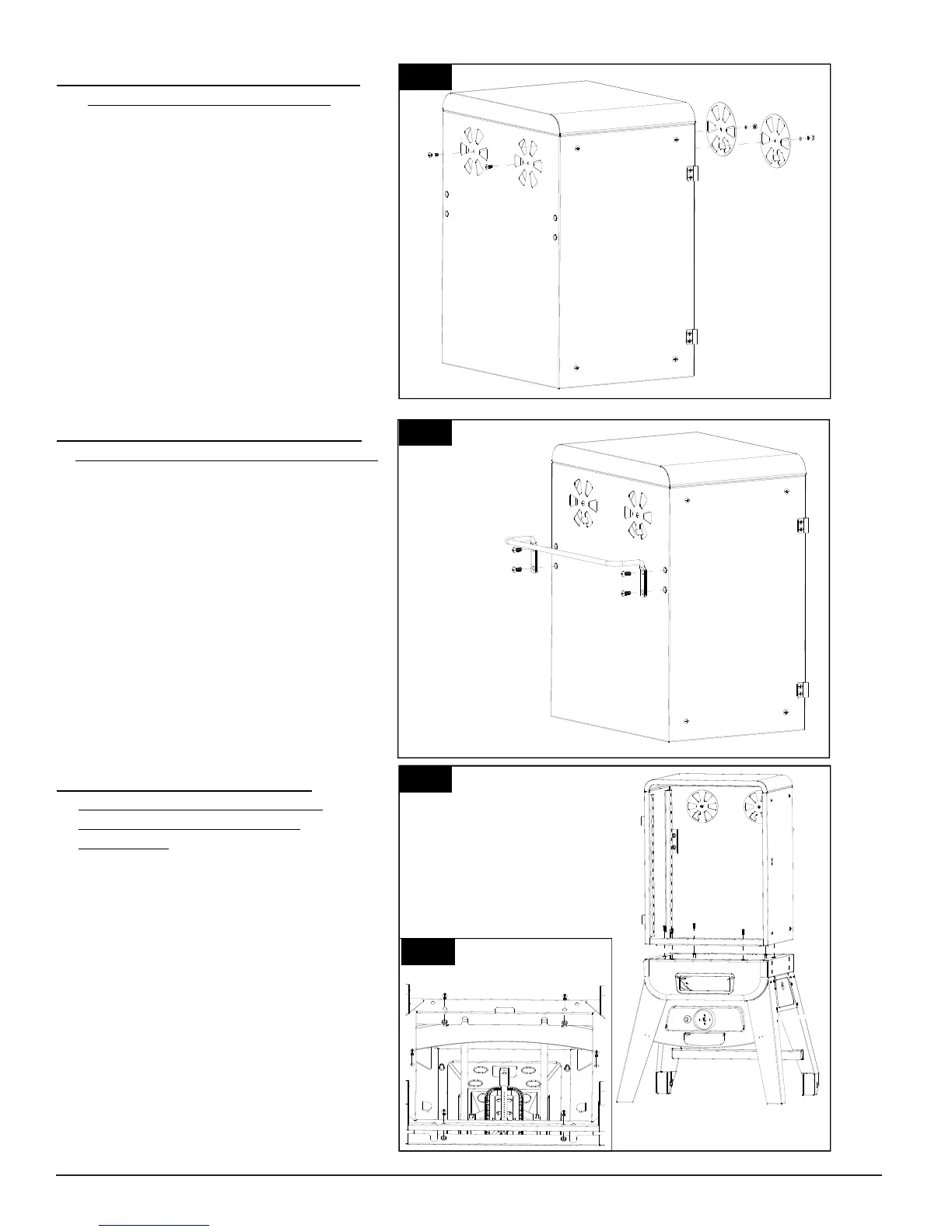

MOUNTING DAMPERS TO THE UPPER
SMOKER CABINET ASSEMBLY
Parts Required:
1 x Door Assembly (#10)
1 x Upper Smoker Cabinet Assembly (#2)
2 x Damper (#1)
2 x #10-24*1/2”Screw (#C)
2 x #10-24 Lock Nut (#D)
2 x M5 Spring Washer (#E)
Installation:
• Remove the Door Assembly (#10) and set
aside. Mount Dampers (#1)to the Upper
Smoker Cabinet Assembly (#2) using 2 x
#10-24*1/2”Screws (#C), 2 x M5 Spring
Washer (#E)and 2 x #10-24 Lock Nut (#D)as
Fig.6 shown.
Fig.6
7.
MOUNTING BACK HANDLE TO THE
UPPER SMOKER CABINET ASSEMBLY
Parts Required:
1 x Upper Smoker Cabinet Assembly (#2)
1 x Back Handle (#3)
4 x 1/4-20*5/8”(#A)
Installation:
• Mount Back Handle (#3) to the Upper
Smoker Cabinet Assembly (#2) using 4 x
1/4-20*5/8” (#A) as Fig.7 shown.
8. MOUNTING UPPER SMOKER
CABINET ASSEMBLY TO THE
LOWER SMOKER CABINET
ASSEMBLY
Parts Required:
1 x Upper Smoker Cabinet Assembly (#2)
1 x Lower Smoker Cabinet Assembly (#14)
6 x #10-24*1/2”(#C)
Installation:
• Mount Upper Smoker Cabinet Assembly
(#2)to the Lower Smoker Cabinet Assembly
(#14) using 6 x #10-24*1/2”(#C) as Fig.8.1 &
Fig.8.2 shown.
Note: Assemble all (6) screws, align the
Upper Cabinet to the Lower Cabinet then
tighten all screws as Fig 8.1 and Fig 8.2
shown.
Fig.8.1
Fig.7
#1
-------
#3
-------------
Fig.8.2
