Pit Boss PBV2G1 User Manual

10
7

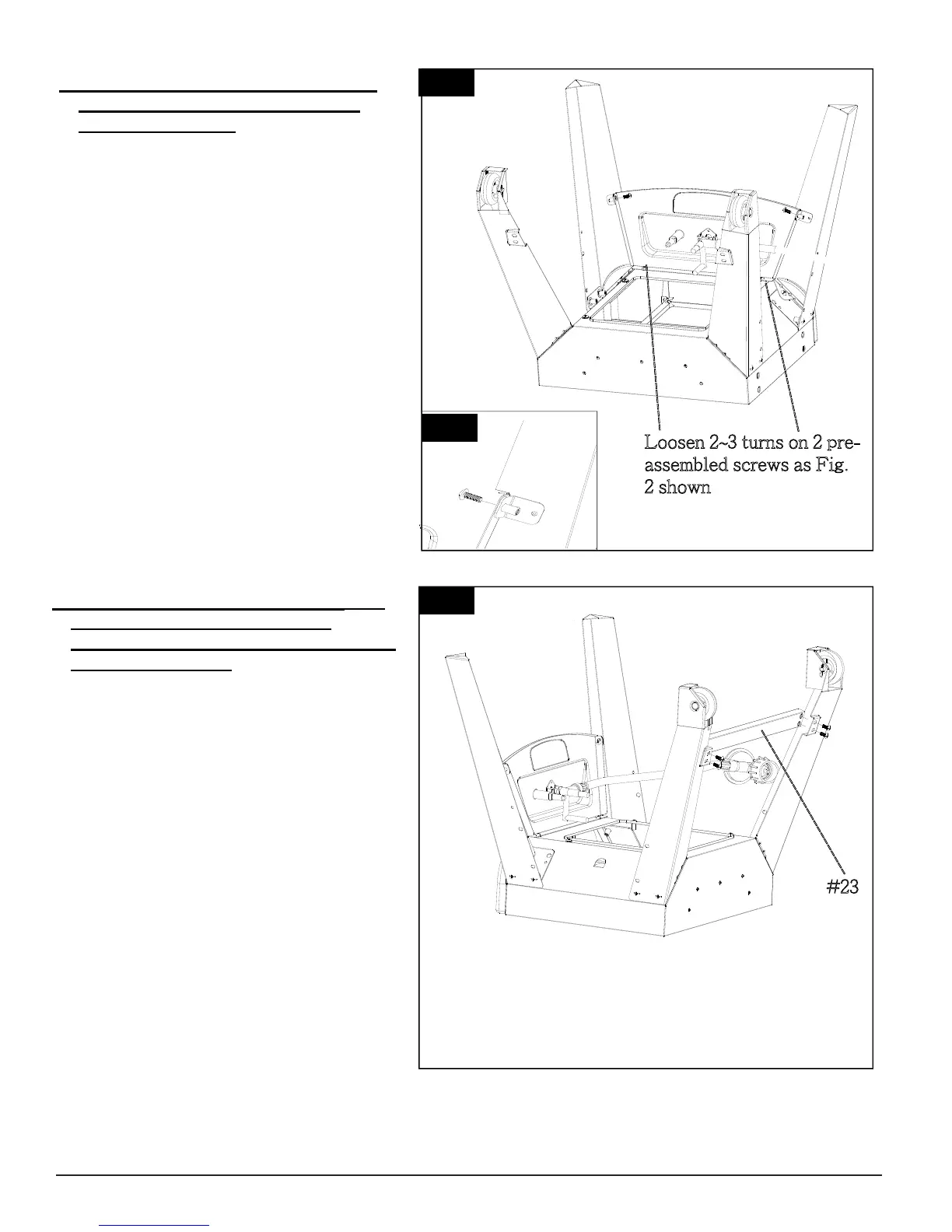

2.
MOUNTING BOTH FRONT LEGS TO
LOWER CABINET WITH CONTROL
PANEL ASSEMBLY
Parts Required:
1 x Lower Smoker Cabinet with
Control Panel Assembly (#14)
1 x Right Front Leg (#22)
1 x Left Front Leg (#21)
2 x #10-24*1/2”Screw (#C)
Installation:
• Loosen 2~3 turns on 2 screws which were
pre-assembled on the Control Panel to
Cabinet before, mount Right Front Leg (#22)
and Left Front Leg (#21) to the Control Panel
Assembly (#14) using 2 x #10-24*1/2”Screws
(#C) and re-tighten 2 screws on the Control
Panel to the bottom of Cabinet as Fig.2 &
Fig.2.1 shown.
Fig.2
3.
MOUNTING BACK SUPPORT TUBE TO
RIGHT REAR LEG WITH WHEEL
ASSEMBLY AND LEFT REAR LEG WITH
WHEEL ASSEMBLY
Parts Required:
1 x Back Support Tube (#23)
1 x Right Rear Leg with Wheel Assembly (#18)
1 x Left Rear Leg with Wheel Assembly (#20)
4 x #10-24*1/2”Screw (#C)
Installation:
• Mount Back Support Tube (#23) to the Right
Rear Leg with Wheel Assembly (#18) and Left
Rear Leg with Wheel Assembly (#20)using 4 x
#10-24*1/2”Screws (#C)as Fig.3 shown.
Fig.3
Fig.2.1
Loosen 2~3 turns on 2 pre-
assembled screws as Fig.
2
shown
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
---
----
---
-
-
-
-
-
--
---
--
#23
--
-
-
--
--
--
--
---
-
---
--
-
-
-
