Pit Boss PBV3A1 - Attaching Door Assembly; Inserting Heat Indicator into Door Assembly; Mounting Door Latch Assembly

14
13
13.

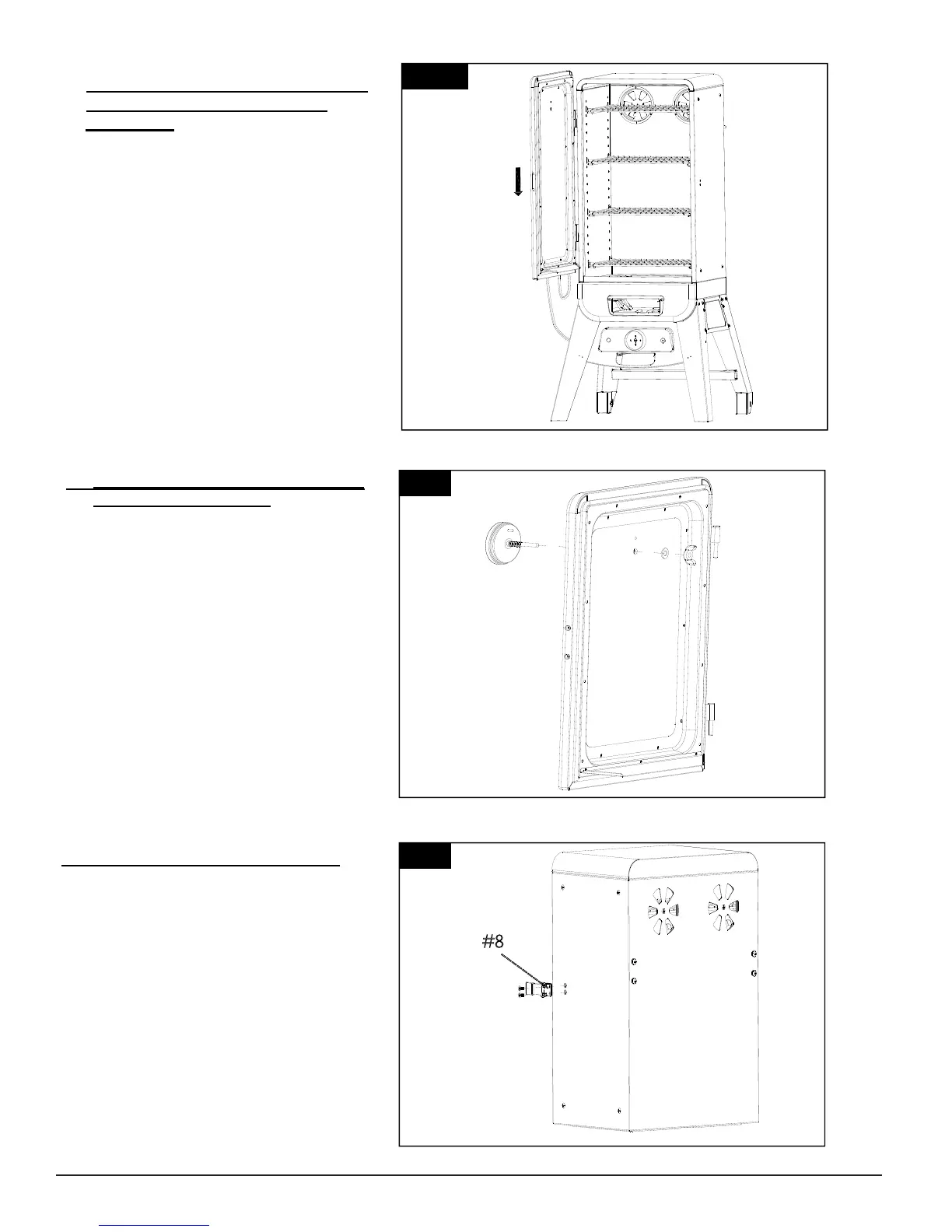

ATTACHING DOOR ASSEMBLY INTO
THE UPPER SMOKER CABINET
ASSEMBLY
Parts Required:
1 x Door Assembly (#7)
1 X Upper Smoker Cabinet Assembly (#2)
Installation:
•Attach Door Assembly (#7)into the Upper
Smoker Cabinet Assembly(#2)as Fig.13
shown.
14.
INSERTING HEAT INDICATOR INTO
THE DOOR ASSEMBLY
Parts Required:
1 x Door Assembly (#7)
1 X Heat Indicator (#6)
Note: The Heat Indicator is supplied with
one fiber washer and one wing nut.
Installation:
•Insert Heat Indicator (#6)probe through the
mounting hole in the front of the Door
Assembly(#7). From the inside of the door,
place fiber washer and wing nut onto the
mounting thread pole and tighten by hand
as Fig.14 shown..
Fig.14
Fig.13
#6
---------
Fig.15
#8
-
-
-
-
-
-
-
-
-
15.
MOUNTING DOOR LATCH ASSEMBLY
TO THE UPPER SMOKER CABINET
ASSEMBLY
Parts Required:
1 x Door Latch Assembly (#8)
1 X Upper Smoker Cabinet Assembly (#2)
2 x #10-24*1/2”(#C)
Installation:
•Attach the Door Latch Assembly (#8) to the
Upper Smoker Cabinet Assembly
(#2)using 2 x #10-24*1/2”(#C)as Fig.15
shown.
