MOUNTING DOOR HANDLE TO THE
DOOR ASSEMBLY
Parts Required:
1 x Door Handle (#9)
1 X Door Assembly (#7)
2 x #10-24*1/2”(#C)
Installation:
• Attach the Door Handle (#9) to the
Door Assembly (#7) using 2
x #10-24*1/2” (#C) as Fig.16 shown.
17.
MOUNTING WOOD CHIPS BOX HANDLE
ONTO WOOD CHIPS BOX AND SLIDING
WOOD CHIPS BOX WITH LID ASSEMBLY
INTO THE LOWER SMOKER CABINET
ASSEMBLY
Parts Required:
1 x Wood Chip Box Lid (#10)
1 x Wood Chip Box Assembly (#11)
1 X Lower Smoker Cabinet Assembly (#14)
Installation:
• Put the Wood Chip Box Lid (#10) on the
Wood Chip Chip Box Assembly (#11) and slide
Wood Chip Box onto the Wood Chip Box
support rails of Lower Smoker Cabinet
Assembly (#14) as Fig.17.1 Fig. 17.2 shown.
Note: When removing the Wood Chip Box
from the smoker, lift up on the handle and
pull out the Wood Chip Box.

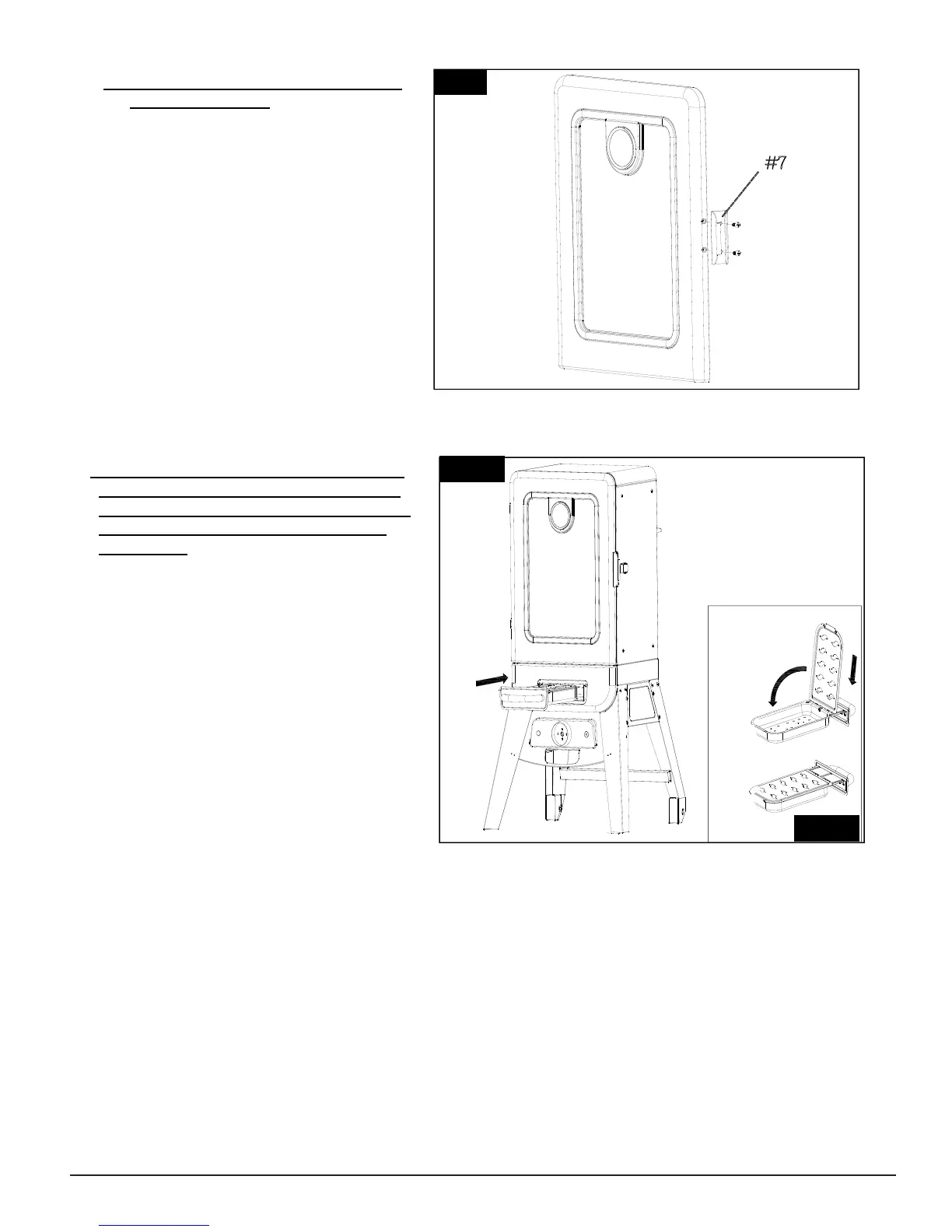

Fig.16
#7
-
-
-
-
-
-
-
-
-
Fig.17.1
Fig.17.2
#11
-----------
