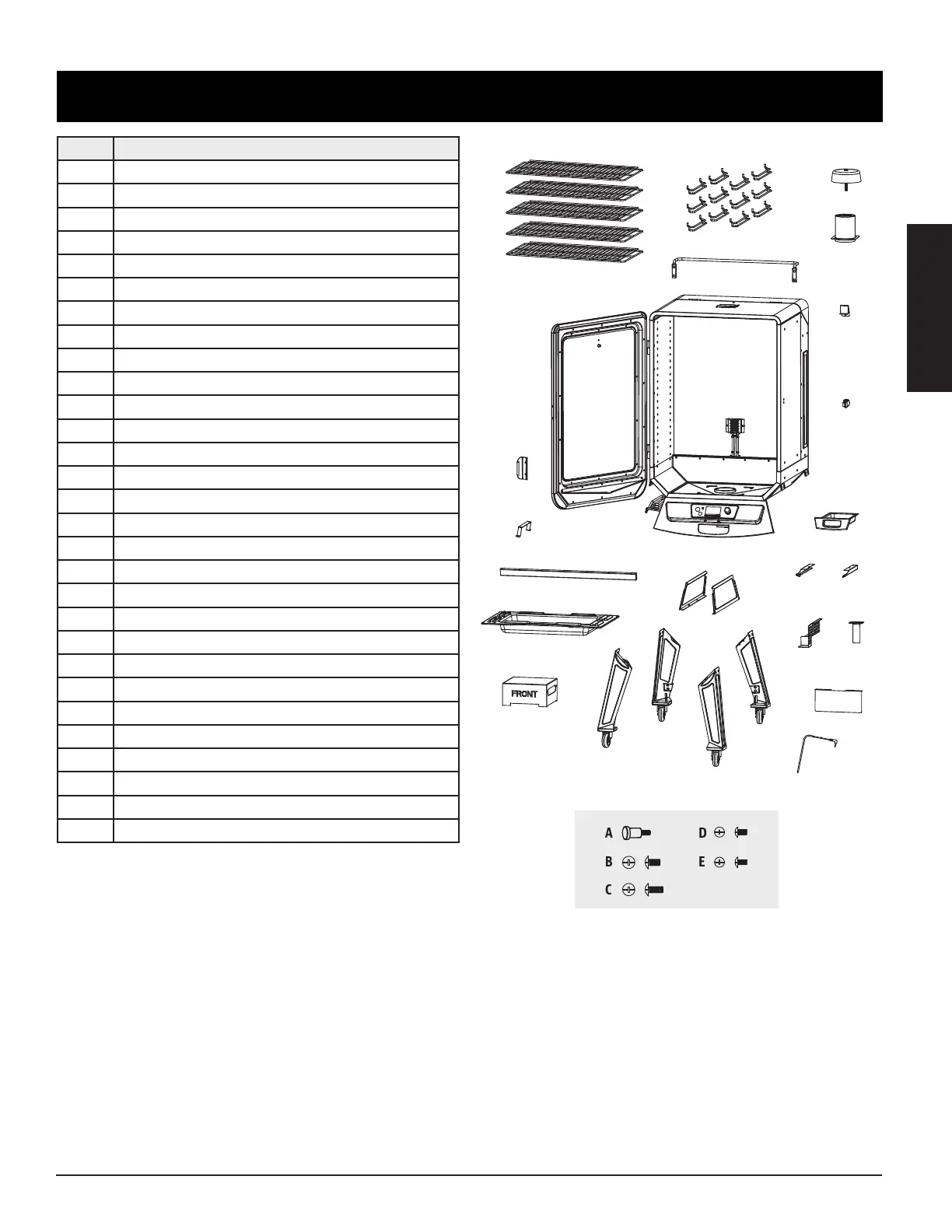

Pit Boss PBV5CS - SMOKER REPLACEMENT PARTS; Smoker Component Identification

ENGLISH
21
  
Part Description
1 Cooking Grids (x5)
2 Cooking Grid Support Brackets (x12)
3 Chimney Cap (x1)
4 Chimney Stack (x1)
5 Back Handle (x1)
6 Lid Stopper (x1)
7 Main Cabinet (x1)
8 Cabinet Door Handle (x1)
9 Cabinet Door Latch (x1)
10 Power Cord Bracket (x1)
11 Support Bar (x1)
12 Water Pan (x1)
13 Flame Tamer (x1)
14 Grease Tray (x1)
15 Grease Tray Brackets (x2)
16 Support Panel (x2)
17 Wire Components Housing (x1)
18 Grease Exhaust Tube (x1)
19 Heat Shield (x1)
20 Meat Probe (x1)
21 Front Support Leg - Left (x1)
22 Back Support Leg - Left (x1)
23 Front Support Leg - Right (x1)
24 Back Support Leg - Right (x1)
A Door Knob (x1)
B ¼–20x½" Screw (x12)
C ¼–20x⅝" Screw (x4)
D #10–24x½" Screw (x34)
E #10–24x⅓" Screw (x2)
NOTE: Due to ongoing product development, parts are subject to change without notice.
1
2
5
3
4
9
10
11
13
17
18
19
20
21
22
23
24
15
16
14
7
8
6
12
