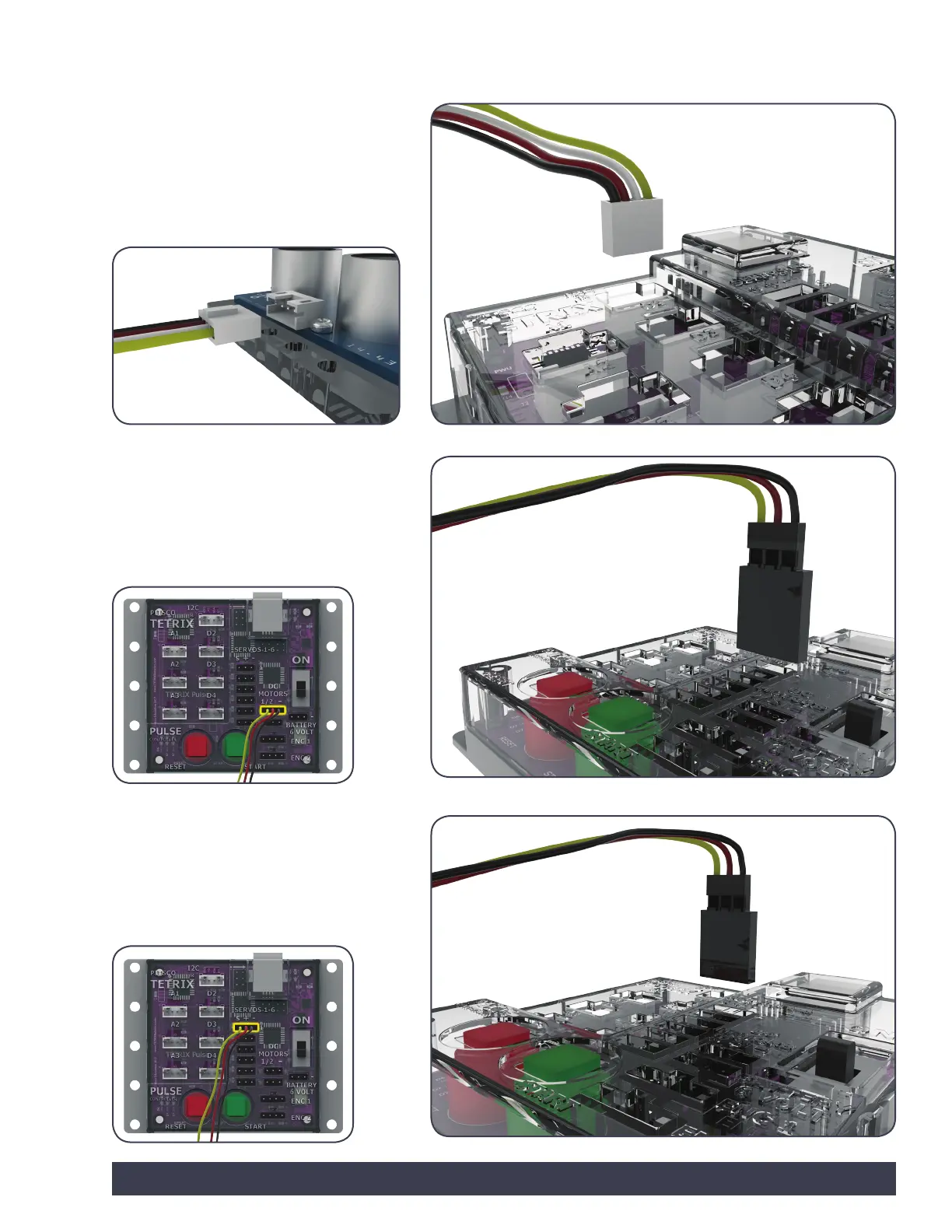

Attaching the Sensors:
To connect a sensor to the PULSE, plug the
end of the sensor wire into ports labeled
D2-D4 for digital sensors, A1-A3 for analog
sensors, or I2C for I2C components.
Attaching the DC Motors:
To connect a DC motor to the PULSE, plug
the end of the DC motor wire into one of
the two DC motor ports.
Important: The black wire end must be
closest to the minus sign on the controller.
Attaching the Servo Motors:
To connect a standard servo motor to the
PULSE, plug the end of the servo motor wire
into one of the servo ports
Important: The black wire end must be
closest to the minus sign on the controller.
PULSE Setup
Getting Started 7
