9. mixer module

9.1 mixer overview

Perfect for audio or control voltages, the mixer module is a pair of 2 channel

mixers joined together. In normal operation, channels 1, 2, 3, and 4 combine to

work as a singe 4 channel mixer. However, patching into the [channel 1 & 2 mix

output jack] splits the mixer into two independent 2 channel mixers. Channel 1

and Channel 2 are sent to the [channel 1 & 2 mix output jack] and channel 3 and

channel 4 are sent to the [mix output jack].

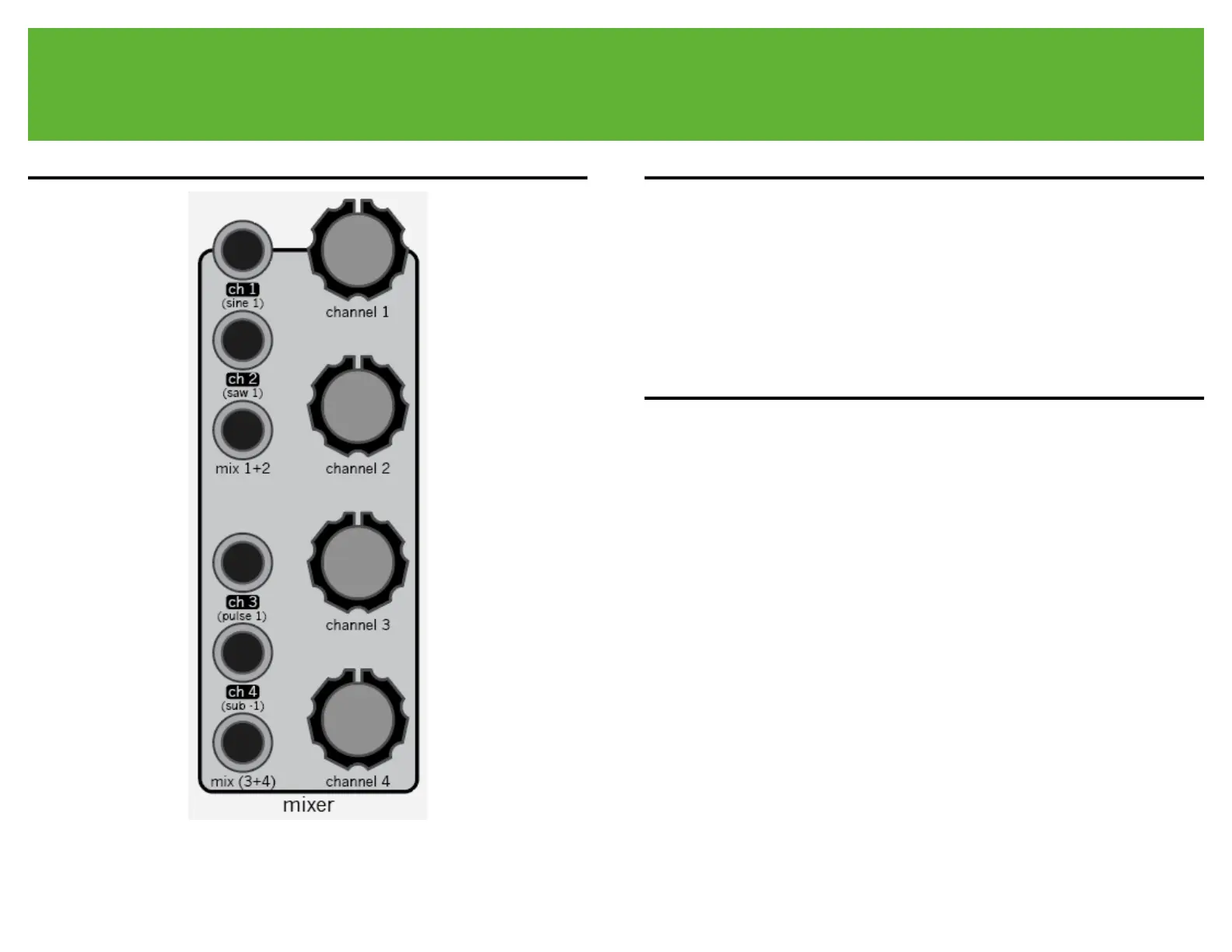

9.2

mixer interface

[channel 1 input jack] - Channel 1 audio or cv input jack. "

[channel 1 input attenuator] - Channel 1 input attenuator."

[channel 2 input jack] - Channel 2 audio or cv input jack."

[channel 2 input attenuator] - channel 2 input attenuator."

[channel 1 & 2 mix output jack] - channel 1 & channel 2 output mix jack."

[channel 3 input jack] - channel 3 audio or cv input jack."

[channel 3 input attenuator] - channel 3 input attenuator."

[channel 4 input jack] - channel 4 audio or cv input jack."

[channel 4 input attenuator] - channel 4 input attenuator."

[mix output jack] - output mix jack.
