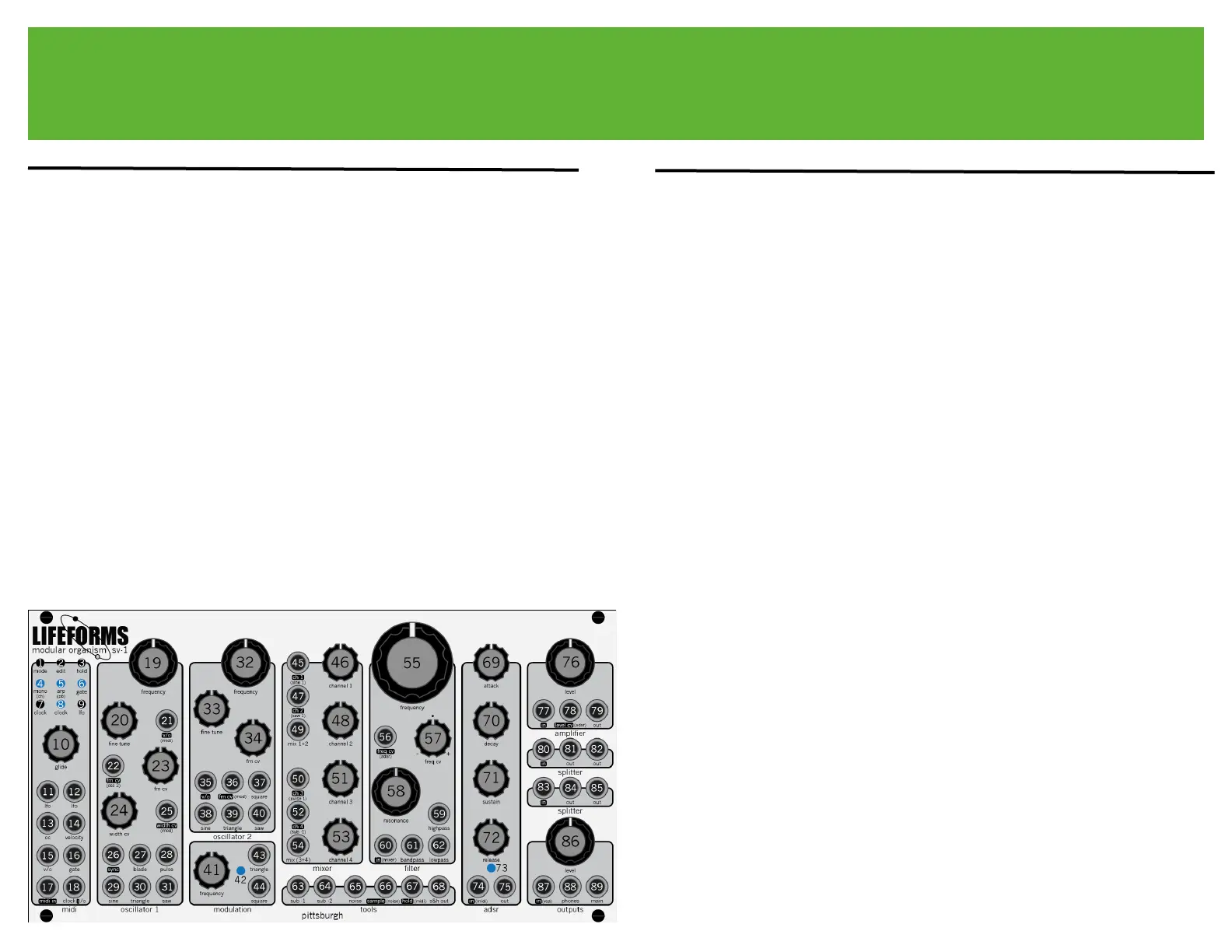

Pittsburgh Modular lifeforms sv-1 - User Interface

midi module
1. mode button - switch between midi responses. "
2. edit button - modify selected mode."
3. hold button - enable/disable hold mode."
4. mono led - indicates monophonic midi mode selected."
5. arp led - indicates arpeggiator midi mode selected."
6. gate led - midi note on/off gate output jack."
7. clock button - tap clock tempo button."
8. clock led - clock output indicator."
9. lfo button - switch between digital lfo waveforms."
10. glide knob - midi note portamento control."
11. lfo output jack - digital lfo output."
12. lfo output jack - digital lfo output."
13. cc output jack - assignable midi cc output."
14. velocity output jack - midi velocity output."
15. v/o output jack - midi note pitch 1 volt per octave jack."
16. gate output jack - midi note on/off gate jack."
17. midi in input jack - custom jack for included 1/8” to midi cable."
18. clock i/o input or output jack - clock input or output jack.
oscillator 1 module
19. oscillator 1 frequency knob - coarse frequency control."
20. oscillator 1 fine tune knob - fine frequency control."
21. oscillator 1 v/o input jack - 1 volt per octave pitch tracking input. "
22. oscillator 1 fm input jack - exponential fm input jack."
23. oscillator 1 fm input attenuator - fm input level control."
24. oscillator 1 width cv attenuator - blade & pulse width input level control."
25. oscillator 1 width cv input jack - blade & pulse width modulation input."
26. oscillator 1 sync input jack - oscillator sync input jack."
27. oscillator 1 blade output jack - blade wave output jack."
28. oscillator 1 pulse output jack - pulse wave output jack."
29. oscillator 1 sine output jack - sine wave output jack."
30. oscillator 1 triangle output jack - triangle wave output jack."
31. oscillator 1 saw output jack - saw wave output jack."
oscillator 2 module
32. oscillator 2 frequency knob - coarse frequency control."
33. oscillator 2 fine tune knob - fine frequency control."
34. oscillator 2 fm input attenuator - fm input level control."
35. oscillator 2 v/o input jack - 1 volt per octave pitch tracking input."
36. oscillator 2 fm input jack - exponential fm input jack."
37. oscillator 2 square output jack - square wave output jack."
38. oscillator 2 sine output jack - sine wave output jack."
39. oscillator 2 triangle output jack - triangle wave output jack."
40. oscillator 2 saw output jack - saw wave output jack."
modulation module
41. modulation lfo frequency knob - coarse frequency control."
42. modulation lfo led - lfo frequency indicator."
43. modulation lfo triangle output jack - triangle wave output jack."
44. modulation lfo square output jack - square wave output jack.
2. user interface
4
