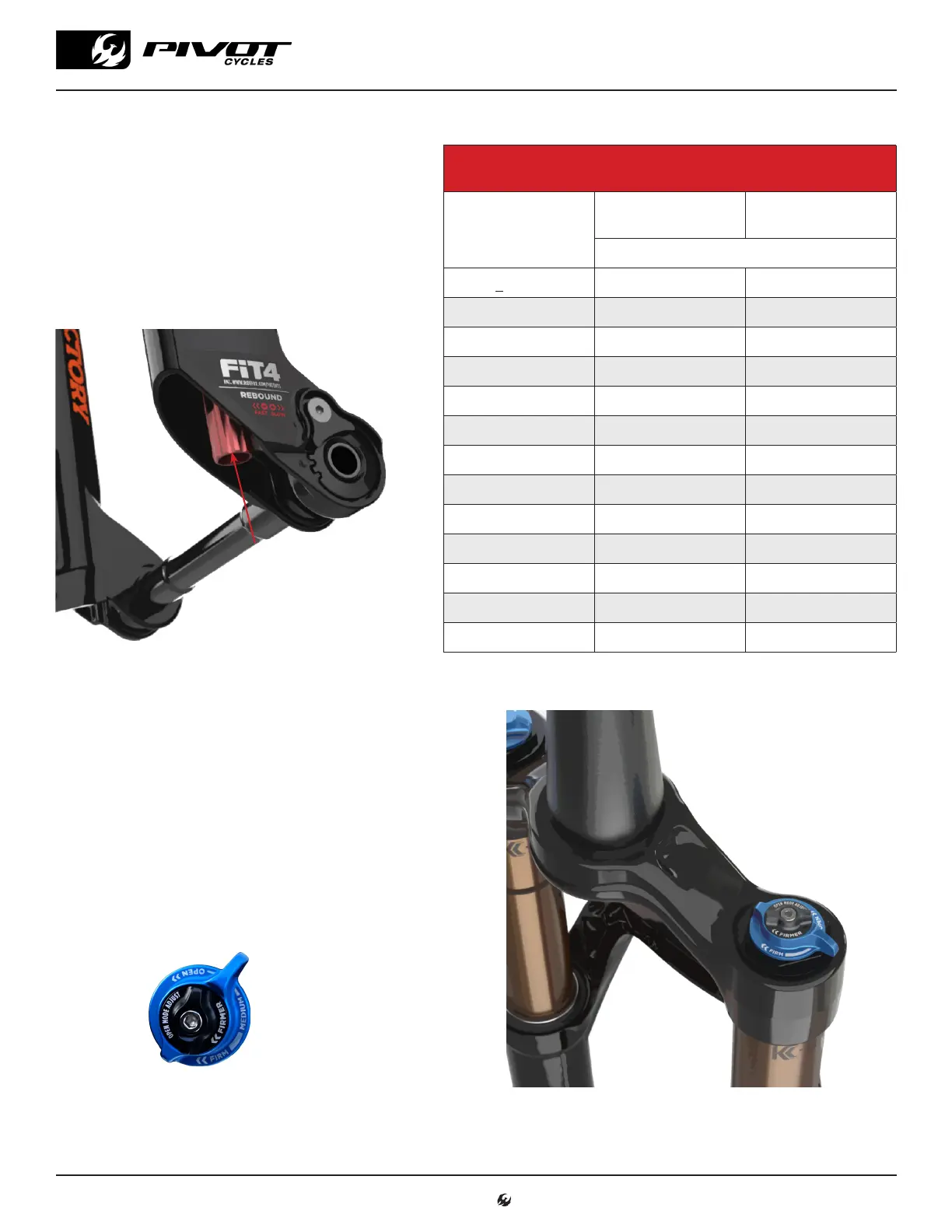

FIT4 Damping Adjustment on FOX Float Air Fork
Rebound Damping
Rebound setting is dependent on air pressure. For example,
higher air pressures require slower rebound setting. This
adjustment is a red knob found on the bottom of the
drive side fork leg. We set rebound from the most open
or fastest position. Refer to the table for the suggested
rebound setting. The number in the chart refers to
how many clicks clockwise from the open setting the
rebound should be set. Fox sets rebound from the closed
position, so that has been provided in parentheses.
FIT4 Compression Knob
& Open Mode Adjust
FIT4 Damper Rebound Settings
Fork Air Pressure
32 SC*/34/34SC*
*Step Cast models
32/36
Clicks from OPEN* (Clicks from CLOSED)*
<65 psi 2 (12) Open (14)
63-70 psi 3 (11) 1 (13)
68-74 psi 4 (10) 2 (12)
72-80 psi 4 (10) 3 (11)
77-85 psi 5 (9) 5 (9)
82-90 psi 6 (8) 6 (8)
86-96 psi 6 (8) 7 (7)
91-101 psi 7 (7) 8 (6)
96-106 psi 8 (6) 9 (5)
100-111 psi 10 (4) 10 (4)
105-117 psi 11 (3) 11 (3)
110-122 psi 12 (2) 12 (2)
114-126 psi 13 (1) 13 (1)
Rebound
Adjustment
Compression Damping
The Fit 4 damper features a blue 3 position compression
adjustment lever. These settings are open, medium,
and firm. The black inner dial adjusts the low speed
compression damping that affects the firmness of
the suspension (compression damping) in the fully
open position. We set compression from the most
open or fastest position, so start by turning the black
compression inner dial counterclockwise all the way out.
Turn black dial clockwise in 2-8 clicks in (depending on
rider weight). Most riders should feel comfortable with
5 clicks in as a starting point. A rider under 120lb. would
start with 2 clicks in.
*see page 2
www.pivotcycles.com 1.877.857.4868
SUSPENSION SETUP GUIDE
