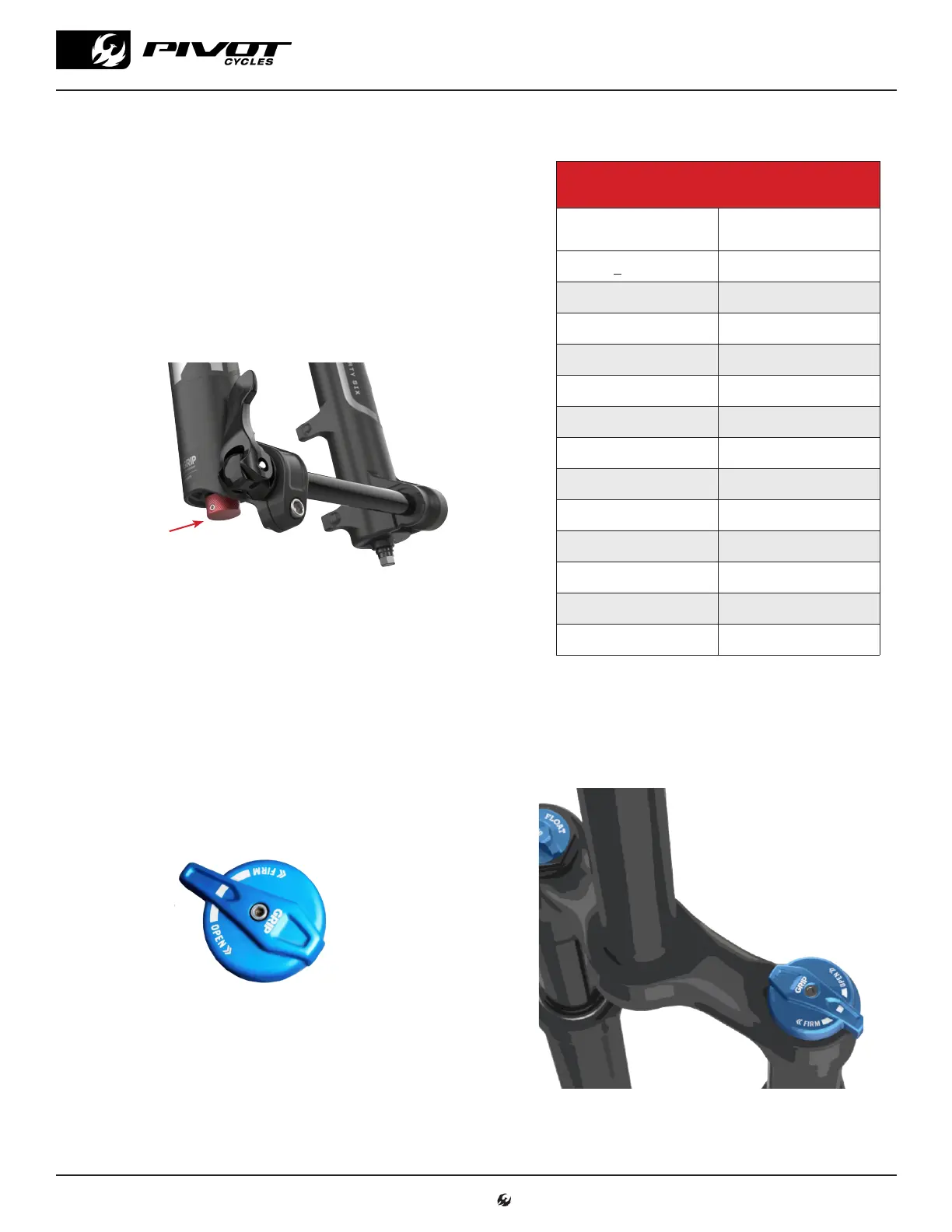

GRIP Damping Adjustment on FOX Float Air Fork
Rebound Damping
Rebound setting is dependent on air pressure. For example, higher air
pressures require slower rebound setting. This adjustment is a red knob
found on the bottom of the drive side fork leg. We set rebound from
the most open or fastest position. Refer to the table for the suggested
rebound setting. The number in the chart refers to how many clicks
clockwise from the open setting the rebound should be set. Fox
sets rebound from the closed position, so that has been provided in
parentheses.
Rebound Adjustment
GRIP Damper Rebound Settings
Fork Air Pressure
Clicks from OPEN*
(Clicks from CLOSED)*
<72 psi 1 (13)
63-76 psi 2 (12)
72-84 psi 3 (11)
72-84 psi 4 (10)
77-89 psi 5 (9)
82-93 psi 6 (8)
86-97 psi 7 (7)
91-102 psi 8 (6)
96-106 psi 9 (5)
100-111 psi 10 (4)
105-117 psi 11 (3)
110-122 psi 12 (2)
114-126 psi 13 (1)
GRIP Compression Knob
Compression Damping
We always start with the lever in the full open position. Most riders
will not need to make any changes from this position. However, if you
do need more compression support, the lever will provide a low speed
compression adjustment . Fully closed provides a nearly locked out feel
for climbing.
www.pivotcycles.com 1.877.857.4868
SUSPENSION SETUP GUIDE
*see page 2
To Next Page
