Damping Adjustment on FOX DHX2
The DHX2 shock has tuning options well beyond the scope of what we can cover here. Not only can the shock be tuned through the use of
the HSC, LSC, HSR, and LSR knobs, but it can also run different spring rates.
We recommend 30% sag on the DHX2. Based on your spring rate to achieve proper sag, refer to FOX’s tuning chart copied below to set
your High Speed Compression damping (HSC), Low Speed Compression damping (LSC), High Speed Rebound damping (HSR), and Low
Speed Rebound damping (LSR). The numbers in the chart refers to how many clicks clockwise from the open setting the dials should be
set. Fox sets up shocks from the closed position, so that has been provided in parentheses.

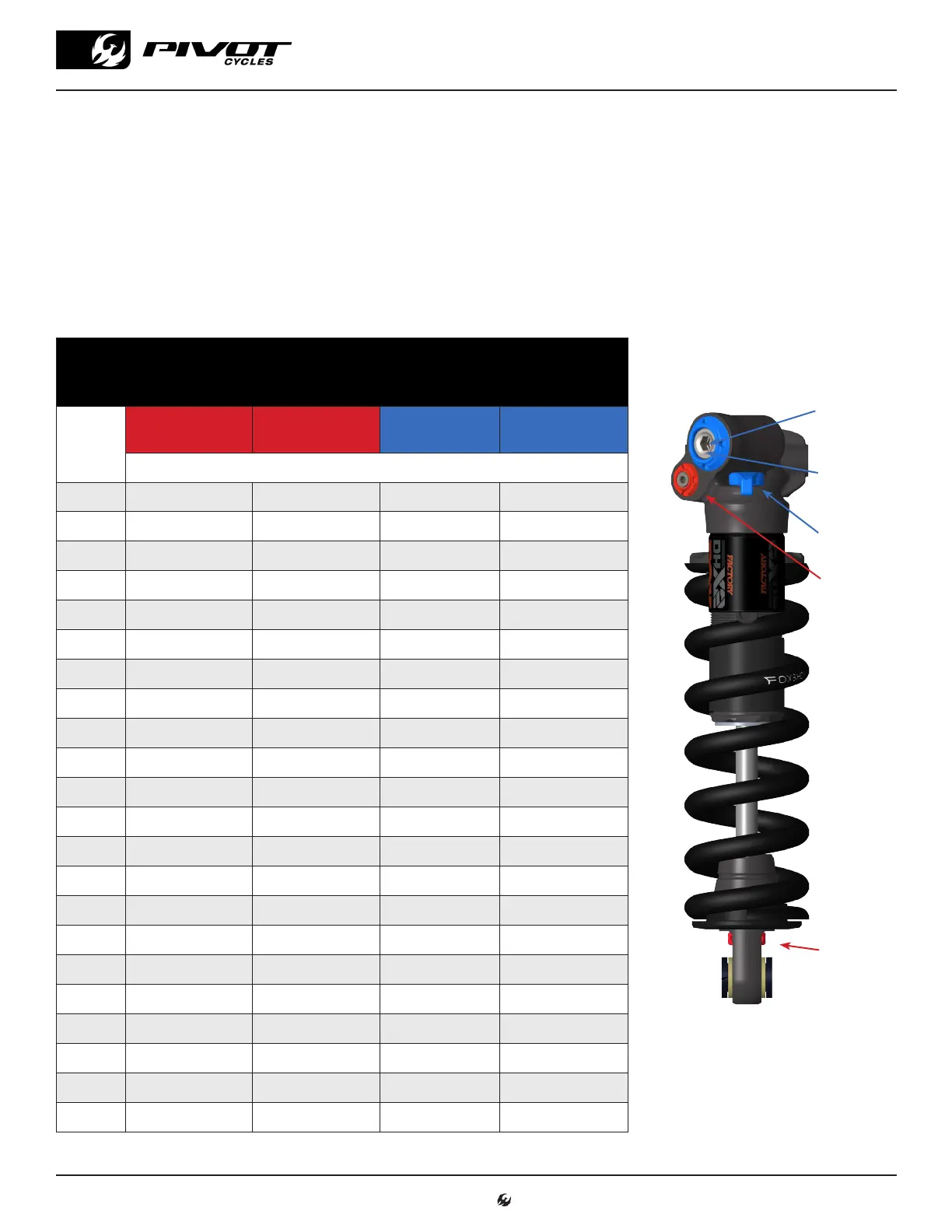

The diagram to the right shows the locations of each adjustment knob on the DHX2 shock.
High Speed
Rebound
(2mm Hex)
Low Speed
Rebound
(3mm Hex)
High Speed
Compression
(6mm Hex)
2 Position
Lever
Low Speed
Compression
(3mm Hex)
SUGGESTED SETTINGS
FOX FLOAT DHX2
Spring
Rate
Baseline LSR
(3mm hex))
Baseline HSR
(2mm hex)
Baseline LSC
(3mm hex)
Baseline HSC
(6mm hex)
Clicks from OPEN* (Clicks from CLOSED)*
200 2-4 (16-18) OPEN-1 (7-8) OPEN-2 (16-18) OPEN-1 (7-8)
225 3-5 (15-17) OPEN-1 (7-8) OPEN-2 (16-18) OPEN-1 (7-8)
250 4-6 (14-16) 1-2 (6-7) 1-3 (15-17) OPEN-1 (7-8)
275 5-7 (13-15) 1-2 (6-7) 1-3 (15-17) OPEN-1 (7-8)
300 6-8 (12-14) 2-3 (5-6) 2-4 (14-16) 1-2 (6-7)
325 7-9 (11-13) 2-3 (5-6) 2-4 (14-16) 1-2 (6-7)
350 8-10 (10-12) 2-3 (5-6) 3-5 (13-15) 1-2 (6-7)
375 9-11 (9-11) 3-4 (4-5) 3-5 (13-15) 1-2 (6-7)
400 10-12 (8-10) 3-4 (4-5) 4-6 (12-14) 2-3 (5-6)
425 11-13 (7-9) 3-4 (4-5) 5-7 (11-13) 2-3 (5-6)
450 11-13 (7-9) 4-5 (3-4) 6-8 (10-12) 2-3 (5-6)
475 12-14 (6-8) 4-5 (3-4) 7-9 (9-11) 3-4 (4-5)
500 12-14 (6-8) 4-5 (3-4) 8-10 (8-10) 3-4 (4-5)
525 13-15 (5-7)
5-6 (2-3) 9-11 (7-9) 3-4 (4-5)
550 14-16 (4-6) 5-6 (2-3) 10-12 (6-8) 3-4 (4-5)
575 15-17 (3-5) 5-6 (2-3) 11-13 (5-7) 4-5 (3-4)
600 16-18 (2-4) 5-6 (2-3) 12-14 (4-6) 4-5 (3-4)
625 16-18 (2-4) 6-7 (1-2) 14-16 (2-4) 4-5 (3-4)
650 17-19 (1-3) 6-7 (1-2) 14-16 (2-4) 4-5 (3-4)
675 17-19 (1-3) 6-7 (1-2) 14-16 (2-4) 5-6 (2-3)
700 17-19 (1-3) 7-8 (0-1) 15-17 (1-3) 5-6 (2-3)
725 18-19 (1-2) 7-8 (0-1) 15-17 (1-3) 5-6 (2-3)
www.pivotcycles.com 1.877.857.4868
SUSPENSION SETUP GUIDE
*see page 2
